当互联网遇上AI存储革命：3FS+鲲鹏，如何打造高性能数据引擎？ ——记3FS存储引擎在华为鲲鹏平台的适配与实践
发表于 2025/05/06
0
作者：彭润霖 包旻晨
一、部署环境
1.1 节点信息
|
Node |
IP |
Memory |
NVMe SSD |
RDMA |
OS |
|
meta |
192.168.65.10 |
256GB |
- |
100GE ConnectX-6 |
OpenEuler 22.03 SP4 |
|
fuseclient1 |
192.168.65.11 |
256GB |
- |
100GE ConnectX-6 |
OpenEuler 22.03 SP4 |
|
fuseclient2 |
192.168.65.12 |
256GB |
- |
100GE ConnectX-6 |
OpenEuler 22.03 SP4 |
|
fuseclient3 |
192.168.65.13 |
256GB |
- |
100GE ConnectX-6 |
OpenEuler 22.03 SP4 |
|
storage1 |
192.168.65.14 |
1TB |
3TB*8 |
100GE ConnectX-6 |
OpenEuler 22.03 SP4 |
|
storage2 |
192.168.65.15 |
1TB |
3TB*8 |
100GE ConnectX-6 |
OpenEuler 22.03 SP4 |
|
storage3 |
192.168.65.16 |
1TB |
3TB*8 |
100GE ConnectX-6 |
OpenEuler 22.03 SP4 |
1.2 服务信息
|
Service |
Binary |
Config files |
NodeID |
Node |
|
monitor |
monitor_collector_main |
monitor_collector_main.toml |
- |
meta |
|
admin_cli |
admin_cli |
admin_cli.toml fdb.cluster |
- |
meta storage1 storage2 storage3 |
|
mgmtd |
mgmtd_main |
mgmtd_main_launcher.toml mgmtd_main.toml mgmtd_main_app.toml fdb.cluster |
1 |
meta |
|
meta |
meta_main |
meta_main_launcher.toml meta_main.toml meta_main_app.toml fdb.cluster |
100 |
meta |
|
storage |
storage_main |
storage_main_launcher.toml storage_main.toml storage_main_app.toml |
10001~10003 |
storage1 storage2 storage3 |
|
client |
hf3fs_fuse_main |
hf3fs_fuse_main_launcher.toml hf3fs_fuse_main.toml |
- |
meta |
二、环境准备
2.1 关闭防火墙与设置seliunx模式
**注意：在所有节点进行操作**

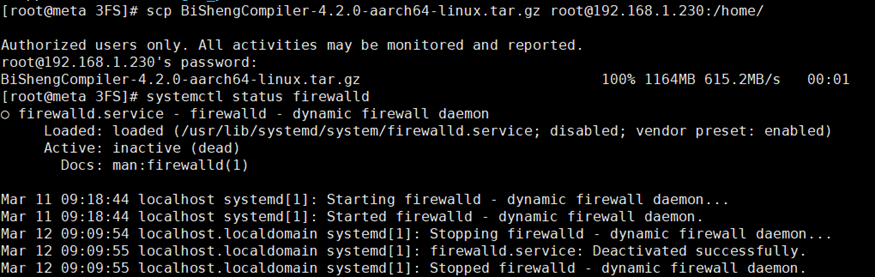

关闭防火墙
systemctl stop firewalld
systemctl disable
firewalld
systemctl status
firewalld

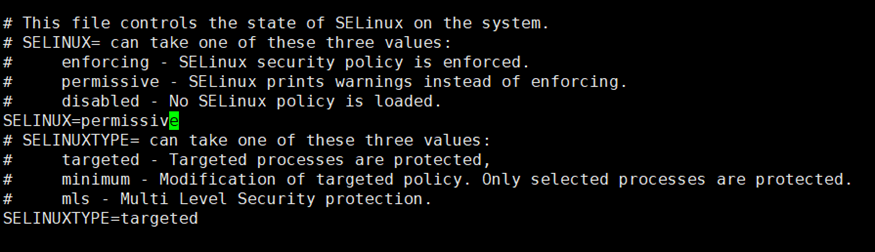

设置selinux为permissive模式
vi /etc/selinux/config
SELINUX=permissive
2.2 设置Hosts
**注意：在所有节点进行操作**
将 meta 对应的 ip 填入每个节点的 /etc/hosts
vi /etc/hosts
192.168.65.10 meta
2.3 集群时间同步
**注意：在所有节点进行操作**
yum install -y ntp ntpdate
在所有节点备份旧配置
cd /etc && mv ntp.conf ntp.conf.bak
**注意：在META节点进行操作**
vi /etc/ntp.conf
restrict 127.0.0.1
restrict ::1
restrict 192.168.65.10
mask 255.255.255.0
server 127.127.1.0
fudge 127.127.1.0 stratum
8
# Hosts on local network are less restricted.
restrict 192.168.65.10
mask 255.255.255.0 nomodify notrap

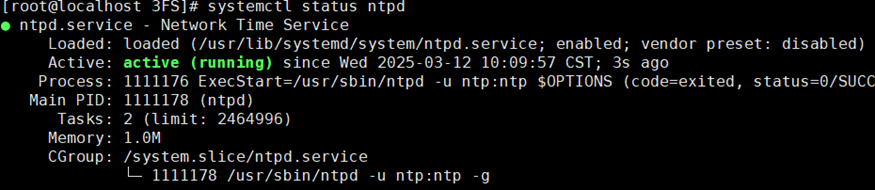

开启ntpd服务
systemctl start ntpd
systemctl enable ntpd
systemctl status ntpd
**注意：在除META外的节点进行操作**
vi /etc/ntp.conf
server 192.168.65.10
在除 meta的所有节点强制同步server时间。这里需要等待5min，否则会报错（no server suitable for synchronization found）
ntpdate meta
在除 meta的所有节点写入硬件时钟，避免重启后失效
hwclock -w
安装并启动crontab工具。
yum install -y
crontabs
chkconfig crond on
systemctl start crond
crontab -e
每隔10分钟与meta节点同步一次时间
*/10 * * * * /usr/sbin/ntpdate 192.168.65.10
三、编译3FS
3.1 构建编译环境
这里我们选择meta节点作为编译节点
① 安装编译所需的依赖
**注意：在所有节点进行操作**
# for openEuler
yum install cmake
libuv-devel lz4-devel xz-devel double-conversion-devel libdwarf libdwarf-devel
libunwind libunwind-devel libaio-devel gflags-devel glog glog-devel gtest-devel
gmock-devel gperftools-devel gperftools openssl-devel gcc gcc-c++ boost* libatomic autoconf
libevent-devel libibverbs libibverbs-devel cargo numactl-devel lld
gperftools-devel gperftools double-conversion libibverbs rsync gperftools-libs
glibc-devel python3-devel meson vim jemalloc -y
② 安装Rust
**注意：在META节点进行操作**
前往Rust官网下载aarch64架构对应的压缩包，并上传到服务器进行解压。
如果你的服务器可以直接连接Rust官网，可以通过wget命令获取对应的压缩包。
wget https://static.rust-lang.org/dist/rust-1.85.0-aarch64-unknown-linux-gnu.tar.xz
tar -xvf rust-1.85.0-aarch64-unknown-linux-gnu.tar.xz
cd rust-1.85.0-aarch64-unknown-linux-gnu
sh install.sh
③ 安装foundationdb
**注意：在META节点进行操作**前往foundationdb/Github代码仓获取foundationdb安装包，并上传到服务器进行安装。
如果你的服务器可以直接链接GitHub，可以通过wget或者yum命令安装对应的安装包。
# 通过wget下载
wget https://github.com/apple/foundationdb/releases/download/7.3.63/foundationdb-clients-7.3.63-1.el9.aarch64.rpm
wget https://github.com/apple/foundationdb/releases/download/7.3.63/foundationdb-server-7.3.63-1.el9.aarch64.rpm
rpm -ivh foundationdb-clients-7.3.63-1.el9.aarch64.rpm
rpm -ivh foundationdb-server-7.3.63-1.el9.aarch64.rpm
# 或者通过yum下载
yum install https://github.com/apple/foundationdb/releases/download/7.3.63/foundationdb-clients-7.3.63-1.el9.aarch64.rpm -y
yum install https://github.com/apple/foundationdb/releases/download/7.3.63/foundationdb-server-7.3.63-1.el9.aarch64.rpm -y
④ 安装毕昇编译器
**注意：在META节点进行操作**1. 可以前往毕昇编译器官网下载4.2.0版本编译器压缩包，上传到服务器进行解压。
或者通过wget命令直接获取对应的压缩包:
cd /home
wget https://mirrors.huaweicloud.com/kunpeng/archive/compiler/bisheng_compiler/BiShengCompiler-4.2.0-aarch64-linux.tar.gz
tar -xvf BiShengCompiler-4.2.0-aarch64-linux.tar.gz
2. 临时配置环境变量:
export PATH=/home/BiShengCompiler-4.2.0-aarch64-linux/bin:$PATH
3. 查看编译器版本:
clang -v
BiSheng Enterprise 4.2.0.B009 clang version 17.0.6 (958fd14d28f0)
Target: aarch64-unknown-linux-gnu
Thread model: posix
InstalledDir: /home/BiShengCompiler-4.2.0-aarch64-linux/bin
Found candidate GCC installation: /usr/lib/gcc/aarch64-linux-gnu/10.3.1
Selected GCC installation: /usr/lib/gcc/aarch64-linux-gnu/10.3.1
Candidate multilib: .;@m64
Selected multilib: .;@m64
⑤安装libfuse
**注意：在META节点和Client节点进行操作**Release libfuse 3.16.1 · libfuse/libfuse · GitHub
# 下载包
cd /home
wget https://github.com/libfuse/libfuse/releases/download/fuse-3.16.1/fuse-3.16.1.tar.gz
# 解压包
tar vzxf fuse-3.16.1.tar.gz
cd fuse-3.16.1
mkdir build
cd build
yum install -y meson
meson setup ..
ninja
ninja install
3.2 获取源码及编译
**注意：在META节点进行操作**export LD_LIBRARY_PATH=/usr/local/lib64:/usr/local/lib:/usr/local:/usr/lib:/usr/lib64:$LD_LIBRARY_PATH
yum install git -y
cd /home
git clone https://gitee.com/kunpeng_compute/3FS.git
cd 3FS
git checkout origin/openeuler
git submodule update --init --recursive
./patches/apply.sh
cmake -S . -B build -DCMAKE_CXX_COMPILER=clang++ -DCMAKE_C_COMPILER=clang -DCMAKE_BUILD_TYPE=RelWithDebInfo -DCMAKE_EXPORT_COMPILE_COMMANDS=ON
cmake --build build -j
检查编辑结果
cd build/bin
ll
四、部署3FS
4.1 Meta节点
① 安装ClickHouse
**注意：在META节点进行操作**1. 获取安装包并安装
cd /home
curl -k https://clickhouse.com/ | sh
sudo ./clickhouse install
安装完成时会让我们输入密码，假设我们输入的密码为clickhouse123
2. 修改ClickHouse默认端口：
chmod 660 /etc/clickhouse-server/config.xml
vim /etc/clickhouse-server/config.xml
定位到<tcp_port>标签 将端口号修改为9123:
...
<tcp_port>9123</tcp_port>
...
3. 启动clickhouse
clickhouse start
4. 创建Metric table
clickhouse-client --port 9123 --password 'clickhouse123' -n < /home/3FS/deploy/sql/3fs-monitor.sql
② 更新FoundationDB配置
**注意：在META节点进行操作**1. 更新FoundationDB的配置
vim /etc/foundationdb/foundationdb.conf
# 定位到 [fdbserver] 下的 public-address 配置项，将其修改为 本机IP:$ID
# 如Meta节点Ip为192.168.65.10，则修改为 192.168.65.10:$ID
vim /etc/foundationdb/fdb.cluster
# 将文件中的 127.0.0.1:4500 修改为本机IP:4500
# 如Meta节点Ip为192.168.65.10，则修改为 192.168.65.10:4500
2. 重启FoundationDB服务
systemctl restart foundationdb.service
3. 查看FoundationDB服务端口
ss -tuln
# Netid State Recv-Q Send-Q Local Address:Port Peer Address:Port Process
# ...
# tcp LISTEN 0 4096 192.168.65.10:4500 0.0.0.0:*
# ...
③ 启动monitor_collector
**注意：在META节点进行操作**、1. 从编译服务器获取二进制文件以及配置文件，本文编译节点为Meta节点：
mkdir -p /var/log/3fsmkdir -p /opt/3fs/{bin,etc}
rsync -avz meta:/home/3FS/build/bin/monitor_collector_main /opt/3fs/bin/
rsync -avz meta:/home/3FS/configs/monitor_collector_main.toml /opt/3fs/etc/
rsync -avz meta:/home/3FS/deploy/systemd/monitor_collector_main.service /usr/lib/systemd/system
2. 修改配置文件monitor_collector_main.toml：
vim /opt/3fs/etc/monitor_collector_main.toml...
[server.base.groups.listener]
filter_list = ['enp1s0f0np0'] # 查询RDMA网卡名填入
listen_port = 10000
listen_queue_depth = 4096
rdma_listen_ethernet = true
reuse_port = false
...
[server.monitor_collector.reporter.clickhouse]
db = '3fs'
host = '127.0.0.1'
passwd = 'clickhouse123'
port = '9123'
user = 'default'
3. 启动monitor_collector服务：

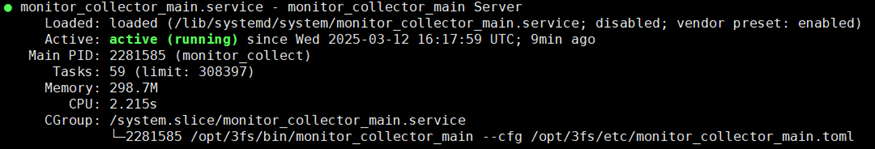

systemctl start monitor_collector_main4. 检查monitor_collector状态：
systemctl status monitor_collector_main
5. 检查端口情况：
ss -tuln
# Netid State Recv-Q Send-Q Local Address:Port Peer Address:Port Process
# ...
# tcp LISTEN 0 4096 192.168.65.10:10000 0.0.0.0:*
# ...
注意：这里只能有一个192.168.65.10:10000 不能存在 127.0.0.1:10000 避免其他服务连接端口错误。如果存在多个10000端口，请检查上面monitor_collector_main.toml文件中是否填写filter_list配置项，下不赘述。
④ 安装Admin Client
**注意：在所有节点进行操作**
1. 从编译服务器获取二进制文件以及配置文件：
mkdir -p /var/log/3fs
mkdir -p /opt/3fs/{bin,etc}
rsync -avz
meta:/home/3FS/build/bin/admin_cli /opt/3fs/bin
rsync -avz
meta:/home/3FS/configs/admin_cli.toml /opt/3fs/etc
rsync -avz
meta:/etc/foundationdb/fdb.cluster /opt/3fs/etc
2. 更新配置文件admin_cli.toml：
vim /opt/3fs/etc/admin_cli.toml
...
cluster_id = "stage"
...
[fdb]
clusterFile = '/opt/3fs/etc/fdb.cluster'
[mgmtd_client]
mgmtd_server_addresses = ["RDMA://192.168.65.10:8000"]
...
3. 查看帮助
/opt/3fs/bin/admin_cli -cfg /opt/3fs/etc/admin_cli.toml help
⑤ 启动Mgmtd Service
**注意：在META节点进行操作**
1. 从编译服务器获取二进制文件以及配置文件：
mkdir -p /var/log/3fs
mkdir -p /opt/3fs/{bin,etc}
rsync -avz
meta:/home/3FS/build/bin/mgmtd_main /opt/3fs/bin
rsync -avz meta:/home/3FS/configs/{mgmtd_main.toml,mgmtd_main_launcher.toml,mgmtd_main_app.toml}
/opt/3fs/etc
rsync -avz
meta:/home/3FS/deploy/systemd/mgmtd_main.service /usr/lib/systemd/system
2. 修改配置文件mgmtd_main_app.toml：
vim /opt/3fs/etc/mgmtd_main_app.toml
allow_empty_node_id
= true
node_id = 1 # 修改node_id
为1
3. 修改配置文件mgmtd_main_launcher.toml：
vim /opt/3fs/etc/mgmtd_main_launcher.toml
...
cluster_id = "stage"
...
[fdb]
clusterFile = '/opt/3fs/etc/fdb.cluster'
...
4. 修改配置文件mgmtd_main.toml：
vim /opt/3fs/etc/mgmtd_main.toml
...
[server.base.groups.listener]
filter_list = ['enp1s0f0np0'] # 查询RDMA网卡名填入
...
[server.base.groups.listener]
filter_list = ['enp1s0f0np0'] # 查询RDMA网卡名填入
...
[common.monitor.reporters.monitor_collector]
remote_ip = "192.168.65.10:10000" # monitor_collector节点ip及端口
...
5. 初始化集群
/opt/3fs/bin/admin_cli -cfg
/opt/3fs/etc/admin_cli.toml "init-cluster --mgmtd /opt/3fs/etc/mgmtd_main.toml 1 1048576
16"
# Init filesystem, root directory layout: chain table
ChainTableId(1), chunksize 1048576, stripesize 16
#
# Init config for MGMTD version 1
6. 启动服务
systemctl start mgmtd_main

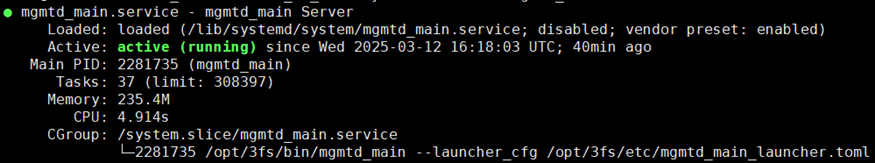

7. 检查服务状态
systemctl status mgmtd_main
8. 检查端口
ss -tuln
# Netid
State Recv-Q Send-Q Local Address:Port Peer Address:Port Process
# ...
# tcp
LISTEN 0 4096 192.168.65.10:8000 0.0.0.0:*
# tcp
LISTEN 0 4096 192.168.65.10:9000 0.0.0.0:*
# ...
9. 检查集群Nodes List
/opt/3fs/bin/admin_cli -cfg
/opt/3fs/etc/admin_cli.toml "list-nodes"
# Id Type Status Hostname Pid
Tags LastHeartbeatTime ConfigVersion ReleaseVersion
# 1
MGMTD PRIMARY_MGMTD meta 2281735
[] N/A 1(UPTODATE) 250228-dev-1-999999-923bdd7c
⑥ 启动Meta Server
**注意：在META节点进行操作**
- 从编译服务器获取二进制文件以及配置文件：
mkdir -p /var/log/3fs
mkdir -p /opt/3fs/{bin,etc}
rsync -avz
meta:/home/3FS/build/bin/meta_main /opt/3fs/bin
rsync -avz meta:/home/3FS/configs/{meta_main_launcher.toml,meta_main.toml,meta_main_app.toml} /opt/3fs/etc
rsync -avz
meta:/home/3FS/deploy/systemd/meta_main.service /usr/lib/systemd/system
1. 更新配置文件meta_main_app.toml：
vim /opt/3fs/etc/meta_main_app.toml
allow_empty_node_id
= true
node_id = 100 # 更新node_id
2. 更新配置文件meta_main_launcher.toml：
vim /opt/3fs/etc/meta_main_launcher.toml
...
cluster_id = "stage"
...
[mgmtd_client]
mgmtd_server_addresses = ["RDMA://192.168.65.10:8000"]
...
3. 更新配置文件meta_main.toml：
vim /opt/3fs/etc/meta_main.toml
...
[server.mgmtd_client]
mgmtd_server_addresses = ["RDMA://192.168.65.10:8000"]
[common.monitor.reporters.monitor_collector]
remote_ip = "192.168.65.10:10000"
...
[server.fdb]
clusterFile = '/opt/3fs/etc/fdb.cluster'
...
[server.base.groups.listener]
filter_list = ['enp1s0f0np0']
listen_port = 8001
...
[server.base.groups.listener]
filter_list = ['enp1s0f0np0']
listen_port = 9001
...
4. 向Mgmtd Server更新Meta节点配置
/opt/3fs/bin/admin_cli -cfg /opt/3fs/etc/admin_cli.toml "set-config --type META --file /opt/3fs/etc/meta_main.toml"

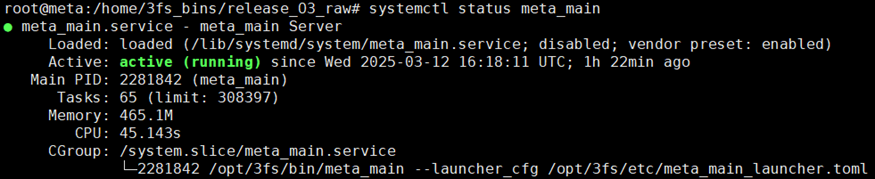

5. 启动服务
systemctl start meta_main
6. 检查服务状态
systemctl status meta_main
7. 检查端口
ss -tuln
# Netid
State Recv-Q Send-Q Local Address:Port Peer Address:Port Process
# ...
# tcp
LISTEN 0 4096 192.168.65.10:8001 0.0.0.0:*
# tcp
LISTEN 0 4096 192.168.65.10:9001 0.0.0.0:*
# ...
8. 检查集群Nodes List
/opt/3fs/bin/admin_cli -cfg
/opt/3fs/etc/admin_cli.toml "list-nodes"
# Id Type Status Hostname Pid Tags
LastHeartbeatTime
ConfigVersion ReleaseVersion
# 1
MGMTD PRIMARY_MGMTD meta 2281735
[] N/A 1(UPTODATE) 250228-dev-1-999999-923bdd7c
# 100 META HEARTBEAT_CONNECTED meta
2281842 [] 2025-03-12 17:01:32 1(UPTODATE)
250228-dev-1-999999-923bdd7c
4.2 Storage节点
**注意：在Storage节点进行操作**
① SSD盘准备
1. 查看可以用来挂载的硬盘
lsblk
# NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINTS
# ...
# nvme0n1 259:0 0
2.9T 0 disk
# nvme1n1 259:1 0
2.9T 0 disk
# nvme2n1 259:2 0
2.9T 0 disk
# nvme3n1 259:3 0
2.9T 0 disk
# nvme4n1 259:4 0
2.9T 0 disk
# nvme5n1 259:5 0
2.9T 0 disk
# nvme6n1 259:6 0
2.9T 0 disk
# nvme7n1 259:7 0
2.9T 0 disk
# ...
2. 创建目录
mkdir -p /storage/data{0..7}
mkdir -p /var/log/3fs
3. 格式化硬盘并进行挂载
注意！我们的环境8块NVMe盘是从0~7连续的，可以直接使用下面的命令，大家根据自己的环境灵活调整命名，不要直接复制使用！
for i in {0..7};do mkfs.xfs -L data${i} /dev/nvme${i}n1;mount -o
noatime,nodiratime -L data${i}
/storage/data${i};done
mkdir -p /storage/data{0..7}/3fs
4. 检查格式化及挂载结果
lsblk
# NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINTS
# ...
# nvme0n1 259:0 0
2.9T 0 disk /storage/data0
# nvme1n1 259:1 0
2.9T 0 disk /storage/data1
# nvme2n1 259:2 0
2.9T 0 disk /storage/data2
# nvme3n1
259:3 0
2.9T 0 disk /storage/data3
# nvme4n1 259:4 0
2.9T 0 disk /storage/data4
# nvme5n1 259:5 0
2.9T 0 disk /storage/data5
# nvme6n1 259:6 0
2.9T 0 disk /storage/data6
# nvme7n1 259:7 0
2.9T 0 disk /storage/data7
# ...
② 增加aio请求的最大数
sysctl -w fs.aio-max-nr=67108864
③ 启动Storage Server服务
1. 从编译服务器获取二进制文件以及配置文件：
mkdir -p /opt/3fs/{bin,etc}
mkdir -p /var/log/3fs
rsync -avz
meta:/home/3FS/build/bin/storage_main /opt/3fs/bin
rsync -avz meta:/home/3FS/configs/{storage_main_launcher.toml,storage_main.toml,storage_main_app.toml}
/opt/3fs/etc
rsync -avz
meta:/home/3FS/deploy/systemd/storage_main.service /usr/lib/systemd/system
rsync -avz
meta:/usr/lib64/libfdb_c.so /usr/lib64
2. 更新配置文件storage_main_app.toml：
vim /opt/3fs/etc/storage_main_app.toml
allow_empty_node_id
= true
node_id = 10001 # 更新node_id
注意几个storage节点的node_list不同
3. 更新配置文件storage_main_launcher.toml：
vim /opt/3fs/etc/storage_main_launcher.toml
...
cluster_id = "stage"
...
[mgmtd_client]
mgmtd_server_addresses = ["RDMA://192.168.65.10:8000"]
...
4. 更新配置文件storage_main.toml：
vim /opt/3fs/etc/storage_main.toml
...
[server.base.groups.listener]
filter_list = ['enp133s0f0np0']
listen_port = 8000
...
[server.base.groups.listener]
filter_list = ['enp133s0f0np0']
listen_port = 9000
...
[server.mgmtd]
mgmtd_server_address = ["RDMA://192.168.65.10:8000"]
...
[common.monitor.reporters.monitor_collector]
remote_ip = "192.168.65.10:10000"
...
[server.targets]
target_paths =
["/storage/data0/3fs","/storage/data1/3fs","/storage/data2/3fs","/storage/data3/3fs","/storage/data4/3fs","/storage/data5/3fs","/storage/data6/3fs","/storage/data7/3fs"]
...
5. 向Mgmtd Server更新Storage节点配置
/opt/3fs/bin/admin_cli -cfg /opt/3fs/etc/admin_cli.toml "set-config --type STORAGE --file /opt/3fs/etc/storage_main.toml"
6. 启动服务
systemctl start storage_main

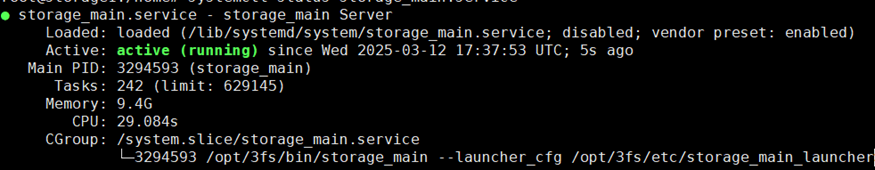

7. 检查服务状态
systemctl status storage_main
8. 检查集群Nodes List
如果没有看到Storage节点，通常需要等待1~2分钟左右
/opt/3fs/bin/admin_cli -cfg
/opt/3fs/etc/admin_cli.toml "list-nodes"
# Id Type Status Hostname Pid
Tags LastHeartbeatTime ConfigVersion ReleaseVersion
# 1
MGMTD PRIMARY_MGMTD meta 2281735
[] N/A 1(UPTODATE) 250228-dev-1-999999-923bdd7c
# 100 META HEARTBEAT_CONNECTED meta
2281842 [] 2025-03-12 17:01:32 1(UPTODATE)
250228-dev-1-999999-923bdd7c
# 10001
STORAGE HEARTBEAT_CONNECTED storage1
3294593 [] 2025-03-12 17:38:13 1(UPTODATE)
250228-dev-1-999999-923bdd7c
# 10002
STORAGE HEARTBEAT_CONNECTED storage2
476286 [] 2025-03-12 17:38:12 1(UPTODATE)
250228-dev-1-999999-923bdd7c
# 10003
STORAGE HEARTBEAT_CONNECTED storage3
2173767 [] 2025-03-12 17:38:12 1(UPTODATE)
250228-dev-1-999999-923bdd7c
4.3 创建admin user、storage targets和chain table
**注意：在META节点进行操作**
1. 创建admin user
/opt/3fs/bin/admin_cli -cfg
/opt/3fs/etc/admin_cli.toml "user-add --root --admin 0 root"
# Uid
0
# Name
root
# Token AAB7sN/h8QBs7/+B2wBQ03Lp(Expired at
N/A)
# IsRootUser
true
# IsAdmin
true
# Gid
0
其中AAB7sN/h8QBs7/+B2wBQ03Lp就是Token，将其保存到/opt/3fs/etc/token.txt中。
2. 安装python依赖
pip3 install -r /home/3FS/deploy/data_placement/requirements.txt
3. 创建chain Table
cd /home
python3
/home/3FS/deploy/data_placement/src/model/data_placement.py \
-ql -relax -type CR --num_nodes 3 --replication_factor 3 --min_targets_per_disk 6
其中关注以下配置项：
- --num_nodes：存储节点数量；
- --replication_factor：副本因子；
执行成功会在当前目录下生成一个output/DataPlacementModel-v_*文件夹，如/home/output/DataPlacementModel-v_3-b_6-r_6-k_3-λ_3-lb_3-ub_3
4. 创建chainTable
python3 /home/3FS/deploy/data_placement/src/setup/gen_chain_table.py \
--chain_table_type CR --node_id_begin 10001 --node_id_end 10003 \
--num_disks_per_node 8 --num_targets_per_disk 6 \
--target_id_prefix 1 --chain_id_prefix 9 \
--incidence_matrix_path
/home/output/DataPlacementModel-v_3-b_6-r_6-k_3-λ_3-lb_3-ub_3/incidence_matrix.pickle
其中关注以下配置项：
- --node_id_begin：storage节点NodeId开始值；
- --node_id_end：storage节点NodeId结束值；
- --num_disks_per_node：每个存储节点挂载了几块硬盘；
- -num_targets_per_disk：每个挂载的硬盘有几个taget；
- --incidence_matrix_path：上一步生成文件路径；
执行成功后，查看output目录下是否产生了一下文件：
-rw-r--r-- 1 root
root 2387 Mar 6 11:55 generated_chains.csv
-rw-r--r-- 1 root root
488 Mar 6 11:55
generated_chain_table.csv
-rw-r--r-- 1 root root 15984 Mar 6 11:55 remove_target_cmd.txt
5. 创建storage target
/opt/3fs/bin/admin_cli --cfg /opt/3fs/etc/admin_cli.toml --config.user_info.token $(<"/opt/3fs/etc/token.txt") < /home/output/create_target_cmd.txt
6. 上传chains到mgmtd service
/opt/3fs/bin/admin_cli --cfg /opt/3fs/etc/admin_cli.toml --config.user_info.token $(<"/opt/3fs/etc/token.txt") "upload-chains /home/output/generated_chains.csv"
7. 上传chain table到mgmtd service
/opt/3fs/bin/admin_cli --cfg /opt/3fs/etc/admin_cli.toml --config.user_info.token $(<"/opt/3fs/etc/token.txt") "upload-chain-table --desc stage 1 /home/output/generated_chain_table.csv"
8. 查看list-chains
/opt/3fs/bin/admin_cli -cfg
/opt/3fs/etc/admin_cli.toml "list-chains"
# ChainId
ReferencedBy ChainVersion Status
PreferredOrder Target Target Target
# 900100001
1 1 SERVING []
101000300101(SERVING-UPTODATE) 101000200101(SERVING-UPTODATE) 101000100101(SERVING-UPTODATE)
# 900100002
1 1 SERVING []
101000300102(SERVING-UPTODATE)
101000200102(SERVING-UPTODATE)
101000100102(SERVING-UPTODATE)
# ...
4.4 FUSE Client节点
**注意：在FUSE Client节点进行操作**
1. 从编译服务器获取二进制文件以及配置文件：
mkdir -p /var/log/3fs
mkdir -p /opt/3fs/{bin,etc}
rsync -avz
meta:/home/3FS/build/bin/hf3fs_fuse_main /opt/3fs/bin
rsync -avz
meta:/home/3FS/build/bin/admin_cli /opt/3fs/bin
rsync -avz meta:/home/3FS/configs/{hf3fs_fuse_main_launcher.toml,hf3fs_fuse_main.toml,hf3fs_fuse_main_app.toml}
/opt/3fs/etc
rsync -avz
meta:/home/3FS/deploy/systemd/hf3fs_fuse_main.service /usr/lib/systemd/system
rsync -avz
meta:/opt/3fs/etc/token.txt /opt/3fs/etc
rsync -avz
meta:/usr/lib64/libfdb_c.so /usr/lib64
2. 创建挂载点
mkdir -p /3fs/stage
3. 更新配置文件hf3fs_fuse_main_launcher.toml：
vim /opt/3fs/etc/hf3fs_fuse_main_launcher.toml
...
cluster_id = "stage"
mountpoint = '/3fs/stage'
token_file = '/opt/3fs/etc/token.txt'
...
[mgmtd_client]
mgmtd_server_addresses = ["RDMA://192.168.65.10:8000"]
...
4. 更新配置文件hf3fs_fuse_main.toml：
vim /opt/3fs/etc/hf3fs_fuse_main.toml
...
[mgmtd]
mgmtd_server_addresses = ["RDMA://192.168.65.10:8000"]
...
[common.monitor.reporters.monitor_collector]
remote_ip = "192.168.65.10:10000"
...
5. 更新配置：
/opt/3fs/bin/admin_cli -cfg /opt/3fs/etc/admin_cli.toml "set-config --type FUSE --file /opt/3fs/etc/hf3fs_fuse_main.toml"
6. 启动服务
systemctl start hf3fs_fuse_main

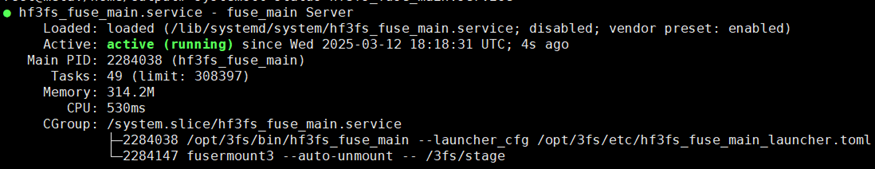

7. 检查服务状态
systemctl status hf3fs_fuse_main
8. 检查挂载点
df -h
# Filesystem Size Used Avail Use% Mounted on
# ...
# hf3fs.stage 70T 650G
70T 1% /3fs/stage
五、测试3FS

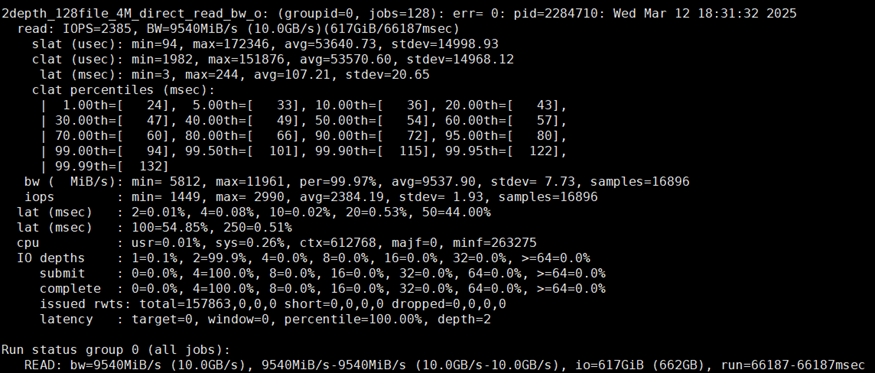

使用fio在3个客户端对3FS进行并发读取测试：
yum install fio -y
fio -numjobs=128 -fallocate=none -iodepth=2 -ioengine=libaio -direct=1 \
-rw=read -bs=4M --group_reporting -size=100M -time_based -runtime=3000 \
-name=2depth_128file_4M_direct_read_bw -directory=/3fs/stage
4M并发读测试下，每个客户端都能达到10GB/s的带宽。
六、展望——3FS+鲲鹏，AI基建的新范式
此次适配不仅验证了3FS在ARM生态的成熟度，更揭示了AI技术栈的无限可能。
“3FS的高性能与开源属性，为AI时代的数据引擎提供了‘中国方案’。我们期待，这场由3FS引领的存储革命，将加速AI基础设施的全面崛起。
3FS在鲲鹏平台上的成功实践，不仅展现了其在高性能存储领域的潜力，也为AI和大数据场景提供了新的选择。未来，随着技术的不断进步和生态的完善，3FS有望在更多领域中大放异彩，成为存储领域的标杆。
持续关注我们，获取更多3FS在鲲鹏平台的优化实践案例！
