作者 | 朱勇
1 环境要求
软件环境要求：
|
软件 |
版本 |
获取方法 |
|
毕昇JDK |
jdk8u342 |
获取链接 |
|
ZooKeeper |
3.4.6 |
获取链接 |
|
ClickHouse |
22.3.6.5 |
|
节点规划（3个节点， 3个分片， 无副本）：
|
主机名 |
IP地址 |
分片 |
|
agent1 |
192.168.xx.1 |
shard1 |
|
agent2 |
192.168.xx.2 |
shard2 |
|
agent3 |
192.168.xx.3 |
shard3 |
本文档基于agent1~3的IP地址编写，使用时注意IP地址的更换。
2 配置ClickHouse部署环境
1、依次登录节点。使用以下命令时需要将节点主机名分别修改为agent1、agent2、agent3。
hostnamectl set-hostname 主机名 --static
2、添加集群所有节点的映射关系。
1) 打开“/etc/hosts”文件。
vim /etc/hosts
2) 在hosts文件中添加以下内容。
IPaddress1 agent1
IPaddress2 agent2
IPaddress3 agent3
3) 按“Esc”键，输入:wq!，按“Enter”保存并退出编辑。
3、登录所有节点关闭防火墙。
systemctl stop firewalld.service
systemctl disable firewalld.service
4、登录所有节点配置SSH免密登录。
1) 生成密钥，遇到提示按“Enter”键。
ssh-keygen -t rsa
2) 在每台机器配置SSH免密登录（包括配置自身的免密）。
ssh-copy-id -i ~/.ssh/id_rsa.pub root@节点IP
5、安装JDK。
1) 获取毕昇JDK。
wget https://mirror.iscas.ac.cn/kunpeng/archive/compiler/bisheng_jdk/bisheng-jre-8u342-linux-aarch64.tar.gz
tar -zxf bisheng-jre-8u342-linux-aarch64.tar.gz -C /usr/local
cd /usr/local
ln -s bisheng-jdk1.8.0_342 jdk8us42
2) 配置环境变量。
打开“/etc/profile”文件。
vim /etc/profile
添加以下内容。
export JAVA_HOME=/usr/local/jdk8u342 export PATH=$JAVA_HOME/bin:$PATH
使环境变量生效。
source /etc/profile
3) 验证。
java -version
3 部署ZooKeeper
1、下载并解压ZooKeeper。
登录agent1节点，进入“/usr/local”目录，下载zookeeper-3.8.0.tar.gz，并解压。
cd /usr/local
wget http://archive.apache.org/dist/zookeeper/zookeeper-3.8.0/apachezookeeper-3.8.0-bin.tar.gz
tar -zxvf apache-zookeeper-3.8.0-bin.tar.gz
2、建立软链接，便于后期版本更换。
ln -s apache-zookeeper-3.8.0-bin zookeeper
3、添加ZooKeeper到环境变量。
1) 登录agent1节点，打开配置文件。
vim /etc/profile
2) 添加ZooKeeper到环境变量。
export ZOOKEEPER_HOME=/usr/local/zookeeper export PATH=$ZOOKEEPER_HOME/bin:$PATH
3) 使环境变量生效。
source /etc/profile
4) 在agent2，agent3节点重复执行以上步骤，配置ZooKeeper的环境变量。
4、修改Zookeeper配置文件。
1) 登录agent1节点，进入ZooKeeper所在目录。
cd /usr/local/zookeeper/conf
2) 拷贝配置文件。
cp zoo_sample.cfg zoo.cfg
3) 修改配置文件。
vim zoo.cfg
dataDir=/usr/local/zookeeper/tmp
4) 在最后添加如下代码，其中server.1-3是部署ZooKeeper的节点。
server.1=agent1:2888:3888 server.2=agent2:2888:3888 server.3=agent3:2888:3888
5) 创建“tmp”目录作数据目录。
mkdir /usr/local/zookeeper/tmp
6) 在“tmp”目录中创建一个空文件，并向该文件写入ID。
touch /usr/local/zookeeper/tmp/myid
echo 1 > /usr/local/zookeeper/tmp/myid
5、同步配置到其他节点。
1) 登录agent1节点，将配置好的ZooKeeper拷贝到其它节点。
scp -r /usr/local/zookeeper root@agent2:/usr/local
scp -r /usr/local/zookeeper root@agent3:/usr/local
2) 登录agent2、agent3，创建软链接并修改myid内容。
agent2：
cd /usr/local
echo 2 > /usr/local/zookeeper/tmp/myid
agent3：
cd /usr/local
echo 3 > /usr/local/zookeeper/tmp/myid
6、运行验证。
1) 分别在agent2，agent3上启动ZooKeeper。
cd /usr/local/zookeeper/bin
./zkServer.sh start
2) 查看ZooKeeper状态。
./zkServer.sh status
4 部署ClickHouse集群
1、获取ClickHouse相关安装包，在agent1~3节点都执行。
mkdir -p /usr/local/clickhouse
cd /usr/local/clickhouse
wget https://packages.clickhouse.com/tgz/lts/clickhouse-server-22.3.6.5arm64.tgz --no-check-certificate
wget https://packages.clickhouse.com/tgz/lts/clickhouse-client-22.3.6.5arm64.tgz --no-check-certificate
wget https://packages.clickhouse.com/tgz/lts/clickhouse-commonstatic-22.3.6.5-arm64.tgz --no-check-certificate
2、解压后执行安装。
tar -zxvf clickhouse-common-static-22.3.6.5-arm64.tg
sudo ./clickhouse-common-static-22.3.6.5/install/doinst.sh
tar -zxvf clickhouse-server-22.3.6.5-arm64.tgz
sudo ./clickhouse-server-22.3.6.5/install/doinst.sh
tar -zxvf clickhouse-client-22.3.6.5-arm64.tgz
sudo ./clickhouse-client-22.3.6.5/install/doinst.sh

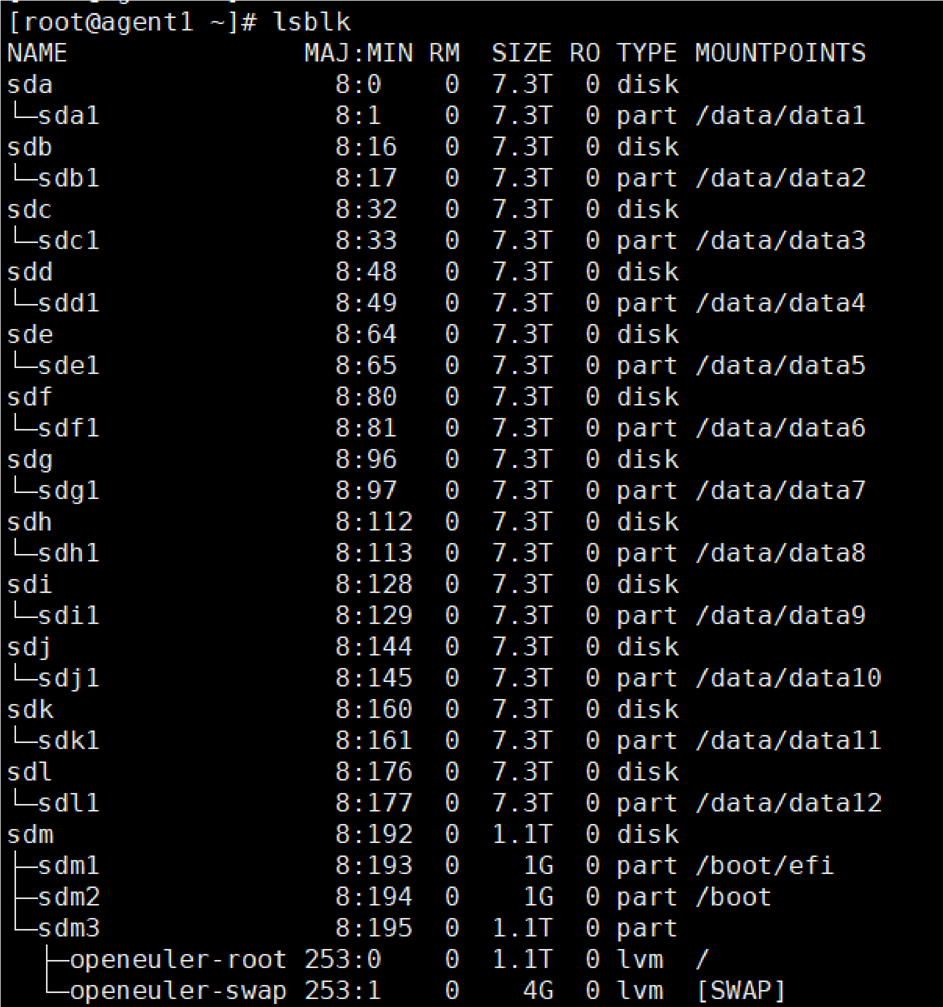

3、查看盘挂载情况。
lsblk
回显信息显示如下，agent1~3都已经把盘挂载了“/data/data1-12”等12个数据目录，后续将利用这12个数据目录存储ClickHouse的数据。
4、修改“/etc/clickhouse-server/config.xml”配置文件（文件是只读文件，需要使用:wq!保存）。
需要配置以下信息：
storage_configuration
<storage_configuration>
<disks>
<bak_disk1> <!-- disk name -->
<path>/data/data1/clickhouse/data/</path>
<keep_free_space_bytes>10485760</keep_free_space_bytes>
</bak_disk1>
<bak_disk2>
<path>/data/data2/clickhouse/data/</path>
<keep_free_space_bytes>10485760</keep_free_space_bytes>
</bak_disk2>
<bak_disk3> <!-- disk name -->
<path>/data/data3/clickhouse/data/</path>
<keep_free_space_bytes>10485760</keep_free_space_bytes>
</bak_disk3>
<bak_disk4>
<path>/data/data4/clickhouse/data/</path>
<keep_free_space_bytes>10485760</keep_free_space_bytes>
</bak_disk4>
<bak_disk5> <!-- disk name -->
<path>/data/data5/clickhouse/data/</path>
<keep_free_space_bytes>10485760</keep_free_space_bytes>
</bak_disk5>
<bak_disk6>
<path>/data/data6/clickhouse/data/</path>
<keep_free_space_bytes>10485760</keep_free_space_bytes>
</bak_disk6>
<bak_disk7> <!-- disk name -->
<path>/data/data7/clickhouse/data/</path>
<keep_free_space_bytes>10485760</keep_free_space_bytes>
</bak_disk7>
<bak_disk8>
<path>/data/data8/clickhouse/data/</path>
<keep_free_space_bytes>10485760</keep_free_space_bytes>
</bak_disk8>
<bak_disk9> <!-- disk name -->
<path>/data/data9/clickhouse/data/</path>
<keep_free_space_bytes>10485760</keep_free_space_bytes>
</bak_disk9>
<bak_disk10> <!-- disk name -->
<path>/data/data10/clickhouse/data/</path>
<keep_free_space_bytes>10485760</keep_free_space_bytes>
</bak_disk10>
<bak_disk11> <!-- disk name -->
<path>/data/data11/clickhouse/data/</path>
<keep_free_space_bytes>10485760</keep_free_space_bytes>
</bak_disk11>
<bak_disk12>
<path>/data/data12/clickhouse/data/</path>
<keep_free_space_bytes>10485760</keep_free_space_bytes>
</bak_disk12>
</disks>
<policies>
<default>
<volumes>
<single>
<disk>bak_disk1</disk>
<disk>bak_disk2</disk>
<disk>bak_disk3</disk>
<disk>bak_disk4</disk>
<disk>bak_disk5</disk>
<disk>bak_disk6</disk>
<disk>bak_disk7</disk>
<disk>bak_disk8</disk>
<disk>bak_disk9</disk>
<disk>bak_disk10</disk>
<disk>bak_disk11</disk>
<disk>bak_disk12</disk>
</single>
</volumes>
</default>
</policies>
</storage_configuration>
remote server
<remote_servers>
<mycluster>
<shard>
<internal_replication>true</internal_replication>
<replica>
<host>192.168.xx.1</host>
<port>19000</port>
</replica>
</shard>
<shard>
<internal_replication>true</internal_replication>
<replica>
<host>192.168.xx.2</host>
<port>19000</port>
</replica>
</shard>
<shard>
<internal_replication>true</internal_replication>
<replica>
<host>192.168.xx.3</host>
<port>19000</port>
</replica>
</shard>
</mycluster>
</remote_servers>
ZooKeeper
<zookeeper>
<node index="1">
<host>192.168.xx.1</host>
<port>2181</port>
</node>
<node index="2">
<host>192.168.xx.2</host>
<port>2181</port>
</node>
<node index="3">
<host>192.168.xx.3</host>
<port>2181</port>
</node>
</zookeeper>
macros，macros信息需要根据每个节点的情况进行适配，和节点规划对应起来。
<macros>
<cluster>mycluster</cluster>
<shard>01</shard>
<replica>01</replica>
</macros>
在agent2和agent3<macros></macros>标签与上面不同，分别填写：
<macros>
<cluster>mycluster</cluster>
<shard>02</shard>
<replica>01</replica>
</macros>
<macros>
<cluster>mycluster</cluster>
<shard>03</shard>
<replica>01</replica> </macros>
5、创建存储元数据和表数据的目录。
mkdir -p /data/data{1,2,3,4,5,6,7,8,9,10,11,12}/clickhouse/data
mkdir /var/lib/clickhouse
“/data/data{1,2,3,4,5,6,7,8,9,10,11,12}/clickhouse/data”用于存储表数据，建表时指定了storage_policy。
“/var/lib/clickhouse”用于存储元数据，建表时不指定storage_policy时存储表数据。
如果提示缺少server.crt、server.key、dhparam.pem等文件，请使用config.xml中<openssl>标签内的两条生成命令生成相应文件。
openssl req -subj "/CN=localhost" -new -newkey rsa:2048 -days 365 -nodes -x509 -keyout /etc/clickhouse-server/server.key -out /etc/clickhouse-server/server.crt openssl dhparam -out /etc/clickhouse-server/dhparam.pem 4096
如果8123端口冲突，则将<listen_host>只保留一个：<listen_host>127.0.0.1</listen_host>。
如果启动过程中发现9000端口有冲突，可以将9000端口的信息全部改成19000端口，换一个不冲突的端口（vim进入后，使用替换命令 ：%s/9000/19000/g）。
6、集群验证。
1）在每个节点上启动ClickHouse Server节点。
cllickhouse start
2）进入ClickHouse Client节点。
clickhouse client -h 192.168.58.168 --port 19000 -n -m
如启动不成功或进入不了数据库，可通过以下命令启动。
/usr/bin/clickhouse-server --configfile /etc/clickhouse-server/config.xml --pid-file /var/run/clickhouse-server/clickhouse-server.pid
3）启动后关闭远程连接窗口。重新连接服务器再尝试进入数据库。

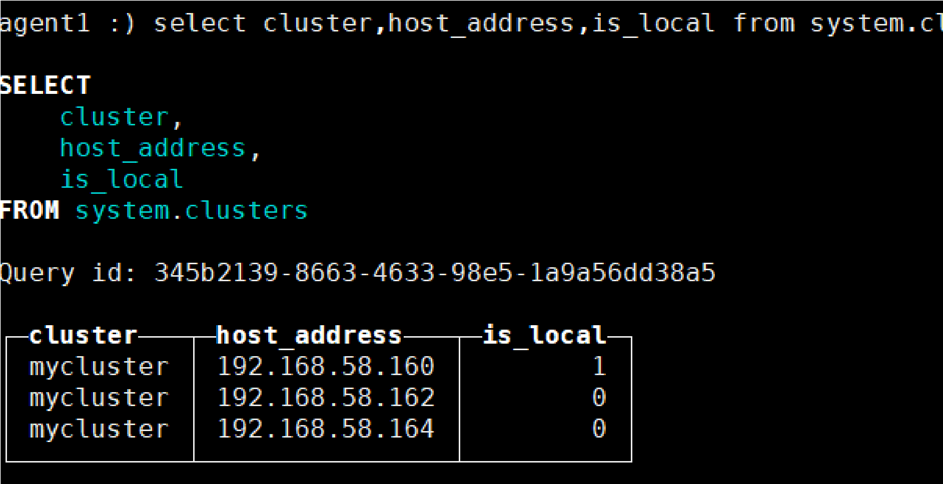

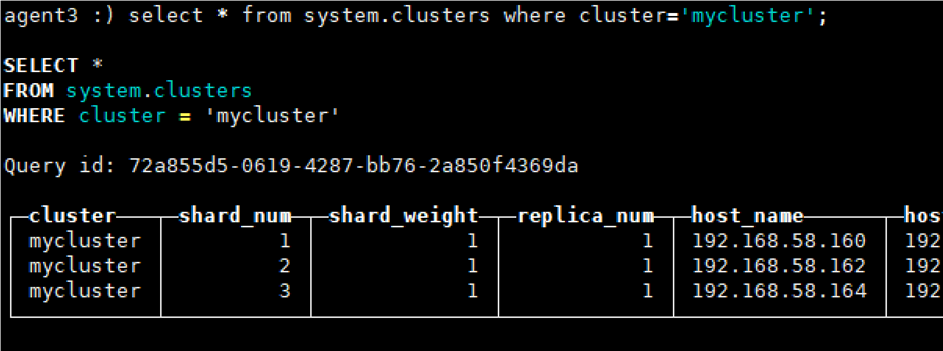

4）查看cluster信息。
select * from system.clusters where cluster='mycluster';
5）建on cluster表。
CREATE TABLE customer on cluster mycluster
(
C_CUSTKEY UInt32,
C_NAME String,
C_ADDRESS String,
C_CITY LowCardinality(String),
C_NATION LowCardinality(String),
C_REGION LowCardinality(String),
C_PHONE String,
C_MKTSEGMENT LowCardinality(String)
)
ENGINE = ReplicatedMergeTree('/clickhouse/tables/{shard}/ default.customer','{replica}') ORDER BY (C_CUSTKEY);
6）建分布式表。
CREATE TABLE default.customer_all on cluster mycluster as default.cusomer
ENGINE = Distributed(mycluster, default, customer, rand());
7）查询分布式表，会利用所有的计算资源。
8）查询本地表，数据只会在同一个shard同步，然后计算资源也是只用到了本机的计算资源。
5 SSB数据集测试
5.1 准备测试数据
使用开源数据集star schema benchmark测试。
1、下载编译dbgen工具，用于生成数据。建议进入挂载在数据盘上的目录执行，在系统盘生成数据比较占用存储空间。
cd / data/data1
yum -y install gcc gcc-c++ make cmake git
git clone https://github.com/vadimtk/ssb-dbgen.git
cd ssb-dbgen
make
2、生成数据。
./dbgen -s 500 -T c
./dbgen -s 500 -T l
./dbgen -s 500 -T p
./dbgen -s 500 -T s
./dbgen -s 500 -T d
3、在ClickHouse中创建数据表。
1）通过ClickHouse Client进入，创建一个database，例如：
clickhouse client -h 192.168.xx.1 --port 19000 -m -n server1 :) create database ssb_data_source;
use ssb_data_source;
2）执行以下建表语句：
CREATE TABLE customer
(
C_CUSTKEY UInt32,
C_NAME String,
C_ADDRESS String,
C_CITY LowCardinality(String),
C_NATION LowCardinality(String), C_REGION LowCardinality(String),
C_PHONE String,
C_MKTSEGMENT LowCardinality(String)
)
ENGINE = MergeTree ORDER BY (C_CUSTKEY) SETTINGS storage_policy = 'default';
CREATE TABLE part
(
P_PARTKEY UInt32,
P_NAME String,
P_MFGR LowCardinality(String),
P_CATEGORY LowCardinality(String),
P_BRAND LowCardinality(String), P_COLOR LowCardinality(String),
P_TYPE LowCardinality(String),
P_SIZE UInt8,
P_CONTAINER LowCardinality(String)
)
ENGINE = MergeTree ORDER BY P_PARTKEY SETTINGS storage_policy = 'default';
CREATE TABLE supplier
(
S_SUPPKEY UInt32,
S_NAME String,
S_ADDRESS String,
S_CITY LowCardinality(String),
S_NATION LowCardinality(String),
S_REGION LowCardinality(String),
S_PHONE String
)
ENGINE = MergeTree ORDER BY S_SUPPKEY
SETTINGS storage_policy = 'default';
4、在“ssb-dbgen”目录下导入数据。
clickhouse client -h 192.168.xx.1 --port 19000 -m -n -d ssb_data_source --query "INSERT INTO customer FORMAT CSV" < customer.tbl
clickhouse client -h 192.168.xx.1 --port 19000 -m -n -d ssb_data_source --query "INSERT INTO part FORMAT CSV" < part.tbl
clickhouse client -h 192.168.xx.1 --port 19000 -m -n -d ssb_data_source --query "INSERT INTO supplier FORMAT CSV" < supplier.tbl
clickhouse client -h 192.168.xx.1 --port 19000 -m -n -d ssb_data_source --query "INSERT INTO lineorder FORMAT CSV" < lineorder.tbl
5、将star schema转成成flat schema，宽表lineorder_flat表有30亿行数据。
在数据库中执行以下命令。
CREATE TABLE lineorder_flat
ENGINE = MergeTree ORDER BY (LO_ORDERDATE, LO_ORDERKEY)
SETTINGS storage_policy = 'default'
AS SELECT
l.LO_ORDERKEY AS LO_ORDERKEY,
l.LO_LINENUMBER AS LO_LINENUMBER,
l.LO_CUSTKEY AS LO_CUSTKEY,
l.LO_PARTKEY AS LO_PARTKEY,
l.LO_SUPPKEY AS LO_SUPPKEY,
l.LO_ORDERDATE AS LO_ORDERDATE,
l.LO_ORDERPRIORITY AS LO_ORDERPRIORITY,
l.LO_SHIPPRIORITY AS LO_SHIPPRIORITY,
l.LO_QUANTITY AS LO_QUANTITY,
l.LO_EXTENDEDPRICE AS LO_EXTENDEDPRICE,
l.LO_ORDTOTALPRICE AS LO_ORDTOTALPRICE,
l.LO_DISCOUNT AS LO_DISCOUNT,
l.LO_REVENUE AS LO_REVENUE,
l.LO_SUPPLYCOST AS LO_SUPPLYCOST,
l.LO_TAX AS LO_TAX,
l.LO_COMMITDATE AS LO_COMMITDATE,
l.LO_SHIPMODE AS LO_SHIPMODE,
c.C_NAME AS C_NAME,
c.C_ADDRESS AS C_ADDRESS,
c.C_CITY AS C_CITY,
c.C_NATION AS C_NATION,
c.C_REGION AS C_REGION,
c.C_PHONE AS C_PHONE,
c.C_MKTSEGMENT AS C_MKTSEGMENT,
s.S_NAME AS S_NAME,
s.S_ADDRESS AS S_ADDRESS,
s.S_CITY AS S_CITY,
s.S_NATION AS S_NATION,
s.S_REGION AS S_REGION,
s.S_PHONE AS S_PHONE,
p.P_NAME AS P_NAME,
p.P_MFGR AS P_MFGR,
p.P_CATEGORY AS P_CATEGORY,
p.P_BRAND AS P_BRAND,
p.P_COLOR AS P_COLOR,
p.P_TYPE AS P_TYPE,
p.P_SIZE AS P_SIZE,
p.P_CONTAINER AS P_CONTAINER
FROM lineorder AS l
INNER JOIN customer AS c ON c.C_CUSTKEY = l.LO_CUSTKEY INNER JOIN supplier AS s ON s.S_SUPPKEY = l.LO_SUPPKEY
INNER JOIN part AS p ON p.P_PARTKEY = l.LO_PARTKEY;
数据库ssb_data_source的lineorder_flat产生了30亿条数据作为数据源，在后续的测试步骤中，需要数据从此表导入即可。
5.2 分布式性能提升测试
5.2.1 构建分布式库表
1、进入ClickHouse交互式界面。
clickhouse client -h 192.168.xx.1 --port 19000 -m -n
如有密码则使用：
clickhouse client -h 192.168.xx.1 -u username --password password -m -n
2、查看集群名称。
select cluster,host_address,is_local from system.clusters;
cluster列为集群名称，之后步骤需要多次使用。is_local列为1代表当前所连接节点。
3、在所有节点创建数据库“distributed_test”。mycluster为集群名称，需要替换。
create database distributed_test on cluster mycluster;
4、在所有节点创建本地表“lineorder_flat”。
CREATE TABLE distributed_test.lineorder_flat on cluster mycluster (
`LO_ORDERKEY` UInt32,
`LO_LINENUMBER` UInt8,
`LO_CUSTKEY` UInt32,
`LO_PARTKEY` UInt32,
`LO_SUPPKEY` UInt32,
`LO_ORDERDATE` Date,
`LO_ORDERPRIORITY` LowCardinality(String),
`LO_SHIPPRIORITY` UInt8,
`LO_QUANTITY` UInt8,
`LO_EXTENDEDPRICE` UInt32, `LO_ORDTOTALPRICE` UInt32,
`LO_DISCOUNT` UInt8, `LO_REVENUE` UInt32,
`LO_SUPPLYCOST` UInt32,
`LO_TAX` UInt8,
`LO_COMMITDATE` Date,
`LO_SHIPMODE` LowCardinality(String),
`C_NAME` String,
`C_ADDRESS` String,
`C_CITY` LowCardinality(String),
`C_NATION` LowCardinality(String),
`C_REGION` LowCardinality(String),
`C_PHONE` String,
`C_MKTSEGMENT` LowCardinality(String),
`S_NAME` String,
`S_ADDRESS` String,
`S_CITY` LowCardinality(String),
`S_NATION` LowCardinality(String),
`S_REGION` LowCardinality(String),
`S_PHONE` String,
`P_NAME` String,
`P_MFGR` LowCardinality(String),
`P_CATEGORY` LowCardinality(String),
`P_BRAND` LowCardinality(String),
`P_COLOR` LowCardinality(String),
`P_TYPE` LowCardinality(String),
`P_SIZE` UInt8,
`P_CONTAINER` LowCardinality(String)
)
ENGINE = ReplicatedMergeTree('/clickhouse/tables/ finebiUserOper_cluster_23shards_2replicas/{shard}/ distributed.lineorder_flat__sagahgagag', '{replica}')
ORDER BY (LO_ORDERDATE, LO_ORDERKEY)
SETTINGS index_granularity = 8192, use_minimalistic_part_header_in_zookeeper =1, storage_policy = 'default';
5、在所有节点创建分布式表。
CREATE TABLE IF NOT EXISTS distributed_test.lineorder_flat_all ON CLUSTER mycluster AS distributed_test.lineorder_flat
ENGINE = Distributed(mycluster, distributed_test, lineorder_flat, rand());
6、导入数据：从步骤2创建的数据库里向lineorder_flat_all表并导入足量数据。
insert into distributed_test.lineorder_flat_all select * from ssb_data_source.lineorder_flat limit 3000000000;
本次测试导入30亿条数据。
5.2.2 执行OmniMV运行流程
1、清空system.query_log中distributed_test数据库的查询记录。
alter table system.query_log delete where databases=['distributed_test'];
2、执行ssb的sql。
官网上提供了13条SSB数据库的查询SQL。三条没有group by子句，10条有group by子句。需要将其改写为查询分布式表lineorder_flat_all，改写后SQL如下：
SELECT sum(LO_EXTENDEDPRICE * LO_DISCOUNT) AS revenue FROM lineorder_flat_all WHERE toYear(LO_ORDERDATE) = 1993 AND LO_DISCOUNT BETWEEN 1 AND 3 AND LO_QUANTITY < 25 limit 100;
SELECT sum(LO_EXTENDEDPRICE * LO_DISCOUNT) AS revenue FROM lineorder_flat_all WHERE toYYYYMM(LO_ORDERDATE) = 199401 AND LO_DISCOUNT BETWEEN 4 AND 6 AND LO_QUANTITY BETWEEN 26 AND 35;
SELECT sum(LO_EXTENDEDPRICE * LO_DISCOUNT) AS revenue FROM lineorder_flat_all WHERE toISOWeek(LO_ORDERDATE) = 6 AND toYear(LO_ORDERDATE) = 1994 AND LO_DISCOUNT BETWEEN 5 AND 7 AND LO_QUANTITY BETWEEN 26 AND 35;
SELECT sum(LO_REVENUE), toYear(LO_ORDERDATE) AS year, P_BRAND FROM lineorder_flat_all WHERE P_CATEGORY = 'MFGR#12' AND S_REGION = 'AMERICA' GROUP BY year, P_BRAND ORDER BY year, P_BRAND;
SELECT sum(LO_REVENUE), toYear(LO_ORDERDATE) AS year, P_BRAND FROM lineorder_flat_all WHERE P_BRAND >= 'MFGR#2221' AND P_BRAND <= 'MFGR#2228' AND S_REGION = 'ASIA' GROUP BY year, P_BRAND ORDER BY year, P_BRAND;
SELECT sum(LO_REVENUE), toYear(LO_ORDERDATE) AS year, P_BRAND FROM lineorder_flat_all WHERE P_BRAND = 'MFGR#2239' AND S_REGION = 'EUROPE' GROUP BY year, P_BRAND ORDER BY year, P_BRAND;
SELECT C_NATION, S_NATION, toYear(LO_ORDERDATE) AS year, sum(LO_REVENUE) AS revenue FROM lineorder_flat_all WHERE C_REGION = 'ASIA' AND S_REGION = 'ASIA' AND year >= 1992 AND year <= 1997 GROUP BY C_NATION, S_NATION,year ORDER BY year ASC,revenue DESC;
SELECT C_CITY, S_CITY, toYear(LO_ORDERDATE) AS year, sum(LO_REVENUE) AS revenue FROM lineorder_flat_all WHERE C_NATION = 'UNITED STATES' AND S_NATION = 'UNITED STATES' AND year >= 1992 AND year <= 1997 GROUP BY C_CITY, S_CITY, year ORDER BY year ASC,revenue DESC;
SELECT C_CITY, S_CITY, toYear(LO_ORDERDATE) AS year, sum(LO_REVENUE) AS revenue FROM lineorder_flat_all WHERE (C_CITY = 'UNITED KI1' OR C_CITY = 'UNITED KI5') AND (S_CITY = 'UNITED KI1' OR S_CITY = 'UNITED KI5') AND year >= 1992 AND year <= 1997 GROUP BY C_CITY, S_CITY, year ORDER BY year ASC, revenue DESC;
SELECT C_CITY, S_CITY, toYear(LO_ORDERDATE) AS year, sum(LO_REVENUE) AS revenue FROM lineorder_flat_all WHERE (C_CITY = 'UNITED KI1' OR C_CITY = 'UNITED KI5') AND (S_CITY = 'UNITED KI1' OR S_CITY = 'UNITED KI5') AND toYYYYMM(LO_ORDERDATE) = 199712 GROUP BY C_CITY, S_CITY, year ORDER BY year ASC,revenue DESC;
SELECT toYear(LO_ORDERDATE) AS year, C_NATION, sum(LO_REVENUE - LO_SUPPLYCOST) AS profit FROM lineorder_flat_all WHERE C_REGION = 'AMERICA' AND S_REGION = 'AMERICA' AND (P_MFGR = 'MFGR#1' OR P_MFGR = 'MFGR#2') GROUP BY year, C_NATION ORDER BY year ASC, C_NATION ASC;
SELECT toYear(LO_ORDERDATE) AS year, S_NATION, P_CATEGORY, sum(LO_REVENUE - LO_SUPPLYCOST) AS profit FROM lineorder_flat_all WHERE C_REGION = 'AMERICA' AND S_REGION = 'AMERICA' AND (year = 1997 OR year = 1998) AND (P_MFGR = 'MFGR#1' OR P_MFGR = 'MFGR#2') GROUP BY year, S_NATION,P_CATEGORY ORDER BY year ASC, S_NATION ASC, P_CATEGORY ASC;
SELECT toYear(LO_ORDERDATE) AS year, S_CITY, P_BRAND, sum(LO_REVENUE - LO_SUPPLYCOST) AS profit FROM lineorder_flat_all WHERE S_NATION = 'UNITED STATES' AND (year = 1997 OR year = 1998) AND P_CATEGORY = 'MFGR#14' GROUP BY year, S_CITY, P_BRAND ORDER BY year ASC, S_CITY ASC, P_BRAND ASC;
3、配置OmniMV配置文件，参考配置如下。
[raw_file]
# 数据库名称
database = distributed_test work_path = ./clickhouse
[clickhouse]
ck_host = 192.168.58.168 ck_port = 19000
# 集群名称（只查询本地表可不配置） cluster_name = mycluster num_round = 5
# 是否启用clickhouse projection功能[True or False] enable_projection = False
# 创建和删除projection的超时时间，单位（s）
projection_wait_time = 3600
# 数据压缩比: 视图产生的数据行数/sql查询需要处理的行数read_rows，数据压缩比越小越好 projection_compress_ratio = 0.8
# SQL运行的阈值，小于这个时间的sql不考虑推荐视图，单位（ms） sql_running_time_threshold = 10
# 每张表推荐出来的projection数量的上限
projection_limit_each_table = 10
# 推荐Projection时配置表工作模式，为True,则【clickhouse_tables】只能配置分布式表，为False，则
【clickhouse_tables】只能配置本地表 is_distributed_table = True
# 列举一些重点的表来进行推荐，表之间用逗号分隔。在多表场景下，需要填写all, e.g. clickhouse_tables = all clickhouse_tables = lineorder_flat_all
# 指定从哪个系统表中查询query相关信息，一般本地表会从system.query_log中查询信息，分布式表可能从别的表中获取信息
query_log_table = system.query_log
# （初次提取query）从query_log中对每张表提取query信息，提取到的query需要是指定数据库，指定数据表，运行时间超过配置文件中阈值的query数量
# （增量提取query），增量提取的query数量也是该参数指定
query_limit_each_table = 15
# 在多表场景下，配置提取的query总数量
query_limit_mutil_table = 15
# 是否为包含条件的聚合函数sql推荐projection (例如select sum(multiif..)) [True or False]
# 如果为True:则去除条件表达式后推荐，为False：这条sql不推荐projection projection_with_conditional_functions = False
# 是否需要对新建的projection物化历史的数据，默认不物化历史数据 [True or False] allows_materialize_projection = True
# 指定要删除的Projection名称，使用 "table_name.projection_name"进行指定,table_name必须是本地表表名。多个projection之间使用(英文)逗号分割。
# 如果所有节点都存在此"table_name.projection_name"，且都需要删除，需要将【is_distributed_table】配置为True
# 如果不需要删除Projection，请将其置为None，以防止误操作 drop_projections = None
[train]
# 通过对出现过的聚合列进行排列组合，以此来扩大训练数据的数量，这里可以限制 大的扩充的训练sql的数量 max_data_count = 20 epochs = 100 estimators = 50 max_depth = 5 learning_rate = 0.05
[recommend]
# recommend strategy
# options: ['sql', 'compress_ratio']
# 选择compress_ratio表示按照projection压缩比来排序，选择sql，表示按照projection可以匹配sql的数量来排序 candidate_strategy = compress_ratio
4、执行数据库初始化命令。
python main.pyc clickhouse init_database

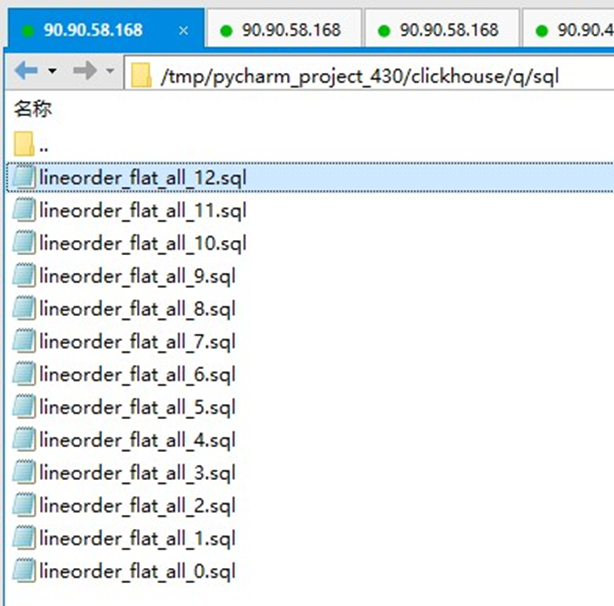

5、执行提取SQL命令。
python main.pyc clickhouse extract_sqls
虽然配置了每张表提取15条SQL，但清空执行记录后只执行了13条SQL，因此只提取到了13条SQL。

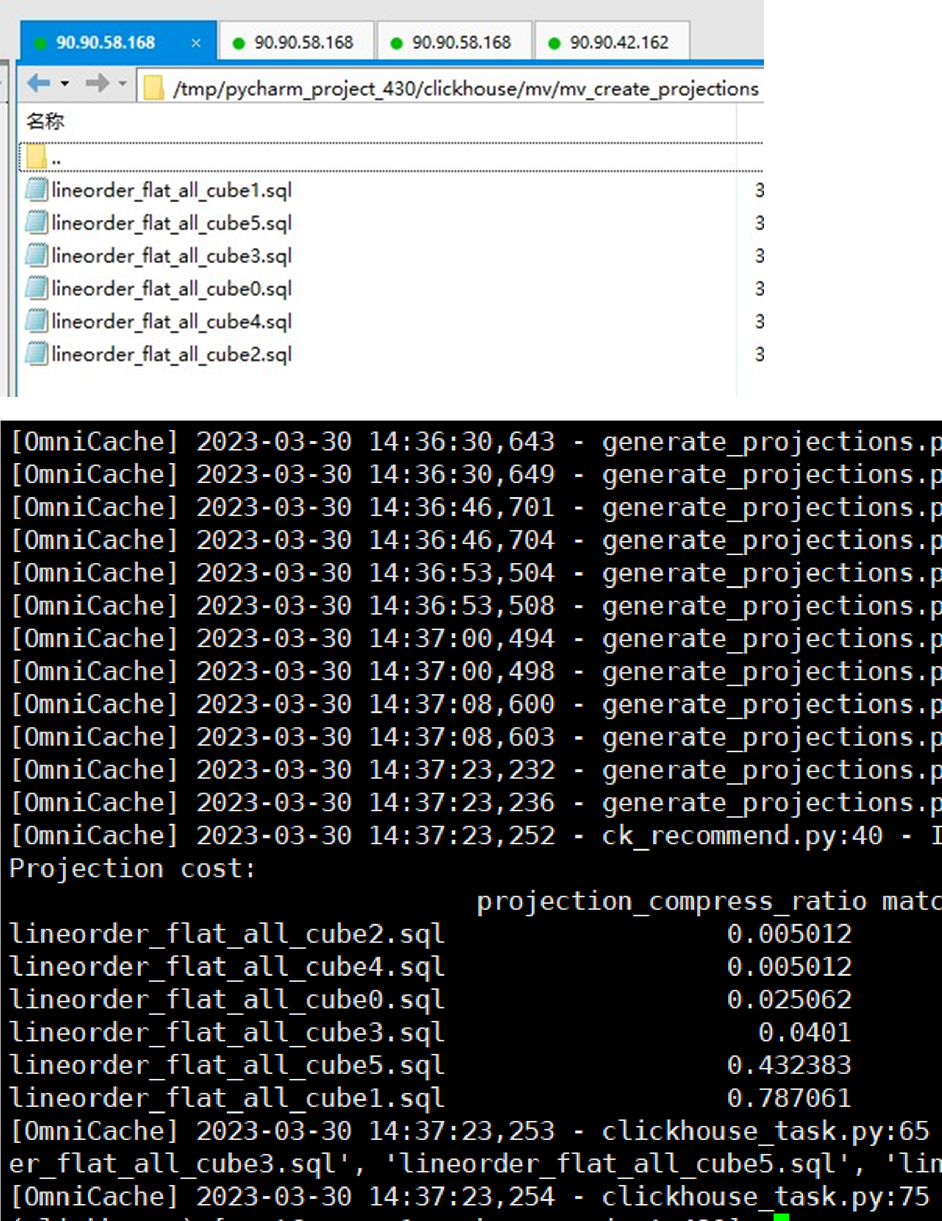

6、执行解析projection命令。
python main.pyc clickhouse generate_views
产生6条projections。
7、创建projections。
python main.pyc clickhouse create_projections
在各个节点的本地表lineorder_flat上均创建了视图。
8、关闭projection，测试13条SQL运行时间。
1）将以下内容写入measure_performance.sh脚本中。在使用时，需要将脚本中的IP地址替换成实际的。
#!/bin/bash
# 获取要执行的SQL语句目录
sql_dir=$1 set_allow=$2
# 判断目录是否存在
if [ ! -d $sql_dir ]; then
echo "The specified directory does not exist." exit 1
fi
# 定义clickhouse命令行工具路径
clickhouse_client="/usr/bin/clickhouse-client -h 192.168.xx.1 --port 19000 -m -n -d distributed_test -allow_experimental_projection_optimization $set_allow"
# 获取目录下所有的.sql文件
sql_files=$(ls $sql_dir/*.sql)
# 循环执行每个SQL文件
for sql_file in $sql_files do
# 清理所有节点服务器缓存
ssh agent1 "echo 3 > /proc/sys/vm/drop_caches" ssh agent2 "echo 3 > /proc/sys/vm/drop_caches" ssh agent3 "echo 3 > /proc/sys/vm/drop_caches" echo "Executing SQL file: $sql_file"
start=$(date +%s.%N) # 记录开始时间 # 使用clickhouse命令执行SQL文件, 执行5次 for i in {1..5} do
echo "执行：$sql_file"
$clickhouse_client < $sql_file >> /dev/null done
end=$(date +%s.%N) # 记录结束时间
avg_time=`awk -v x=$end -v y=$start 'BEGIN{printf "%.4f\n",(x-y)/5}'` echo "$sql_file五次平均执行时间为：$avg_time 秒" done
echo "All SQL files executed."
2）执行脚本。
sh measure_performance.sh /tmp/pycharm_project_430/clickhouse 0
“/tmp/pycharm_project_430/clickhouse”参数为SQL文件夹路径，第二个参数表示是否启用projection，“0”表示禁用，“1”表示启用。SQL文件夹路径在配置文件中的work_path下的“/q/sql”中。
执行脚本输出为：
lineorder_flat_all_0.sql五次平均执行时间为：0.4203 秒
lineorder_flat_all_10.sql五次平均执行时间为：20.9677 秒
lineorder_flat_all_11.sql五次平均执行时间为：7.4551 秒
lineorder_flat_all_12.sql五次平均执行时间为：7.0748 秒
lineorder_flat_all_1.sql五次平均执行时间为：13.5604 秒
lineorder_flat_all_2.sql五次平均执行时间为：17.4962 秒
lineorder_flat_all_3.sql五次平均执行时间为：16.0823 秒
lineorder_flat_all_4.sql五次平均执行时间为：0.2616 秒
lineorder_flat_all_5.sql五次平均执行时间为：0.3689 秒
lineorder_flat_all_6.sql五次平均执行时间为：2.5517 秒
lineorder_flat_all_7.sql五次平均执行时间为：13.1876 秒
lineorder_flat_all_8.sql五次平均执行时间为：13.3727 秒
lineorder_flat_all_9.sql五次平均执行时间为：15.5257 秒
3）开启projection，测试13条SQL运行时间。
sh measure_performance.sh /tmp/pycharm_project_430/clickhouse 1
脚本输出为：
lineorder_flat_all_0.sql五次平均执行时间为：0.1874 秒
lineorder_flat_all_10.sql五次平均执行时间为：0.2092 秒
lineorder_flat_all_11.sql五次平均执行时间为：8.1524 秒
lineorder_flat_all_12.sql五次平均执行时间为：1.0646 秒
lineorder_flat_all_1.sql五次平均执行时间为：2.3531 秒
lineorder_flat_all_2.sql五次平均执行时间为：6.4758 秒
lineorder_flat_all_3.sql五次平均执行时间为：2.4112 秒
lineorder_flat_all_4.sql五次平均执行时间为：0.2446 秒
lineorder_flat_all_5.sql五次平均执行时间为：0.3683 秒
lineorder_flat_all_6.sql五次平均执行时间为：2.5895 秒
lineorder_flat_all_7.sql五次平均执行时间为：0.1433 秒
lineorder_flat_all_8.sql五次平均执行时间为：0.1555 秒
lineorder_flat_all_9.sql五次平均执行时间为：0.7408 秒
5.2.3 数据分析
|
SQL |
无projection执行时间（秒） |
启用projection执行时间(秒) |
启用Projection，匹配视图号 |
性能提升 |
|
lineorder_flat_al l_0.sql |
0.4203 |
0.1874 |
lineorder_flat_a ll_cube5 |
124.27 96% |
|
lineorder_flat_al l_10.sql |
20.9677 |
0.2092 |
lineorder_flat_a ll_cube2 |
9922.8 011% |
|
lineorder_flat_al l_11.sql |
7.4551 |
8.1524 | - |
-8.5533 % |
|
lineorder_flat_al l_12.sql |
7.0748 |
1.0646 |
lineorder_flat_a ll_cube0 |
564.55 01% |
|
lineorder_flat_al l_1.sql |
13.5604 |
2.3531 |
lineorder_flat_a ll_cube5 |
476.27 81% |
|
lineorder_flat_al l_2.sql |
17.4962 |
6.4758 |
lineorder_flat_a ll_cube5 |
170.17 82% |
|
lineorder_flat_al l_3.sql |
16.0823 |
2.4112 |
lineorder_flat_a ll_cube4 |
566.98 32% |
|
lineorder_flat_al l_4.sql |
0.2616 |
0.2446 | - |
6.9501 % |
|
lineorder_flat_al l_5.sql |
0.3689 |
0.3683 | - |
0.1629 % |
|
lineorder_flat_al l_6.sql |
2.5517 |
2.5895 | - |
-1.4597 % |
|
lineorder_flat_al l_7.sql |
13.1876 |
0.1433 |
lineorder_flat_a ll_cube3 |
9102.7 913% |
|
lineorder_flat_al l_8.sql |
13.3727 |
0.1555 |
lineorder_flat_a ll_cube3 |
8499.8 071% |
|
lineorder_flat_al l_9.sql |
15.5257 |
0.7408 |
lineorder_flat_a ll_cube3 |
1995.8 018% |
|
总计 |
128.325 |
25.0957 | - |
411.34 26% |
-
lineorder_flat_all_4.sql、lineorder_flat_all_5.sql、lineorder_flat_all_6.sql三条SQL没有group by子句，未推荐projection。
-
lineorder_flat_all_11.sql未查询超过一半的part，ClickHouse不为其匹配projection。
OmnicCache推荐的视图顺序：排在前面优先级高
["lineorder_flat_all_cube2.sql", "lineorder_flat_all_cube4.sql",
"lineorder_flat_all_cube0.sql", "lineorder_flat_all_cube3.sql",
"lineorder_flat_all_cube5.sql", "lineorder_flat_all_cube1.sql"]
视图额外存储空间：
|
视图号 |
server1存储空间（MiB） |
agent1存储空间（MiB） |
agent2存储空间（MiB） |
总计 |
占比 |
|
lineorder_flat_ all_cube0 |
151.09 |
135.17 |
148.42 |
434.68 |
0.1 3% |
|
lineorder_flat_ all_cube1 |
3921.92 |
3819.52 |
3911.68 |
11653. 12 |
3.4 2% |
|
lineorder_flat_ all_cube2 |
32.76 |
28.47 |
31.95 |
93.18 |
0.0 3% |
|
lineorder_flat_ all_cube3 |
229.84 |
206.72 |
226.25 |
662.81 |
0.1 9% |
|
lineorder_flat_ all_cube4 |
33.04 |
28.75 |
32.22 |
94.01 |
0.0 3% |
|
lineorder_flat_ all_cube5 |
1761.28 |
1638.4 |
1740.8 |
5140.4 8 |
1.5 1% |
5.3 单机性能提升测试
1、将以下SQL语句（查询本地表lineorder_flat）分别写入.sql文件中，并放置于“/tmp/sqls”目录下。
SELECT sum(LO_EXTENDEDPRICE * LO_DISCOUNT) AS revenue FROM lineorder_flat WHERE toYear(LO_ORDERDATE) = 1993 AND LO_DISCOUNT BETWEEN 1 AND 3 AND LO_QUANTITY < 25 limit
100;--q1
SELECT sum(LO_EXTENDEDPRICE * LO_DISCOUNT) AS revenue FROM lineorder_flat WHERE toYYYYMM(LO_ORDERDATE) = 199401 AND LO_DISCOUNT BETWEEN 4 AND 6 AND LO_QUANTITY BETWEEN 26 AND 35;--q2
SELECT sum(LO_EXTENDEDPRICE * LO_DISCOUNT) AS revenue FROM lineorder_flat WHERE toISOWeek(LO_ORDERDATE) = 6 AND toYear(LO_ORDERDATE) = 1994 AND LO_DISCOUNT BETWEEN 5 AND 7 AND LO_QUANTITY BETWEEN 26 AND 35;--q3
SELECT sum(LO_REVENUE), toYear(LO_ORDERDATE) AS year, P_BRAND FROM lineorder_flat WHERE P_CATEGORY = 'MFGR#12' AND S_REGION = 'AMERICA' GROUP BY year, P_BRAND ORDER BY year,
P_BRAND;--q4
SELECT sum(LO_REVENUE), toYear(LO_ORDERDATE) AS year, P_BRAND FROM lineorder_flat WHERE P_BRAND >= 'MFGR#2221' AND P_BRAND <= 'MFGR#2228' AND S_REGION = 'ASIA' GROUP BY year, P_BRAND ORDER BY year, P_BRAND;--q5
SELECT sum(LO_REVENUE), toYear(LO_ORDERDATE) AS year, P_BRAND FROM lineorder_flat WHERE P_BRAND = 'MFGR#2239' AND S_REGION = 'EUROPE' GROUP BY year, P_BRAND ORDER BY year,
P_BRAND;--q6
SELECT C_NATION, S_NATION, toYear(LO_ORDERDATE) AS year, sum(LO_REVENUE) AS revenue FROM lineorder_flat WHERE C_REGION = 'ASIA' AND S_REGION = 'ASIA' AND year >= 1992 AND year <= 1997 GROUP BY C_NATION, S_NATION,year ORDER BY year ASC,revenue DESC;--q7
SELECT C_CITY, S_CITY, toYear(LO_ORDERDATE) AS year, sum(LO_REVENUE) AS revenue FROM lineorder_flat WHERE C_NATION = 'UNITED STATES' AND S_NATION = 'UNITED STATES' AND year >= 1992 AND year <= 1997 GROUP BY C_CITY, S_CITY, year ORDER BY year ASC,revenue DESC;--q8
SELECT C_CITY, S_CITY, toYear(LO_ORDERDATE) AS year, sum(LO_REVENUE) AS revenue FROM lineorder_flat WHERE (C_CITY = 'UNITED KI1' OR C_CITY = 'UNITED KI5') AND (S_CITY = 'UNITED KI1' OR S_CITY = 'UNITED KI5') AND year >= 1992 AND year <= 1997 GROUP BY C_CITY, S_CITY, year ORDER BY year ASC, revenue DESC;--q9
SELECT C_CITY, S_CITY, toYear(LO_ORDERDATE) AS year, sum(LO_REVENUE) AS revenue FROM lineorder_flat WHERE (C_CITY = 'UNITED KI1' OR C_CITY = 'UNITED KI5') AND (S_CITY = 'UNITED KI1' OR S_CITY = 'UNITED KI5') AND toYYYYMM(LO_ORDERDATE) = 199712 GROUP BY C_CITY, S_CITY, year ORDER BY year ASC,revenue DESC;--q10
SELECT toYear(LO_ORDERDATE) AS year, C_NATION, sum(LO_REVENUE - LO_SUPPLYCOST) AS profit FROM lineorder_flat WHERE C_REGION = 'AMERICA' AND S_REGION = 'AMERICA' AND (P_MFGR =
'MFGR#1' OR P_MFGR = 'MFGR#2') GROUP BY year, C_NATION ORDER BY year ASC, C_NATION ASC;--q11
SELECT toYear(LO_ORDERDATE) AS year, S_NATION, P_CATEGORY, sum(LO_REVENUE - LO_SUPPLYCOST) AS profit FROM lineorder_flat WHERE C_REGION = 'AMERICA' AND S_REGION = 'AMERICA' AND (year = 1997 OR year = 1998) AND (P_MFGR = 'MFGR#1' OR P_MFGR = 'MFGR#2') GROUP BY year, S_NATION,P_CATEGORY ORDER BY year ASC, S_NATION ASC, P_CATEGORY ASC;--q12
SELECT toYear(LO_ORDERDATE) AS year, S_CITY, P_BRAND, sum(LO_REVENUE - LO_SUPPLYCOST) AS profit FROM lineorder_flat WHERE S_NATION = 'UNITED STATES' AND (year = 1997 OR year = 1998) AND P_CATEGORY = 'MFGR#14' GROUP BY year, S_CITY, P_BRAND ORDER BY year ASC, S_CITY ASC, P_BRAND ASC;--q13
如下图所示：
因为分布式性能测试中的每个节点的distributed_test.lineorder_flat都有10亿行数据，且构建了projection。这里直接使用一台节点进行单机性能提升测试。
2、测试关闭projection的执行时间。
sh measure_performance.sh /tmp/sqls 0
脚本输出为：
/tmp/sqls/lineorder_flat_10.sql五次平均执行时间为：0.4130 秒
/tmp/sqls/lineorder_flat_11.sql五次平均执行时间为：21.5681 秒
/tmp/sqls/lineorder_flat_12.sql五次平均执行时间为：6.8846 秒
/tmp/sqls/lineorder_flat_13.sql五次平均执行时间为：7.2954 秒
/tmp/sqls/lineorder_flat_1.sql五次平均执行时间为：2.4973 秒
/tmp/sqls/lineorder_flat_2.sql五次平均执行时间为：0.3634 秒
/tmp/sqls/lineorder_flat_3.sql五次平均执行时间为：0.1863 秒
/tmp/sqls/lineorder_flat_4.sql五次平均执行时间为：15.3781 秒
/tmp/sqls/lineorder_flat_5.sql五次平均执行时间为：13.3549 秒
/tmp/sqls/lineorder_flat_6.sql五次平均执行时间为：13.7589 秒
/tmp/sqls/lineorder_flat_7.sql五次平均执行时间为：15.3541 秒
/tmp/sqls/lineorder_flat_8.sql五次平均执行时间为：16.7528 秒
/tmp/sqls/lineorder_flat_9.sql五次平均执行时间为：12.5798 秒
3、测试开启projection的执行时间。
sh measure_performance.sh /tmp/sqls 1
脚本输出为：
/tmp/sqls/lineorder_flat_10.sql五次平均执行时间为：0.1653 秒
/tmp/sqls/lineorder_flat_11.sql五次平均执行时间为：0.1974 秒
/tmp/sqls/lineorder_flat_12.sql五次平均执行时间为：0.7566 秒
/tmp/sqls/lineorder_flat_13.sql五次平均执行时间为：7.6826 秒
/tmp/sqls/lineorder_flat_1.sql五次平均执行时间为：2.4996 秒
/tmp/sqls/lineorder_flat_2.sql五次平均执行时间为：0.3270 秒
/tmp/sqls/lineorder_flat_3.sql五次平均执行时间为：0.1747 秒
/tmp/sqls/lineorder_flat_4.sql五次平均执行时间为：0.6892 秒
/tmp/sqls/lineorder_flat_5.sql五次平均执行时间为：0.1150 秒
/tmp/sqls/lineorder_flat_6.sql五次平均执行时间为：0.1025 秒
/tmp/sqls/lineorder_flat_7.sql五次平均执行时间为：1.1884 秒
/tmp/sqls/lineorder_flat_8.sql五次平均执行时间为：5.1712 秒
/tmp/sqls/lineorder_flat_9.sql五次平均执行时间为：1.2678 秒
数据分析：
|
SQL |
无projection执行时间（秒） |
启用projection执行时间(秒) |
启用Projection，匹配视图号 |
性能提升 |
|
lineorder_flat_1.sql |
2.4973 |
2.4996 | - |
-0.0920 % |
|
lineorder_flat_2.sql |
0.3634 |
0.327 | - |
11.131 5% |
|
lineorder_flat_3.sql |
0.1863 |
0.1747 | - |
6.6400 % |
|
lineorder_flat_4.sql |
15.3781 |
0.6892 |
lineorder_flat_a ll_cube3 |
2131.2 972% |
|
lineorder_flat_5.sql |
13.3549 |
0.115 |
lineorder_flat_a ll_cube3 |
11512. 9565% |
|
lineorder_flat_6.sql |
13.7589 |
0.1025 |
lineorder_flat_a ll_cube3 |
13323. 3171% |
|
lineorder_flat_7.sql |
15.3541 |
1.1884 |
lineorder_flat_a ll_cube4 |
1191.9 976% |
|
lineorder_flat_8.sql |
16.7528 |
5.1712 |
lineorder_flat_a ll_cube5 |
223.96 35% |
|
lineorder_flat_9.sql |
12.5798 |
1.2678 |
lineorder_flat_a ll_cube5 |
892.25 43% |
|
lineorder_flat_10.sql |
0.413 |
0.1653 |
lineorder_flat_a ll_cube5 |
149.84 88% |
|
lineorder_flat_11.sql |
21.5681 |
0.1974 |
lineorder_flat_a ll_cube2 |
10826. 0892% |
|
lineorder_flat_12.sql |
6.8846 |
0.7566 |
lineorder_flat_a ll_cube0 |
809.93 92% |
|
lineorder_flat_13.sql |
7.2954 |
7.6826 | - |
-5.0400 % |
|
总计 |
126.3867 |
20.3373 | - |
521.45 27% |
lineorder_flat_1.sql、lineorder_flat_2.sql、lineorder_flat_3.sql三条SQL没有group by子句，未推荐projection。lineorder_flat_13.sql未查询超过一半的part，ClickHouse不为其匹配projection。
6 CBG数据集测试
6.1 准备测试数据
请使用以下脚本生成30亿行数据，其中变量w控制生成行数，单位为万行。
#!/usr/bin/env python
# -*- coding: utf-8 -*
import random
import time
import csv
import io
from multiprocessing import Process
def writelog(fileName,count,num):
tuparr=[]
while count < num:
with io.open(fileName,mode='a+') as f:
dateTime = time.strftime('%Y-%m-%d',time.localtime(random.randint(1635523200, 1635609600)))
appNameNew = []
appNameNew.append('维修受理完成时间'+str(random.randint(0,100)))
appNameNew.append('激活日期'+str(random.randint(0,1000)))
appNameNew.append('上市月份'+str(random.randint(0,1000)))
appNameNew.append('设备品牌'+str(random.randint(0,100)))
appNameNew.append('产品线'+str(random.randint(0,100)))
appNameNew.append('产品线设备系列名称'+str(random.randint(0,100)))
appNameNew.append('产品线new'+str(random.randint(0,100)))
appNameNew.append('SPDT'+str(random.randint(0,100000)))
appNameNew.append('标准设备系列名称'+str(random.randint(0,1000)))
appNameNew.append(random.choice(['HUAWEI MATE 10','HUAWEI MATE 10 PRO','HUAWEI MATE 10 保时捷设计','HUAWEI MATE 20','HUAWEI MATE 20 PRO','HUAWEI MATE 20 PRO (UD','HUAWEI MATE 20 RS 保时捷设计','HUAWEI MATE 20 X','HUAWEI MATE 20 X (5G','HUAWEI MATE 30','HUAWEI MATE 30 5G','HUAWEI MATE 30 PRO','HUAWEI MATE 30 PRO 5G','HUAWEI MATE 30 RS 保时捷设计','HUAWEI MATE 40','HUAWEI MATE 40 PRO','HUAWEI MATE 40 PRO+','HUAWEI MATE 40 PRO 4G','HUAWEI MATE 40 RS 保时捷设计','HUAWEI MATE 40 RS 保时捷设计 典藏版','HUAWEI NOVA 4','HUAWEI NOVA 4E','HUAWEI NOVA 5','HUAWEI NOVA 5I','HUAWEI NOVA 5I PRO','HUAWEI NOVA 5 PRO','HUAWEI NOVA 5Z','HUAWEI NOVA 6','HUAWEI NOVA 6 (5G','HUAWEI NOVA 6 SE','HUAWEI NOVA 7 5G','HUAWEI NOVA 7 PRO 5G','HUAWEI NOVA 7 PRO 5G 活力版','HUAWEI NOVA 7 SE 5G','HUAWEI NOVA 7 SE 5G 乐活版','HUAWEI NOVA 7 SE 5G 活力版','HUAWEI NOVA 8','HUAWEI NOVA 8 PRO','HUAWEI NOVA 8 PRO 4G','HUAWEI NOVA 8 SE','HUAWEI NOVA 8 SE 活力版','HUAWEI NOVA 9','HUAWEI NOVA 9 PRO','HUAWEI P20','HUAWEI P20 PRO','HUAWEI P30','HUAWEI P30 PRO','HUAWEI P40 4G','HUAWEI P40 5G','HUAWEI P40 PRO','HUAWEI P40 PRO+','HUAWEI P50','HUAWEI P50 PRO 4G']))
appNameNew.append('设备EMUI版本'+str(random.randint(0,100)))
appNameNew.append('设备价格范围'+str(random.randint(0,100)))
appNameNew.append(random.choice(["32GB","64GB","128GB","256GB"]))
appNameNew.append(random.choice(["32GB","64GB","128GB","256GB"]))
appNameNew.append(random.choice(["红","绿","蓝","黑"]))
appNameNew.append('屏幕尺寸'+str(random.randint(0,10)))
appNameNew.append('分辨率'+str(random.randint(0,10)))
appNameNew.append('海外机型标志'+str(random.randint(0,100)))
appNameNew.append('老旧机型标志'+str(random.randint(0,100)))
appNameNew.append(random.choice(["男","女"]))
appNameNew.append('年龄范围'+str(random.randint(0,100)))
appNameNew.append('职业'+str(random.randint(0,1000)))
appNameNew.append('常驻省份'+str(random.randint(0,100)))
appNameNew.append('常驻城市'+str(random.randint(0,1000)))
appNameNew.append('常驻城市dengji'+str(random.randint(0,1000)))
appNameNew.append(random.choice(["1个月","2个月","3个月","4个月","5个月","6个月","7个月","8个月","9个月","10个月","11个月","12个月","13个月","14个月","15个月","16个月","17个月","18个月","19个月","20 个月","21个月","22个月","23个月","24个月","25个月","26个月","27个月","28个月","29个月","30个月","31个月","32个月","33个月","34个月","35个月","36个月","37个月","38个月","39个月","40个月","41个月","42个月","43个月","44个月","45个月","46个月","47个月","48个月"]))
appNameNew.append(random.choice(["1个月","2个月","3个月","4个月","5个月","6个月","7个月","8个月","9个月","10个月","11个月","12个月","13个月","14个月","15个月","16个月","17个月","18个月","19个月","20 个月","21个月","22个月","23个月","24个月","25个月","26个月","27个月","28个月","29个月","30个月","31个月","32个月","33个月","34个月","35个月","36个月","37个月","38个月","39个月","40个月","41个月","42个月","43个月","44个月","45个月","46个月","47个月","48个月"]))
appNameNew.append('剩余RAM分段'+str(random.randint(0,50)))
appNameNew.append('剩余ROM分段'+str(random.randint(0,50)))
appNameNew.append('卡顿程度'+str(random.randint(0,10)))
appNameNew.append('容量'+str(random.randint(100,120)))
appNameNew.append('衰减表只'+str(random.randint(0,3)))
appNameNew.append('老化标志'+str(random.randint(0,10)))
appNameNew.append('充电圈数区间'+str(random.randint(50,70)))
appNameNew.append('电池损耗区间'+str(random.randint(50,70)))
appNameNew.append('故障维修次数'+str(random.randint(0,10)))
appNameNew.append('故障维修方法'+str(random.randint(0,10)))
appNameNew.append('服务'+str(random.randint(1,10)))
appNameNew.append('插卡'+str(random.randint(1,10)))
appNameNew.append('开通'+str(random.randint(0,100)))
appNameNew.append(random.randint(0,1000))
appNameNew.append(random.randint(0,1000))
appNameNew.append(random.randint(0,1000))
appNameNew.append(random.randint(0,1000))
appNameNew.append(random.randint(0,1000))
appNameNew.append('年龄来源'+str(random.randint(0,100)))
appNameNew.append('性别来源'+str(random.randint(0,100)))
appNameNew.append('高可信度标志'+str(random.randint(0,100)))
appNameNew.append(dateTime)
tuparr.append(appNameNew)
#print(tuparr)
if(count%10000==0):
writeData = csv.writer(f)
writeData.writerows(tuparr)
tuparr=[]
count+=1
Processlist =[]
w = 300000
num = (2000*w) + 10
s = 0
t1 = Process(target=writelog, args=['dws1.txt', s + 1, s + num])
t2 = Process(target=writelog, args=['dws2.txt', s + 1, s + num])
t3 = Process(target=writelog, args=['dws3.txt', s + 1, s + num])
t4 = Process(target=writelog, args=['dws4.txt', s + 1, s + num])
t5 = Process(target=writelog, args=['dws5.txt', s + 1, s + num])
Processlist.append(t1)
Processlist.append(t2)
Processlist.append(t3)
Processlist.append(t4)
Processlist.append(t5)
if __name__ == '__main__':
for t in Processlist:
t.start()
6.2 分布式性能提升测试
6.2.1 构建分布式库表
1、在distributed_test中创建本地表dws_useroper_device_persona_mlb_ds。
CREATE TABLE distributed_test.dws_useroper_device_persona_mlb_ds on cluster mycluster
(
`sr_accept_date` Nullable(String) COMMENT '维修受理完成时间',
`activate_date` Nullable(String) COMMENT '激活日期',
`device_launch_month` Nullable(String) COMMENT '上市月份',
`device_brand` Nullable(String) COMMENT '设备品牌',
`product_line` Nullable(String) COMMENT '产品线',
`product_line_series_name` Nullable(String) COMMENT '产品线设备系列名称',
`new_product_line` Nullable(String) COMMENT '产品线(新)',
`new_product_line_series_name` Nullable(String) COMMENT 'SPDT(新)',
`std_series_name` Nullable(String) COMMENT '标准设备系列名称',
`device_prod_sprdname` Nullable(String) COMMENT '设备产品传播名',
`device_emui_ver` Nullable(String) COMMENT '设备EMUI版本',
`device_price_scope` Nullable(String) COMMENT '设备价格范围',
`rom` Nullable(String) COMMENT 'ROM(GB)',
`ram` Nullable(String) COMMENT 'RAM(GB)',
`device_color` Nullable(String) COMMENT '设备颜色',
`screen_size` Nullable(String) COMMENT '屏幕尺寸',
`resolution` Nullable(String) COMMENT '分辨率',
`ovsea_model_flg` Nullable(String) COMMENT '海外机型标志',
`old_model_flg` Nullable(String) COMMENT '老旧机型标志',
`forecast_gender` Nullable(String) COMMENT '性别',
`forecast_agerange` Nullable(String) COMMENT '年龄范围',
`career` Nullable(String) COMMENT '职业',
`residence_prov` Nullable(String) COMMENT '常驻省份',
`residence_city` Nullable(String) COMMENT '常驻城市',
`residence_city_level` Nullable(String) COMMENT '常驻城市等级',
`device_launch_duration` Nullable(String) COMMENT '设备上市时长(第几个月)',
`usage_duration_segment` Nullable(String) COMMENT '用机时长分段',
`remain_ram_segment` Nullable(String) COMMENT '剩余RAM分段',
`remain_rom_segment` Nullable(String) COMMENT '剩余ROM分段',
`stop_degree_flg` Nullable(String) COMMENT '卡顿程度',
`battery_volume` Nullable(String) COMMENT '电池设计容量(mAh)',
`battery_atnuatn_flg` Nullable(String) COMMENT '电池衰减标志',
`battery_aging_flg` Nullable(String) COMMENT '电池老化标志',
`charge_laps_range` Nullable(String) COMMENT '充电圈数区间',
`battery_loss_range` Nullable(String) COMMENT '电池损耗区间',
`fault_maint_cnt` Nullable(String) COMMENT '故障维修次数',
`maint_method` Nullable(String) COMMENT '故障类维修方法',
`service_solution_name` Nullable(String) COMMENT '服务交付方案名称',
`plug_card_flg` Nullable(String) COMMENT '插卡标志',
`open_user_experi_plan_flg` Nullable(String) COMMENT '开通用户体验计划标志',
`day_new_device_cnt` Nullable(Int64) COMMENT '日增设备数',
`day_active_device_cnt` Nullable(Int64) COMMENT '日活设备数',
`day7_active_device_cnt` Nullable(Int64) COMMENT '近7天活跃设备数',
`day30_active_device_cnt` Nullable(Int64) COMMENT '近30天活跃设备数',
`week_active_device_cnt` Nullable(Int64) COMMENT '当周活跃设备数',
`age_src` Nullable(String) COMMENT '年龄来源',
`gender_src` Nullable(String) COMMENT '性别来源',
`high_credible_flg` Nullable(String) COMMENT '高可信度标志',
`pt_d` Date DEFAULT today() COMMENT '天分区'
)
ENGINE = ReplicatedMergeTree('/clickhouse/tables/finebiUserOper_cluster_23shards_2replicas/{shard}/ UserOper_local.dws_useroper_device_persona_mlb_ds_001', '{replica}') PARTITION BY toYYYYMMDD(pt_d)
ORDER BY tuple()
SETTINGS index_granularity = 8192, use_minimalistic_part_header_in_zookeeper = 1, storage_policy = 'default';
2、在所有节点的distributed_test中创建分布式表dws_useroper_device_persona_mlb_ds_all。
CREATE TABLE IF NOT EXISTS
distributed_test.dws_useroper_device_persona_mlb_ds_all ON CLUSTER mycluster AS distributed_test.dws_useroper_device_persona_mlb_ds
ENGINE = Distributed(mycluster, distributed_test, dws_useroper_device_persona_mlb_ds, rand());
3、导入数据进入测试数据准备目录执行。
cat ./dws[1-5].txt| clickhouse --client -h 192.168.58.168 --port 19000 -format_csv_delimiter="," --query="INSERT INTO distributed_test.dws_useroper_device_persona_mlb_ds_all FORMAT CSV";
6.2.2 执行OmniMV运行流程
1、清空system.query_log中distributed_test数据库的查询记录。
alter table system.query_log delete where databases=['distributed_test'];
2、执行cbg的sql。
CBG提供了25条查询SQL。需要将其改写为查询分布式表。

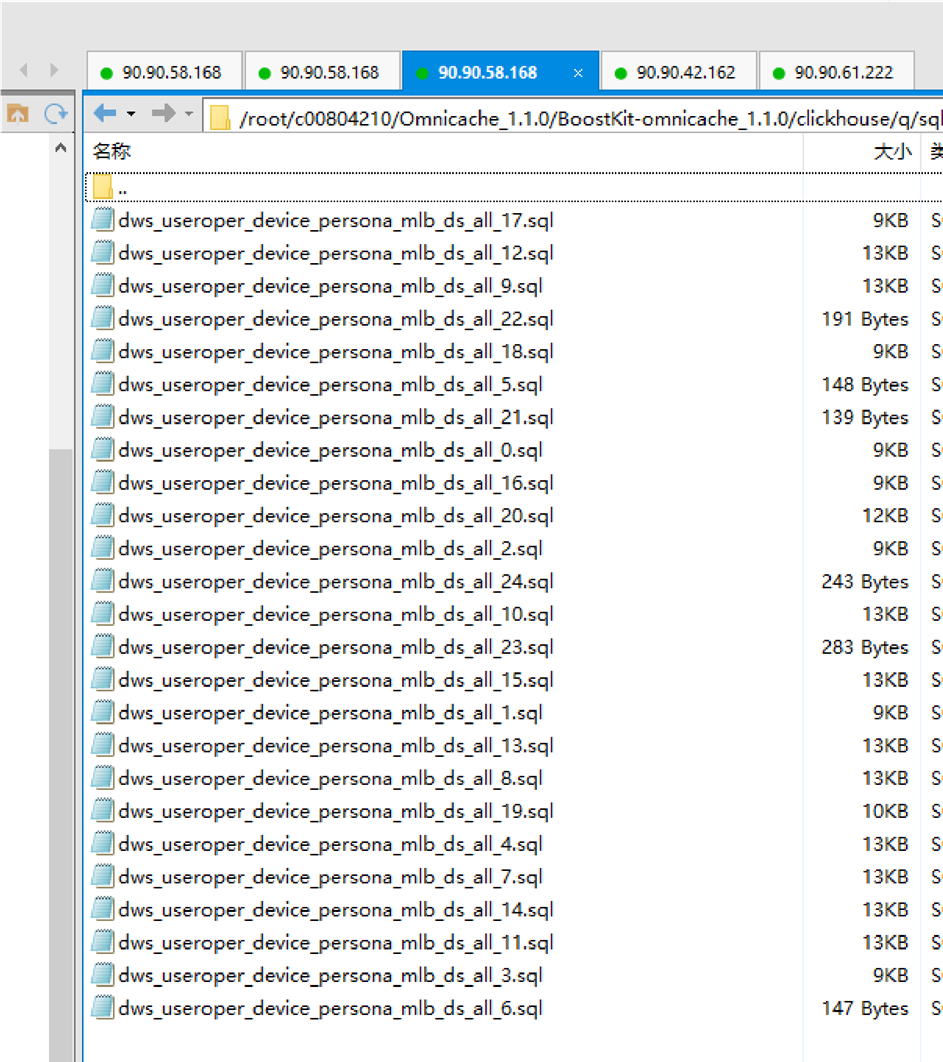

例如dws_useroper_device_persona_mlb_ds_all，改写后SQL如下附件cbg_sqls_distributed_table.txt。
3、配置OmniMV配置文件参考配置如下。
[raw_file]
# 数据库名称
database = distributed_test work_path = ./clickhouse
[clickhouse]
ck_host = 192.168.58.168 ck_port = 19000
# 集群名称（只查询本地表可不配置）
cluster_name = mycluster num_round = 5
# 是否启用clickhouse projection功能[True or False] enable_projection = False
# 创建和删除projection的超时时间，单位（s）
projection_wait_time = 3600
# 数据压缩比: 视图产生的数据行数/sql查询需要处理的行数read_rows，数据压缩比越小越好 projection_compress_ratio = 0.8
# SQL运行的阈值，小于这个时间的sql不考虑推荐视图，单位（ms） sql_running_time_threshold = 1
# 每张表推荐出来的projection数量的上限
projection_limit_each_table = 10
# 推荐Projection时配置表工作模式，为True,则【clickhouse_tables】只能配置分布式表，为False，则
【clickhouse_tables】只能配置本地表 is_distributed_table = True
# 列举一些重点的表来进行推荐，表之间用逗号分隔。在多表场景下，需要填写all, e.g. clickhouse_tables = all
clickhouse_tables = dws_useroper_device_persona_mlb_ds_all
# 指定从哪个系统表中查询query相关信息，一般本地表会从system.query_log中查询信息，分布式表可能从别的表中获取信息
query_log_table = system.query_log
# （初次提取query）从query_log中对每张表提取query信息，提取到的query需要是指定数据库，指定数据表，运行时间超过配置文件中阈值的query数量
# （增量提取query），增量提取的query数量也是该参数指定 query_limit_each_table = 30
# 在多表场景下，配置提取的query总数量 query_limit_mutil_table = 15
# 是否为包含条件的聚合函数sql推荐projection (例如select sum(multiif..)) [True or False]
# 如果为True:则去除条件表达式后推荐，为False：这条sql不推荐projection projection_with_conditional_functions = False
# 是否需要对新建的projection物化历史的数据，默认不物化历史数据 [True or False] allows_materialize_projection = True
# 指定要删除的Projection名称，使用 "table_name.projection_name"进行指定，table_name只能是本地表。多个projection之间使用(英文)逗号分割。
# 如果所有节点都存在此"table_name.projection_name"，且都需要删除，需要将【is_distributed_table】配置为True
# 如果不需要删除Projection，请将其置为None，以防止误操作 drop_projections = None
[train]
# 通过对出现过的聚合列进行排列组合，以此来扩大训练数据的数量，这里可以限制 大的扩充的训练sql的数量 max_data_count = 20 epochs = 100 estimators = 50 max_depth = 5 learning_rate = 0.05 [recommend]
# recommend strategy
# options: ['sql', 'compress_ratio']
# 选择compress_ratio表示按照projection压缩比来排序，选择sql，表示按照projection可以匹配sql的数量来排序 candidate_strategy = compress_ratio
4、执行数据库初始化命令。
python main.pyc clickhouse init_database
5、执行提取SQL命令。
python main.pyc clickhouse extract_sqls
虽然配置了每张表提取30条SQL，但清空执行记录后只执行了25条SQL，因此只提取到了25条SQL。
6、执行解析projection命令。
python main.pyc clickhouse generate_views

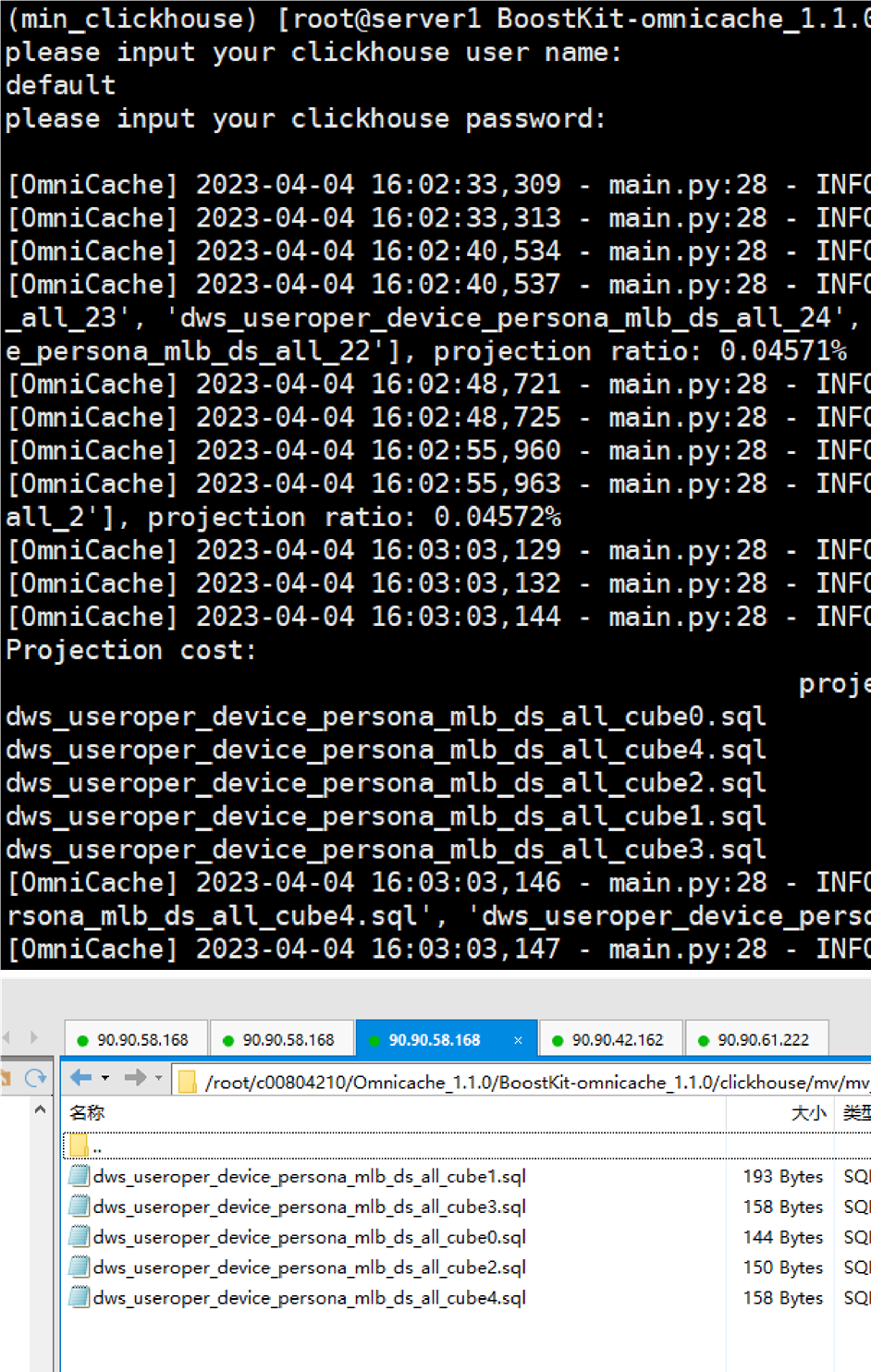

产生5条projections：
7、创建projections。
python main.pyc clickhouse create_projections
在各个节点的本地表lineorder_flat上均创建了视图。
8、关闭projection，测试25条SQL运行时间。
sh measure_performance.sh /tmp/pycharm_project_430/clickhouse 0
/“tmp/pycharm_project_430/clickhouse”参数为sql文件夹路径，第二个参数为是否启用projection，“0”表示禁用，“1”表示启用。sql文件夹路径在配置文件中的work_path下的“/q/sql”中。
脚本输出为：
dws_useroper_device_persona_mlb_ds_all_0.sql五次平均执行时间为：46.6810 秒
dws_useroper_device_persona_mlb_ds_all_10.sql五次平均执行时间为：0.7314 秒
dws_useroper_device_persona_mlb_ds_all_11.sql五次平均执行时间为：0.6443 秒
dws_useroper_device_persona_mlb_ds_all_12.sql五次平均执行时间为：0.6369 秒
dws_useroper_device_persona_mlb_ds_all_13.sql五次平均执行时间为：22.6676 秒
dws_useroper_device_persona_mlb_ds_all_14.sql五次平均执行时间为：0.6935 秒
dws_useroper_device_persona_mlb_ds_all_15.sql五次平均执行时间为：0.5505 秒
dws_useroper_device_persona_mlb_ds_all_16.sql五次平均执行时间为：30.9949 秒
dws_useroper_device_persona_mlb_ds_all_17.sql五次平均执行时间为：26.0273 秒
dws_useroper_device_persona_mlb_ds_all_18.sql五次平均执行时间为：28.7653 秒
dws_useroper_device_persona_mlb_ds_all_19.sql五次平均执行时间为：29.7989 秒
dws_useroper_device_persona_mlb_ds_all_1.sql五次平均执行时间为：30.6384 秒
dws_useroper_device_persona_mlb_ds_all_20.sql五次平均执行时间为：0.4865 秒
dws_useroper_device_persona_mlb_ds_all_21.sql五次平均执行时间为：0.3196 秒
dws_useroper_device_persona_mlb_ds_all_22.sql五次平均执行时间为：5.6267 秒
dws_useroper_device_persona_mlb_ds_all_23.sql五次平均执行时间为：0.0663 秒
dws_useroper_device_persona_mlb_ds_all_24.sql五次平均执行时间为：5.6848 秒
dws_useroper_device_persona_mlb_ds_all_2.sql五次平均执行时间为：45.7762 秒
dws_useroper_device_persona_mlb_ds_all_3.sql五次平均执行时间为：31.0191 秒
dws_useroper_device_persona_mlb_ds_all_4.sql五次平均执行时间为：0.6708 秒
dws_useroper_device_persona_mlb_ds_all_5.sql五次平均执行时间为：0.0796 秒
dws_useroper_device_persona_mlb_ds_all_6.sql五次平均执行时间为：0.0824 秒
dws_useroper_device_persona_mlb_ds_all_7.sql五次平均执行时间为：0.6179 秒
dws_useroper_device_persona_mlb_ds_all_8.sql五次平均执行时间为：0.6788 秒
dws_useroper_device_persona_mlb_ds_all_9.sql五次平均执行时间为：0.6545 秒
9、开启projection，测试25条SQL运行时间，
sh measure_performance.sh /tmp/pycharm_project_430/clickhouse 1
脚本输出为：
dws_useroper_device_persona_mlb_ds_all_0.sql五次平均执行时间为：0.2727 秒
dws_useroper_device_persona_mlb_ds_all_10.sql五次平均执行时间为：0.6687 秒
dws_useroper_device_persona_mlb_ds_all_11.sql五次平均执行时间为：0.6619 秒
dws_useroper_device_persona_mlb_ds_all_12.sql五次平均执行时间为：0.6504 秒
dws_useroper_device_persona_mlb_ds_all_13.sql五次平均执行时间为：22.5307 秒
dws_useroper_device_persona_mlb_ds_all_14.sql五次平均执行时间为：0.7521 秒
dws_useroper_device_persona_mlb_ds_all_15.sql五次平均执行时间为：0.5833 秒
dws_useroper_device_persona_mlb_ds_all_16.sql五次平均执行时间为：0.2670 秒
dws_useroper_device_persona_mlb_ds_all_17.sql五次平均执行时间为：0.2830 秒
dws_useroper_device_persona_mlb_ds_all_18.sql五次平均执行时间为：0.2477 秒
dws_useroper_device_persona_mlb_ds_all_19.sql五次平均执行时间为：0.2553 秒
dws_useroper_device_persona_mlb_ds_all_1.sql五次平均执行时间为：0.2320 秒
dws_useroper_device_persona_mlb_ds_all_20.sql五次平均执行时间为：0.5371 秒
dws_useroper_device_persona_mlb_ds_all_21.sql五次平均执行时间为：0.1113 秒
dws_useroper_device_persona_mlb_ds_all_22.sql五次平均执行时间为：0.1003 秒
dws_useroper_device_persona_mlb_ds_all_23.sql五次平均执行时间为：0.0716 秒
dws_useroper_device_persona_mlb_ds_all_24.sql五次平均执行时间为：0.0876 秒
dws_useroper_device_persona_mlb_ds_all_2.sql五次平均执行时间为：0.2383 秒
dws_useroper_device_persona_mlb_ds_all_3.sql五次平均执行时间为：0.2250 秒
dws_useroper_device_persona_mlb_ds_all_4.sql五次平均执行时间为：0.6925 秒
dws_useroper_device_persona_mlb_ds_all_5.sql五次平均执行时间为：0.0815 秒
dws_useroper_device_persona_mlb_ds_all_6.sql五次平均执行时间为：0.0865 秒
dws_useroper_device_persona_mlb_ds_all_7.sql五次平均执行时间为：0.7086 秒
dws_useroper_device_persona_mlb_ds_all_8.sql五次平均执行时间为：0.8154 秒
dws_useroper_device_persona_mlb_ds_all_9.sql五次平均执行时间为：0.7459 秒
6.2.3 数据分析
|
SQL |
无projection执行时间（秒） |
启用projection执行时间（秒） |
匹配视图号 |
性能提升 |
|
dws_useroper_device_persona_mlb_ds_all_0 |
46.681 |
0.2727 |
dws_useroper_device_ persona_mlb_ds_all_c ube1 |
1701 8.07 85% |
|
dws_useroper_device_persona_mlb_ds_a ll_10 |
0.7314 |
0.6687 |
9.37 64% | |
|
dws_useroper_device_persona_mlb_ds_a ll_11 |
0.6443 |
0.6619 |
-2.65 90% | |
|
dws_useroper_device_persona_mlb_ds_a ll_12 |
0.6369 |
0.6504 |
-2.07 56% | |
|
dws_useroper_device_persona_mlb_ds_a ll_13 |
22.6676 |
22.5307 |
0.60 76% | |
|
dws_useroper_device_persona_mlb_ds_a ll_14 |
0.6935 |
0.7521 |
-7.79 15% | |
|
dws_useroper_device_persona_mlb_ds_a ll_15 |
0.5505 |
0.5833 |
-5.62 32% | |
|
dws_useroper_device_persona_mlb_ds_a ll_16 |
30.9949 |
0.267 |
dws_useroper_device_ persona_mlb_ds_all_c ube2 |
1150 8.57 68% |
|
dws_useroper_device_persona_mlb_ds_a ll_17 |
26.0273 |
0.283 |
dws_useroper_device_ persona_mlb_ds_all_c ube1 |
9096 .925 8% |
|
dws_useroper_device_persona_mlb_ds_a ll_18 |
28.7653 |
0.2477 |
dws_useroper_device_ persona_mlb_ds_all_c ube0 |
1151 2.95 92% |
|
dws_useroper_device_persona_mlb_ds_a ll_19 |
29.7989 |
0.2553 |
dws_useroper_device_ persona_mlb_ds_all_c ube4 |
1157 2.11 12% |
|
dws_useroper_device_persona_mlb_ds_all_1 |
30.6384 |
0.232 |
dws_useroper_device_ persona_mlb_ds_all_c ube1 |
1310 6.20 69% |
|
dws_useroper_device_persona_mlb_ds_a ll_20 |
0.4865 |
0.5371 |
-9.42 10% | |
|
dws_useroper_device_persona_mlb_ds_a ll_21 |
0.3196 |
0.1113 |
dws_useroper_device_ persona_mlb_ds_all_c ube0 |
187. 1518 % |
|
dws_useroper_device_persona_mlb_ds_a ll_22 |
5.6267 |
0.1003 |
dws_useroper_device_ persona_mlb_ds_all_c ube1 |
5509 .870 4% |
|
dws_useroper_device_persona_mlb_ds_a ll_23 |
0.0663 |
0.0716 |
-7.40 22% | |
|
dws_useroper_device_persona_mlb_ds_a ll_24 |
5.6848 |
0.0876 |
dws_useroper_device_ persona_mlb_ds_all_c ube1 |
6389 .497 7% |
|
dws_useroper_device_persona_mlb_ds_all_2 |
45.7762 |
0.2383 |
dws_useroper_device_ persona_mlb_ds_all_c ube3 |
1910 9.48 38% |
|
dws_useroper_device_persona_mlb_ds_all_3 |
31.0191 |
0.225 |
dws_useroper_device_ persona_mlb_ds_all_c ube3 |
1368 6.26 67% |
|
dws_useroper_device_persona_mlb_ds_all_4 |
0.6708 |
0.6925 |
-3.13 36% | |
|
dws_useroper_device_persona_mlb_ds_all_5 |
0.0796 |
0.0815 |
-2.33 13% | |
|
dws_useroper_device_persona_mlb_ds_all_6 |
0.0824 |
0.0865 |
-4.73 99% | |
|
dws_useroper_device_persona_mlb_ds_all_7 |
0.6179 |
0.7086 |
-12.7 999 % | |
|
dws_useroper_device_persona_mlb_ds_all_8 |
0.6788 |
0.8154 |
-16.7 525 % | |
|
dws_useroper_device_persona_mlb_ds_all_9 |
0.6545 |
0.7459 |
-12.2 537 % | |
|
总计 |
310.5932 |
31.9064 |
873. 4511 % |
6.3 单机性能提升测试
1、将以下SQL语句（查询本地表dws_useroper_device_persona_mlb_ds）分别输入.sql文件中，并放置于“/tmp/cbg_sqls”目录下。

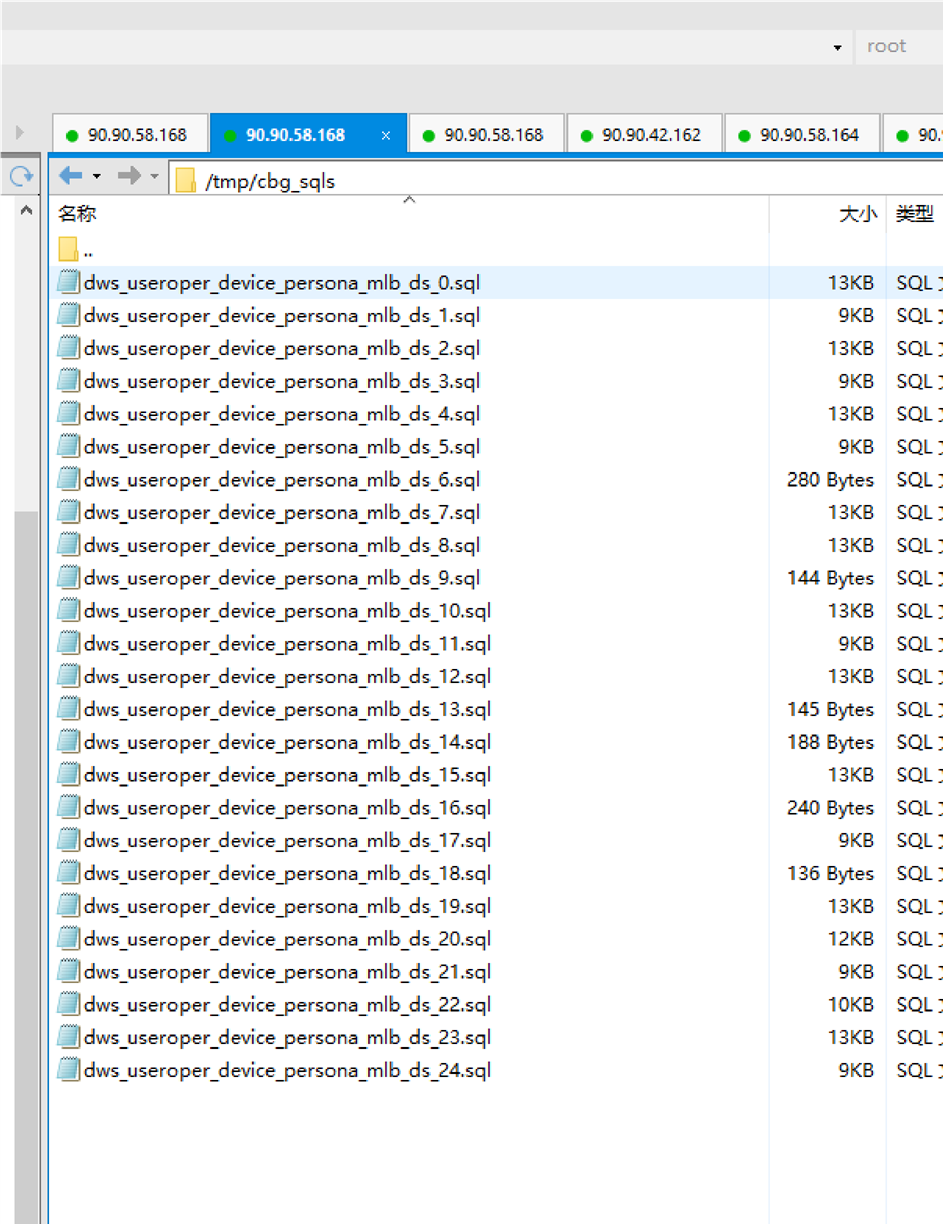

如下图所示：
因为分布式性能测试中的每个节点的distributed_test.dws_useroper_device_persona_mlb_ds都有10亿行数据，且构建了projection。这里直接使用一台节点进行单机性能提升测试。
2、测试关闭projection的执行时间。
sh measure_performance.sh /tmp/cbg_sqls 0
脚本输出为：
dws_useroper_device_persona_mlb_ds_0.sql五次平均执行时间为：0.5102 秒
dws_useroper_device_persona_mlb_ds_10.sql五次平均执行时间为：0.4733 秒
dws_useroper_device_persona_mlb_ds_11.sql五次平均执行时间为：20.4022 秒
dws_useroper_device_persona_mlb_ds_12.sql五次平均执行时间为：0.4961 秒
dws_useroper_device_persona_mlb_ds_13.sql五次平均执行时间为：0.0726 秒
dws_useroper_device_persona_mlb_ds_14.sql五次平均执行时间为：1.8206 秒
dws_useroper_device_persona_mlb_ds_15.sql五次平均执行时间为：0.5058 秒
dws_useroper_device_persona_mlb_ds_16.sql五次平均执行时间为：1.7877 秒
dws_useroper_device_persona_mlb_ds_17.sql五次平均执行时间为：20.6862 秒
dws_useroper_device_persona_mlb_ds_18.sql五次平均执行时间为：0.2373 秒
dws_useroper_device_persona_mlb_ds_19.sql五次平均执行时间为：0.4287 秒
dws_useroper_device_persona_mlb_ds_1.sql五次平均执行时间为：20.7353 秒
dws_useroper_device_persona_mlb_ds_20.sql五次平均执行时间为：0.4021 秒
dws_useroper_device_persona_mlb_ds_21.sql五次平均执行时间为：17.8188 秒
dws_useroper_device_persona_mlb_ds_22.sql五次平均执行时间为：20.6722 秒
dws_useroper_device_persona_mlb_ds_23.sql五次平均执行时间为：0.5312 秒
dws_useroper_device_persona_mlb_ds_24.sql五次平均执行时间为：34.8628 秒
dws_useroper_device_persona_mlb_ds_2.sql五次平均执行时间为：0.5608 秒
dws_useroper_device_persona_mlb_ds_3.sql五次平均执行时间为：34.9922 秒
dws_useroper_device_persona_mlb_ds_4.sql五次平均执行时间为：0.4801 秒
dws_useroper_device_persona_mlb_ds_5.sql五次平均执行时间为：20.6449 秒
dws_useroper_device_persona_mlb_ds_6.sql五次平均执行时间为：0.0573 秒
dws_useroper_device_persona_mlb_ds_7.sql五次平均执行时间为：16.3198 秒
dws_useroper_device_persona_mlb_ds_8.sql五次平均执行时间为：0.5600 秒
dws_useroper_device_persona_mlb_ds_9.sql五次平均执行时间为：0.0723 秒
3、测试开启projection性能。
sh measure_performance.sh /tmp/cbg_sqls 1
脚本输出为：
dws_useroper_device_persona_mlb_ds_0.sql五次平均执行时间为：0.5162 秒
dws_useroper_device_persona_mlb_ds_10.sql五次平均执行时间为：0.4820 秒
dws_useroper_device_persona_mlb_ds_11.sql五次平均执行时间为：0.1564 秒
dws_useroper_device_persona_mlb_ds_12.sql五次平均执行时间为：0.4887 秒
dws_useroper_device_persona_mlb_ds_13.sql五次平均执行时间为：0.0701 秒
dws_useroper_device_persona_mlb_ds_14.sql五次平均执行时间为：0.0860 秒
dws_useroper_device_persona_mlb_ds_15.sql五次平均执行时间为：0.4759 秒
dws_useroper_device_persona_mlb_ds_16.sql五次平均执行时间为：0.0749 秒
dws_useroper_device_persona_mlb_ds_17.sql五次平均执行时间为：0.1364 秒
dws_useroper_device_persona_mlb_ds_18.sql五次平均执行时间为：0.0741 秒
dws_useroper_device_persona_mlb_ds_19.sql五次平均执行时间为：0.4211 秒
dws_useroper_device_persona_mlb_ds_1.sql五次平均执行时间为：0.1462 秒
dws_useroper_device_persona_mlb_ds_20.sql五次平均执行时间为：0.4020 秒
dws_useroper_device_persona_mlb_ds_21.sql五次平均执行时间为：0.1543 秒
dws_useroper_device_persona_mlb_ds_22.sql五次平均执行时间为：0.1579 秒
dws_useroper_device_persona_mlb_ds_23.sql五次平均执行时间为：0.5089 秒
dws_useroper_device_persona_mlb_ds_24.sql五次平均执行时间为：0.1411 秒
dws_useroper_device_persona_mlb_ds_2.sql五次平均执行时间为：0.5367 秒
dws_useroper_device_persona_mlb_ds_3.sql五次平均执行时间为：0.1512 秒
dws_useroper_device_persona_mlb_ds_4.sql五次平均执行时间为：0.4890 秒
dws_useroper_device_persona_mlb_ds_5.sql五次平均执行时间为：0.1532 秒
dws_useroper_device_persona_mlb_ds_6.sql五次平均执行时间为：0.0587 秒
dws_useroper_device_persona_mlb_ds_7.sql五次平均执行时间为：16.2735 秒
dws_useroper_device_persona_mlb_ds_8.sql五次平均执行时间为：0.5896 秒
dws_useroper_device_persona_mlb_ds_9.sql五次平均执行时间为：0.0739 秒
数据分析：
|
SQL |
无projection执行时间（秒） |
启用projection执行时间(秒) |
匹配视图号 |
性能提升 |
|
dws_useroper_device_persona_mlb_ds_all_0 |
0.5102 |
0.5162 |
-1.16 23% | |
|
dws_useroper_device_persona_mlb_ds_a ll_10 |
0.4733 |
0.482 |
-1.80 50% | |
|
dws_useroper_device_persona_mlb_ds_a ll_11 |
20.4022 |
0.1564 |
dws_useroper_device_ persona_mlb_ds_all_c ube2 |
1294 4.88 49% |
|
dws_useroper_device_persona_mlb_ds_a ll_12 |
0.4961 |
0.4887 |
1.51 42% | |
|
dws_useroper_device_persona_mlb_ds_a ll_13 |
0.0726 |
0.0701 |
3.56 63% | |
|
dws_useroper_device_persona_mlb_ds_a ll_cube1 |
1.8206 |
0.086 |
dws_useroper_device_ persona_mlb_ds_all_c ube1 |
2016 .976 7% |
|
dws_useroper_device_persona_mlb_ds_a ll_15 |
0.5058 |
0.4759 |
6.28 28% | |
|
dws_useroper_device_persona_mlb_ds_a ll_16 |
1.7877 |
0.0749 |
dws_useroper_device_ persona_mlb_ds_all_c ube1 |
2286 .782 4% |
|
dws_useroper_device_persona_mlb_ds_a ll_17 |
20.6862 |
0.1364 |
dws_useroper_device_ persona_mlb_ds_all_c ube1 |
1506 5.83 58% |
|
dws_useroper_device_persona_mlb_ds_a ll_18 |
0.2373 |
0.0741 |
dws_useroper_device_ persona_mlb_ds_all_c ube0 |
220. 2429 % |
|
dws_useroper_device_persona_mlb_ds_a ll_19 |
0.4287 |
0.4211 |
1.80 48% | |
|
dws_useroper_device_persona_mlb_ds_all_1 |
20.7353 |
0.1462 |
dws_useroper_device_ persona_mlb_ds_all_c ube3 |
1408 2.83 17% |
|
dws_useroper_device_persona_mlb_ds_a ll_20 |
0.4021 |
0.402 |
0.02 49% | |
|
dws_useroper_device_persona_mlb_ds_a ll_21 |
17.8188 |
0.1543 |
dws_useroper_device_ persona_mlb_ds_all_c ube1 |
1144 8.15 29% |
|
dws_useroper_device_persona_mlb_ds_a ll_22 |
20.6722 |
0.1579 |
dws_useroper_device_ persona_mlb_ds_all_c ube4 |
1299 1.95 69% |
|
dws_useroper_device_persona_mlb_ds_a ll_23 |
0.5312 |
0.5089 |
4.38 20% | |
|
dws_useroper_device_persona_mlb_ds_a ll_24 |
34.8628 |
0.1411 |
dws_useroper_device_ persona_mlb_ds_all_c ube3 |
2460 7.86 68% |
|
dws_useroper_device_persona_mlb_ds_all_2 |
0.5608 |
0.5367 |
4.49 04% | |
|
dws_useroper_device_persona_mlb_ds_all_3 |
34.9922 |
0.1512 |
dws_useroper_device_ persona_mlb_ds_all_c ube1 |
2304 2.98 94% |
|
dws_useroper_device_persona_mlb_ds_all_4 |
0.4801 |
0.489 |
-1.82 00% | |
|
dws_useroper_device_persona_mlb_ds_all_5 |
20.6449 |
0.1532 |
dws_useroper_device_ persona_mlb_ds_all_c ube0 |
1337 5.78 33% |
|
dws_useroper_device_persona_mlb_ds_all_6 |
0.0573 |
0.0587 |
-2.38 50% | |
|
dws_useroper_device_persona_mlb_ds_all_7 |
16.3198 |
16.2735 |
0.28 45% | |
|
dws_useroper_device_persona_mlb_ds_all_8 |
0.56 |
0.5896 |
-5.02 04% | |
|
dws_useroper_device_persona_mlb_ds_all_9 |
0.0723 |
0.0739 |
-2.16 51% | |
|
总计 |
216.1305 |
22.818 |
847. 1930 % |
