OmniShuffle Shuffle加速叠加OmniOperator算子加速特性在Spark引擎上的应用

通过OmniOperator算子加速特性提升算子执行效率，同时使用OmniShuffle Shuffle加速特性优化数据交互过程，实现端到端提升引擎查询性能。

前提条件

使用叠加特性之前请参见安装OmniOperator算子加速特性、安装OmniShuffle特性完成OmniOperator和OmniShuffle安装。

安装OmniShuffle Shuffle加速叠加OmniOperator算子加速特性

  1. 从表3下载得到BoostKit-omnishuffle-spark-3.1.1-1.3.0-aarch64.zip，并上传至服务器的“/home/”目录下。

    “/home”目录用户可自行定义。

  2. 解压BoostKit-omnishuffle-spark-3.1.1-1.3.0-aarch64.zip，获取ock-omniop-shuffle-manager-23.0.0-for-spark-3.1.jar和ock-omniop-tuning-23.0.0-for-spark-3.1.jar，将两个JAR包拷贝到“${OCK_HOME}/jars”目录下，修改权限为550，并分发到所有子节点同样的目录下。

    unzip BoostKit-omnishuffle-spark-3.1.1-1.3.0-aarch64.zip
mv ock-omniop-shuffle-manager-23.0.0-for-spark-3.1.jar $OCK_HOME/jars
mv ock-omniop-tuning-23.0.0-for-spark-3.1.jar $OCK_HOME/jars
chmod 550 $OCK_HOME/jars/ock-omniop-shuffle-manager-23.0.0-for-spark-3.1.jar $OCK_HOME/jars/ock-omniop-tuning-23.0.0-for-spark-3.1.jar
scp ock-omniop-shuffle-manager-23.0.0-for-spark-3.1.jar ock-omniop-tuning-23.0.0-for-spark-3.1.jar xx.xx.xx.xx:$OCK_HOME/jars

    xx.xx.xx.xx为各个子节点的IP地址。

执行Spark引擎

  1. 在“/home”目录下新建shuffle_operator.conf文件，关于shuffle_operator.conf文件中的参数说明请参考spark.conf。

    1. 新建文件。
      1

      vi /home/shuffle_operator.conf
    2. 按“i”进入编辑模式，在文件中添加如下内容。
       1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44

      spark.master yarn
spark.task.cpus 1
spark.shuffle.compress true
spark.shuffle.spill.compress true
spark.rdd.compress true
spark.executor.extraClassPath     /usr/local/hive/lib/mysql-connector-java-8.0.13.jar:usr/local/hive/lib:/home/ockadmin/opt/ock/jars/*:/opt/omni-operator/lib/boostkit-omniop-spark-3.1.1-1.3.0-aarch64.jar:/opt/omni-operator/lib/boostkit-omniop-bindings-1.3.0-aarch64.jar:/opt/omni-operator/lib/dependencies/*:.
spark.driver.extraClassPath       /usr/local/hive/lib/mysql-connector-java-8.0.13.jar:usr/local/hive/lib:/home/ockadmin/opt/ock/jars/*:/opt/omni-operator/lib/boostkit-omniop-spark-3.1.1-1.3.0-aarch64.jar:/opt/omni-operator/lib/boostkit-omniop-bindings-1.3.0-aarch64.jar:/opt/omni-operator/lib/dependencies/*:.
spark.driver.extraJavaOptions -Djava.library.path=/home/ockadmin/opt/ock/ucache/23.0.0/linux-aarch64/lib/common:/home/ockadmin/opt/ock/ucache/23.0.0/linux-aarch64/lib/common/ucx:/home/ockadmin/opt/ock/ucache/23.0.0/linux-aarch64/lib/common/ucx/ucx:/home/ockadmin/opt/ock/ucache/23.0.0/linux-aarch64/lib/datakit:/home/ockadmin/opt/ock/ucache/23.0.0/linux-aarch64/lib/mf:/home/ockadmin/opt/ock/jars:/opt/omni-operator/lib
spark.executor.extraJavaOptions -Djava.library.path=/home/ockadmin/opt/ock/ucache/23.0.0/linux-aarch64/lib/common:/home/ockadmin/opt/ock/ucache/23.0.0/linux-aarch64/lib/common/ucx:/home/ockadmin/opt/ock/ucache/23.0.0/linux-aarch64/lib/common/ucx/ucx:/home/ockadmin/opt/ock/ucache/23.0.0/linux-aarch64/lib/datakit:/home/ockadmin/opt/ock/ucache/23.0.0/linux-aarch64/lib/mf:/home/ockadmin/opt/ock/jars:/opt/omni-operator/lib
spark.driver.extraLibraryPath    /home/:/home/sasl/lib/:/home/ockadmin/opt/ock/security/kmc_tool/lib/:/home/ockadmin/opt/ock/ucache/23.0.0/linux-aarch64/lib/common:/home/ockadmin/opt/ock/ucache/23.0.0/linux-aarch64/lib/common/ucx:/home/ockadmin/opt/ock/ucache/23.0.0/linux-aarch64/lib/common/ucx/ucx:/home/ockadmin/opt/ock/ucache/23.0.0/linux-aarch64/lib/datakit:/home/ockadmin/opt/ock/ucache/23.0.0/linux-aarch64/lib/mf:/home/ockadmin/opt/ock/jars:/opt/omni-operator/lib:.
spark.executor.extraLibraryPath  /home/:/home/sasl/lib/:/home/ockadmin/opt/ock/security/kmc_tool/lib/:/home/ockadmin/opt/ock/ucache/23.0.0/linux-aarch64/lib/common:/home/ockadmin/opt/ock/ucache/23.0.0/linux-aarch64/lib/common/ucx:/home/ockadmin/opt/ock/ucache/23.0.0/linux-aarch64/lib/common/ucx/ucx:/home/ockadmin/opt/ock/ucache/23.0.0/linux-aarch64/lib/datakit:/home/ockadmin/opt/ock/ucache/23.0.0/linux-aarch64/lib/mf:/home/ockadmin/opt/ock/jars:/opt/omni-operator/lib:.
spark.shuffle.manager              org.apache.spark.shuffle.ock.OckColumnarShuffleManager
spark.shuffle.ock.manager true
spark.broadcast.ock.manager false
spark.blacklist.enabled true
spark.files.fetchFailure.unRegisterOutputOnHost true
spark.shuffle.service.enabled  false
spark.sql.adaptive.enabled true
spark.blacklist.application.fetchFailure.enabled true
spark.hadoop.mapreduce.fileoutputcommitter.algorithm.version 2
spark.driver.maxResultSize 2g
spark.serializer                        org.apache.spark.serializer.KryoSerializer
spark.shuffle.ock.home /home/ockadmin/opt/ock
spark.shuffle.ock.version 23.0.0
spark.shuffle.ock.binaryType linux-aarch64
spark.sql.broadcastTimeout 3000
#omni
spark.executorEnv.LD_LIBRARY_PATH /opt/omni-operator/lib:/usr/local/lib/HMPP
spark.executorEnv.OMNI_HOME   /opt/omni-operator
spark.driverEnv.LD_LIBRARY_PATH /opt/omni-operator/lib:/usr/local/lib/HMPP
spark.driverEnv.OMNI_HOME /opt/omni-operator
spark.driverEnv.LD_PRELOAD   /opt/omni-operator/lib/libjemalloc.so.2
spark.executorEnv.LD_PRELOAD /opt/omni-operator/lib/libjemalloc.so.2
spark.sql.orc.impl native
spark.omni.sql.columnar.fusion false
spark.locality.wait 8
spark.sql.autoBroadcastJoinThreshold 100M
spark.executorEnv.MALLOC_CONF narenas:2
spark.sql.extensions=com.huawei.boostkit.spark.ColumnarPlugin,org.apache.spark.sql.execution.adaptive.ock.OmniOpBoostTuningExtension
spark.sql.ock.autoConfig.enabled true
spark.sql.ock.autoConfig.history true
spark.sql.ock.autoConfig.globalRuntimePartition false
spark.sql.ock.autoConfig.sample false
spark.kryoserializer.buffer.max 512m
    3. 按“Esc”键，输入:wq!，按“Enter”保存并退出编辑。

  2. 启动Spark-SQL命令行窗口。

    原生Spark-SQL启动命令如下。

    1

    /usr/local/spark/bin/spark-sql --deploy-mode client --driver-cores 8 --driver-memory 40g --num-executors 30 --executor-cores 6 --executor-memory 35g --master yarn --conf spark.task.cpus=1 --conf spark.default.parallelism=600 --conf spark.sql.broadcastTimeout=500 --conf spark.sql.shuffle.partitions=600 --conf spark.sql.adaptive.enabled=true --database tpcds_bin_partitioned_orc_3
    SparkExtension插件启动命令如下。
     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14

    spark-sql --deploy-mode client --driver-cores 8 \
                               --driver-memory 40G \
                               --num-executors 24 \
                               --executor-cores 12 \
                               --executor-memory 5g \
                               --master yarn \
                               --conf spark.memory.offHeap.enabled=true \
                               --conf spark.memory.offHeap.size=26g \
                               --conf spark.sql.codegen.wholeStage=false \
                               --jars /home/ockadmin/opt/ock/jars/* \
                               --jars /opt/omni-operator/lib/boostkit-omniop-spark-3.1.1-1.3.0-aarch64.jar \
                               --jars /opt/omni-operator/lib/boostkit-omniop-bindings-1.3.0-aarch64.jar \
                               --properties-file /home/shuffle_operator.conf \
                               --database tpcds_bin_partitioned_orc_3

  3. 查看OmniShuffle Shuffle加速叠加OmniOperator算子加速是否生效。

    在SparkExtension和原生Spark-SQL交互式命令行窗口分别运行以下SQL语句。

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15

    set spark.sql.adaptive.enabled=false;
explain select  i_item_id
    ,i_item_desc
    ,i_current_price
from item, inventory, date_dim, store_sales
where i_current_price between 76 and 76+30
and inv_item_sk = i_item_sk
and d_date_sk=inv_date_sk
and d_date between cast('1998-06-29' as date) and cast('1998-08-29' as date)
and i_manufact_id in (512,409,677,16)
and inv_quantity_on_hand between 100 and 500
and ss_item_sk = i_item_sk
group by i_item_id,i_item_desc,i_current_price
order by i_item_id
limit 100;

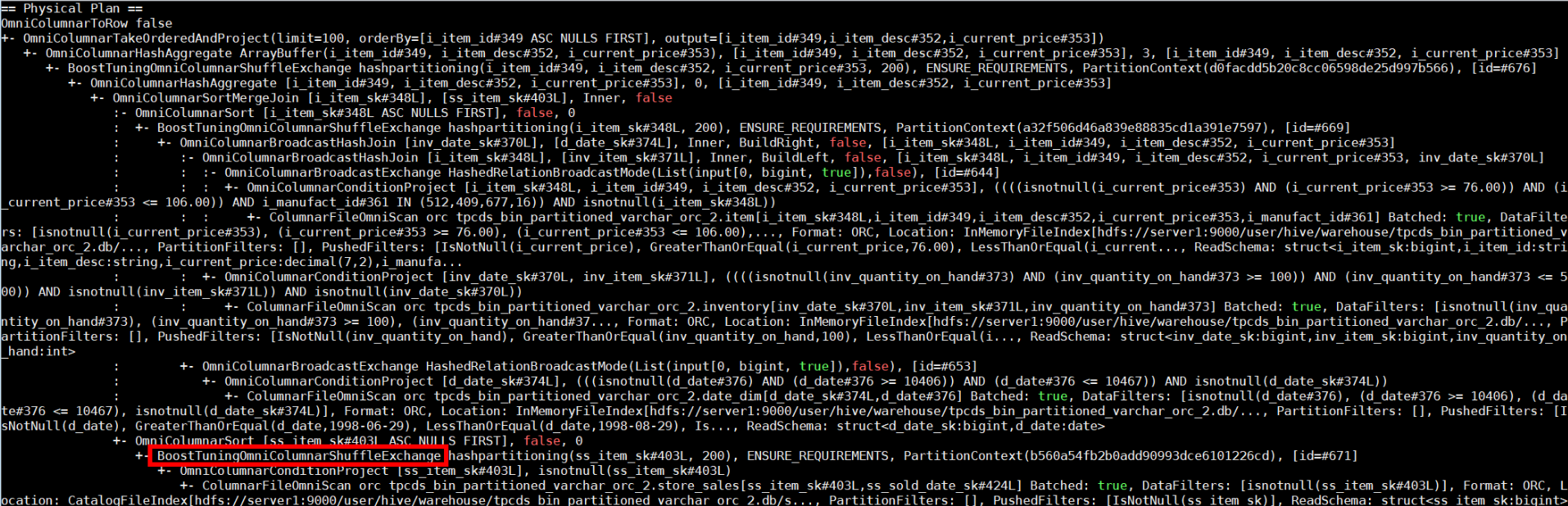

    输出执行计划如下图，如果算子中Shuffle算子变成BoostTuningOmniColumnarShuffleExchange则生效。

父主题： 使用OmniRuntime叠加特性
