当前virtCCA仅支持Kernel+rootfs分离方式启动，云上场景下，虚机的启动主要采用grub boot的方式（需要将edk2+Kernel挂载到同一个qcow镜像中），通过这种方式满足客户的使用方式。

在启动机密虚机前请您先查看宿主机是否有virbr0网桥，如果没有可使用如下命令添加网桥virbr0。

brctl addbr virbr0

方式一：使用QEMU命令行启动机密虚机

新建run-qemu.sh文件并将以下内容拷贝进文件。

launch_uefi为启动机密虚机，launch_uefi_normal为启动普通虚机。

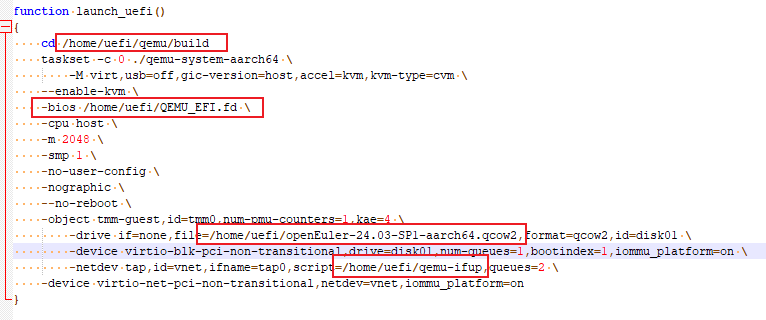

QEMU、efi.fd、qcow2的文件路径需替换为实际路径。

虚机如果需要连接网络，新建qemu-ifup文件并将以下内容拷贝进文件，其中“switch = virbr0”中的网桥根据实际配置。

#!/bin/sh
set -x
switch=virbr0
if [ -n "$1" ];then
        ip tuntap add $1 mode tap user `whoami`
        ip link set $1 up
        sleep 1s
        ip link set $1 master $switch
        exit 0
else
        echo "Error: no interface specified"
        exit 1
fi

#!/bin/sh
MAC_ADDR_0=DE:AD:BE:EF:FA:28

function launch_uefi()
{
    cd /home/uefi/qemu/build
    taskset -c 0 ./qemu-system-aarch64 \
        -M virt,usb=off,gic-version=host,accel=kvm,kvm-type=cvm \
    --enable-kvm \
    -bios /home/uefi/QEMU_EFI.fd \
    -cpu host \
    -m 2048 \
    -smp 1 \
    -no-user-config \
    -nographic \
    --no-reboot \
    -object tmm-guest,id=tmm0,num-pmu-counters=1 \
        -drive if=none,file=/home/uefi/openEuler-24.03-SP1-aarch64.qcow2,format=qcow2,id=disk01 \
        -device virtio-blk-pci-non-transitional,drive=disk01,num-queues=1,bootindex=1,iommu_platform=on \
        -netdev tap,id=vnet,ifname=tap0,script=/home/uefi/qemu-ifup,queues=2 \
    -device virtio-net-pci-non-transitional,netdev=vnet,iommu_platform=on
}

function launch_uefi_normal()
{
    cd /home/uefi/qemu/build
    ./qemu-system-aarch64 \
        -M virt,usb=off,gic-version=host,accel=kvm \
    --enable-kvm \
    -bios /home/uefi/QEMU_EFI.fd \
    -cpu host \
    -m 2048 \
    -smp 1\
    -no-user-config \
    -nographic \
    --no-reboot \
        -drive if=none,file=/home/uefi/openEuler-24.03-SP1-aarch64.qcow2,format=qcow2,id=disk01 \
        -device virtio-blk-pci-non-transitional,drive=disk01,num-queues=1,bootindex=1 \
        -netdev tap,id=vnet,ifname=tap0,script=/home/uefi/qemu-ifup,queues=2 \
        -device virtio-net-pci,netdev=vnet,mac=${MAC_ADDR_0}
}

if [ "$1" == "u" ]
then
    launch_uefi
fi

# Launch cVM to test KATA
if [ "$1" == "nu" ]
then
    launch_uefi_normal
fi

点击放大

方式二：使用libvirt启动机密虚机

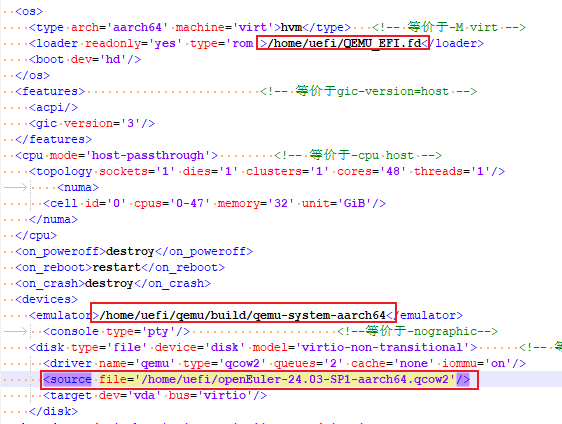

新建cvm.xml文件，拷贝如下内容并将QEMU、efi.fd、qcow2文件路径替换为实际路径。

<domain type='kvm' xmlns:qemu="http://libvirt.org/schemas/domain/qemu/1.0">
  <name>cvm-uefi</name>
  <memory unit='GiB'>8</memory>
  <vcpu placement='static'>4</vcpu>
  <cputune>
    <vcpupin vcpu='0' cpuset='0'/>
    <vcpupin vcpu='1' cpuset='1'/>
    <vcpupin vcpu='2' cpuset='2'/>
    <vcpupin vcpu='3' cpuset='3'/>
    <emulatorpin cpuset='0-3'/>
  </cputune>
    <numatune>
    <memnode cellid='0' mode='strict' nodeset='0'/>
  </numatune>
  <os>
    <type arch='aarch64' machine='virt'>hvm</type>
    <loader readonly='yes' type='rom'>/home/uefi/QEMU_EFI.fd</loader>
     <boot dev='hd'/>
  </os>
  <features>
    <acpi/>
    <gic version='3'/>
  </features>
  <cpu mode='host-passthrough'>
    <topology sockets='1' dies='1' clusters='1' cores='4' threads='1'/>
           <numa>
      <cell id='0' cpus='0-3' memory='8' unit='GiB'/>
    </numa>
  </cpu>
  <on_poweroff>destroy</on_poweroff>
  <on_reboot>restart</on_reboot>
  <on_crash>destroy</on_crash>
  <devices>
    <emulator>/home/uefi/qemu/build/qemu-system-aarch64</emulator>
         <console type='pty'/>
    <disk type='file' device='disk' model='virtio-non-transitional'>
      <driver name='qemu' type='qcow2' queues='2' cache='none' iommu='on'/>
      <source file='/home/uefi/openEuler-24.03-SP1-aarch64.qcow2'/>
      <target dev='vda' bus='virtio'/>
    </disk>
<interface type='bridge'>
<source bridge='virbr0'/>
<driver iommu='on'/>
<model type='virtio-non-transitional'/>
</interface>
  </devices>
  <launchSecurity type='cvm'/>
  <qemu:commandline>
    <qemu:arg value='-object'/>
    <qemu:arg value='tmm-guest,id=tmm0,num-pmu-counters=1'/>
  </qemu:commandline>
</domain>

点击放大
