扫描规则文件使用示例

系统迁移在进行台账信息和成分信息收集时，支持通过配置扫描规则，识别新增软件。

扫描规则文件使用示例

默认扫描规则配置文件位于二进制目录下“sys-mig/resources/sysmig_disk_scan_classifier.json”。

  1. 以默认扫描规则进行系统迁移应用信息收集，以台账信息收集为例。

    1

    devkit sys-mig -c stmt -d /usr/local -o /home/report

    返回信息如下：

    [2025-02-12 09:17:01,498] [INFO] Start to execute the command: ./devkit sys-mig -c stmt -cf /usr/local/devkit/sys-mig/resources/sysmig_default.conf -d /usr/local -o /home/report -t /usr/local/devkit/sys-mig/template/stmt_template_default.csv -l 1
[2025-02-12 09:17:01,498] [INFO] Creating file indexing...
[2025-02-12 09:17:15,893] [INFO] Parsing...
[2025-02-12 09:17:15,893] [INFO] Start Scanning stmt information.
[2025-02-12 09:17:15,894] [INFO] Middleware binary start analysis.
[2025-02-12 09:17:15,894] [INFO] start scanning middleware binary file: /usr/local/logstash-5.5.0/vendor/bundle/jruby/1.9/gems/logstash-patterns-core-4.1.1/patterns/java.
[2025-02-12 09:17:15,896] [WARNING] The file /usr/local/logstash-5.5.0/vendor/bundle/jruby/1.9/gems/logstash-patterns-core-4.1.1/patterns/java cannot be executed or no permission to execute the filepath file.
[2025-02-12 09:17:15,896] [INFO] start scanning middleware binary file: /usr/local/nginx/sbin/nginx.
[2025-02-12 09:17:16,009] [INFO] start scanning middleware binary file: /usr/local/src/redis-stable/src/redis-server.
[2025-02-12 09:17:16,921] [INFO] start scanning middleware binary file: /usr/local/bin/redis-server.
[2025-02-12 09:17:19,230] [INFO] Middleware binary end of analysis.
[2025-02-12 09:17:19,230] [INFO] Middleware package start analysis.
[2025-02-12 09:17:19,230] [INFO] start scanning middleware package file: /usr/local/tomcat/apache-tomcat-8.5.100/lib/catalina.jar.
[2025-02-12 09:17:19,296] [INFO] start scanning middleware package file: /usr/local/hadoop-3.4.0/share/hadoop/tools/lib/kafka-clients-2.8.2.jar.
[2025-02-12 09:17:19,342] [INFO] start scanning middleware package file: /usr/local/logstash-5.5.0/vendor/bundle/jruby/1.9/gems/logstash-input-kafka-5.1.8/vendor/jar-dependencies/runtime-jars/kafka-clients-0.10.0.1.jar.
[2025-02-12 09:17:19,353] [INFO] start scanning middleware package file: /usr/local/logstash-5.5.0/vendor/bundle/jruby/1.9/gems/logstash-output-kafka-5.1.7/vendor/jar-dependencies/runtime-jars/kafka-clients-0.10.0.1.jar.
[2025-02-12 09:17:19,363] [INFO] start scanning middleware package file: /usr/local/hadoop-3.4.0/share/hadoop/hdfs/lib/zookeeper-3.8.3.jar.
[2025-02-12 09:17:19,379] [INFO] start scanning middleware package file: /usr/local/hadoop-3.4.0/share/hadoop/common/lib/zookeeper-3.8.3.jar.
[2025-02-12 09:17:19,395] [INFO] start scanning middleware package file: /usr/local/hbase/lib/zookeeper-3.4.10.jar.
[2025-02-12 09:17:19,580] [INFO] start scanning middleware package file: /usr/local/zookeeper-3.4.6/zookeeper-3.4.6.jar.
[2025-02-12 09:17:20,721] [INFO] start scanning middleware package file: /usr/local/zookeeper-3.4.6/dist-maven/zookeeper-3.4.6.jar.
[2025-02-12 09:17:20,765] [INFO] Middleware package end of analysis.
csv report is created successfully. the file is located in /home/report/sys-mig_xx.xx.xx.xx_20250212091701/stmt.csv
[2025-02-12 09:17:20,783] [INFO] Scanning information successfully completed.

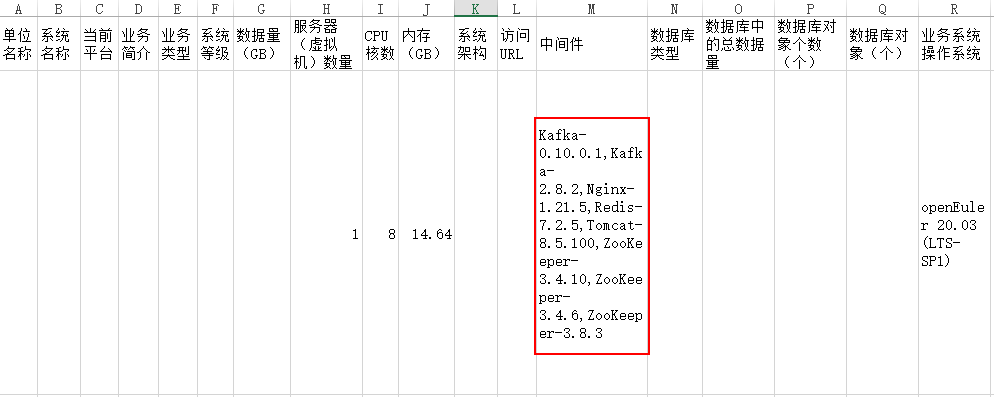

  2. 查看扫描报告，软件Logstash未被识别。

  3. 进入二进制目录下，配置扫描规则文件。

    1

    vi sys-mig/resources/sysmig_disk_scan_classifier.json

    新增如下加粗内容：

    {
  "linux_binary_classifiers": [
   {
      "cli_category": "MIDDLEWARE",
      "category": 3,
      "file_glob": "**/logstash-core/lib/logstash/version.rb",
      "version_pattern": "(?m)(?P<version>[0-9]+\\.[0-9]+\\.[0-9]+)",
      "package": "logstash",
      "supplier": "Elastic",
      "type": "BINARY",
      "metadata_type": "MIDDLEWARE_WEB_OTHER",
      "company_type": "开源",
      "relative_directory_hierarchy": "../../../../"
     },
    {
      "cli_category": "RUNTIME_JAVA",
      "category": 3,
      "file_glob": "**/java",
      "version_pattern": "(?m)(\\x00java\\x00|\\x00|\\x00-Djava.class.path=%s)(?P<release>[0-9]+[.0-9]*(\\x00)+)?(?P<version>\\d+(\\.\\d)+[^\\x00]+)(\\x00openjdk)?(\\x00java)?\\x00",
      "version_file": "../release",
      "package": "JDK",
      "supplier": "JDK",
      "type": "BINARY",
      "metadata_type": "JAVA_RUNTIME_BINARY",
      "company_type": "开源",
      "relative_directory_hierarchy": "../"
    },
    ...
  ],
  "middleware_jar_classifiers": [
    {
      "cli_category": "MIDDLEWARE",
      "category": 3,
      "file_glob": "**/weblogic.jar",
      "version_pattern": "(?m)Implementation-Version: (?P<version>[0-9]+[.0-9]*)",
      "version_file": "MANIFEST.MF",
      "package": "WebLogic",
      "supplier": "Oracle Corporation",
      "type": "BINARY",
      "metadata_type": "MIDDLEWARE_WEB_WEBLOGIC",
      "company_type": "商业",
      "relative_directory_hierarchy": "../../../../../"
    },
    ...
  ],
  "win_binary_classifiers": [
    {
      "cli_category": "RUNTIME_JAVA",
      "category": 3,
      "classify": "java_jdk_binary",
      "file_glob": "**/java.exe",
      "version_pattern": "(?m)\\x00openjdk\\x00java\\x00(?P<release>[0-9]+[.0-9]*)\\x00(?P<version>[0-9]+[^\\x00]+)\\x00",
      "package": "JDK",
      "supplier": "JDK",
      "type": "BINARY",
      "metadata_type": "JAVA_RUNTIME_BINARY_OPENJDK",
      "company_type": "开源",
      "relative_directory_hierarchy": "../"
    },
    ...
  ]
}

    包含以下类型，参数说明表1所示：

    • linux_binary_classifiers：Linux系统下，特征文件为二进制文件、文本文件等，非压缩文件的软件。
    • middleware_jar_classifiers：Linux系统下，特征文件为jar包形式，需要解压的软件。
    • win_binary_classifiers：Windows系统下，特征文件为二进制文件、文本文件等，非压缩文件的软件。
    表1 配置规则说明

    参数

    参数选项

    是否必填

    类型

    说明

    cli_category

    APP_JAVA/RUNTIME_JAVA/MIDDLEWARE/DATABASE/HARDWARE/OS

    是

    string

    软件类别，在命令行报告中展示。

    • APP_JAVA：Java应用。
    • RUNTIME_JAVA：JDK。
    • MIDDLEWARE：中间件。
    • DATABASE：数据库。
    • HARDWARE：硬件。
    • OS：操作系统。

    category

    1/2/3/4

    是

    int

    软件类别，用于Web端源成分采集功能。

    • 1：操作系统。
    • 2：数据库。
    • 3：中间件。
    • 4：Java应用。

    use_file_regex

    true/false

    否

    boolean

    特征文件是否使用正则匹配，默认为false。

    • 若为false：则file_glob需要以**/开头，然后填写具体文件路径。
    • 若为true：则file_glob需要配置对应的正则表达式。

    file_glob

    -

    是

    string

    特征文件，用于标识软件和匹配软件版本。

    例如：**/nginx

    说明：

    版本匹配优先级从高到低为：file_glob、version_file。

    version_pattern

    -

    是

    string

    版本。正则表达式，对特征文件进行正则匹配，若无可填空字符串。

    version_file

    -

    否

    string

    版本文件名，用于匹配版本，middleware_jar_classifiers归类下必填。文件中包含该款软件的版本信息。

    package

    -

    是

    string

    软件官方名称，例如：Nginx。

    supplier

    -

    是

    string

    软件厂商名，例如：Nginx, Inc。

    type

    BINARY

    是

    string

    软件类型，需要配置为BINARY。

    metadata_type

    DATABASE_OTHER/MIDDLEWARE_WEB_OTHER

    是

    string

    软件归类。

    • 数据库填写为DATABASE_OTHER。
    • 中间件填写为MIDDLEWARE_WEB_OTHER。

    company_type

    自有/开源/商业/--

    是

    string

    是否开源。

    relative_directory_hierarchy

    -

    是

    string

    安装目录。通过file_glob找到的特征文件的相对路径。

    例如：安装目录为特征文件上层目录，则填写../。

  4. 重新执行台账信息收集。

    1

    devkit sys-mig -c stmt -d /usr/local -o /home/report

    返回信息如下：

    [2025-02-12 09:20:56,705] [INFO] Start to execute the command: ./devkit sys-mig -c stmt -cf /usr/local/devkit/sys-mig/resources/sysmig_default.conf -d /usr/local -o /home/report -t /usr/local/devkit/sys-mig/template/stmt_template_default.csv -l 1
[2025-02-12 09:20:56,705] [INFO] Creating file indexing...
[2025-02-12 09:21:10,633] [INFO] Parsing...
[2025-02-12 09:21:10,633] [INFO] Start Scanning stmt information.
[2025-02-12 09:21:10,633] [INFO] Middleware binary start analysis.
[2025-02-12 09:21:10,634] [INFO] start scanning middleware binary file: /usr/local/logstash-5.5.0/logstash-core/lib/logstash/version.rb.
[2025-02-12 09:21:11,748] [INFO] start scanning middleware binary file: /usr/local/logstash-5.5.0/vendor/bundle/jruby/1.9/gems/logstash-patterns-core-4.1.1/patterns/java.
[2025-02-12 09:21:11,748] [WARNING] The file /usr/local/logstash-5.5.0/vendor/bundle/jruby/1.9/gems/logstash-patterns-core-4.1.1/patterns/java cannot be executed or no permission to execute the filepath file.
[2025-02-12 09:21:11,748] [INFO] start scanning middleware binary file: /usr/local/nginx/sbin/nginx.
[2025-02-12 09:21:11,795] [INFO] start scanning middleware binary file: /usr/local/src/redis-stable/src/redis-server.
[2025-02-12 09:21:12,558] [INFO] start scanning middleware binary file: /usr/local/bin/redis-server.
[2025-02-12 09:21:14,373] [INFO] Middleware binary end of analysis.
[2025-02-12 09:21:14,374] [INFO] Middleware package start analysis.
[2025-02-12 09:21:14,374] [INFO] start scanning middleware package file: /usr/local/tomcat/apache-tomcat-8.5.100/lib/catalina.jar.
[2025-02-12 09:21:14,405] [INFO] start scanning middleware package file: /usr/local/hadoop-3.4.0/share/hadoop/tools/lib/kafka-clients-2.8.2.jar.
[2025-02-12 09:21:14,438] [INFO] start scanning middleware package file: /usr/local/logstash-5.5.0/vendor/bundle/jruby/1.9/gems/logstash-input-kafka-5.1.8/vendor/jar-dependencies/runtime-jars/kafka-clients-0.10.0.1.jar.
[2025-02-12 09:21:14,448] [INFO] start scanning middleware package file: /usr/local/logstash-5.5.0/vendor/bundle/jruby/1.9/gems/logstash-output-kafka-5.1.7/vendor/jar-dependencies/runtime-jars/kafka-clients-0.10.0.1.jar.
[2025-02-12 09:21:14,456] [INFO] start scanning middleware package file: /usr/local/hadoop-3.4.0/share/hadoop/hdfs/lib/zookeeper-3.8.3.jar.
[2025-02-12 09:21:14,471] [INFO] start scanning middleware package file: /usr/local/hadoop-3.4.0/share/hadoop/common/lib/zookeeper-3.8.3.jar.
[2025-02-12 09:21:14,485] [INFO] start scanning middleware package file: /usr/local/hbase/lib/zookeeper-3.4.10.jar.
[2025-02-12 09:21:14,663] [INFO] start scanning middleware package file: /usr/local/zookeeper-3.4.6/zookeeper-3.4.6.jar.
[2025-02-12 09:21:15,765] [INFO] start scanning middleware package file: /usr/local/zookeeper-3.4.6/dist-maven/zookeeper-3.4.6.jar.
[2025-02-12 09:21:15,804] [INFO] Middleware package end of analysis.
csv report is created successfully. the file is located in /home/report/sys-mig_xx.xx.xx.xx_20250212092056/stmt.csv
[2025-02-12 09:21:15,820] [INFO] Scanning information successfully completed.

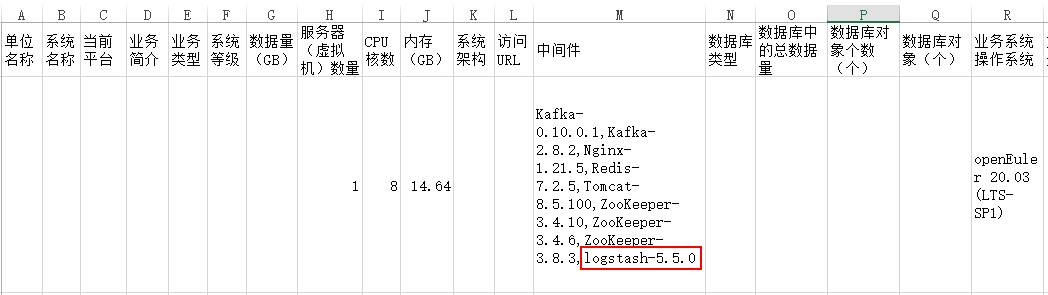

  5. 查看扫描报告，可看到扫描报告中存在Logstash。
