启动Redis集群

下文介绍使用Redis命令行界面的集群创建功能来启动一个Redis集群的过程。

执行以下命令。

export REDIS_HOME=/home/redis-6.0.20
export PATH="$REDIS_HOME/src:$PATH"

在controller节点执行以下命令创建Redis集群管理脚本redis-cluster.sh。

mkdir -p /home/redis/scripts
vi /home/redis/scripts/redis-cluster.sh

写入以下内容：

#!/bin/bash

ROOT_DIR="/home/redis/cluster"

NODE0_IP="192.168.100.100"
NODE1_IP="192.168.100.101"

NODE0_PORTS=(7001 7003 7005)
NODE1_PORTS=(7002 7004 7006)

SSH_USER="root"

REDIS_SERVER="/home/redis-6.0.20/src/redis-server"
REDIS_CLI="/home/redis-6.0.20/src/redis-cli"


usage()
{
    echo "Usage:"
    echo "  $0 start  0|1|all"
    echo "  $0 stop   0|1|all"
    echo "  $0 status 0|1|all"
}


start_local()
{
    local ip=$1
    shift
    local ports=("$@")

    for port in "${ports[@]}";
    do
        conf="${ROOT_DIR}/${port}/redis.conf"

        if [ ! -f "${conf}" ]; then
            echo "ERROR: ${conf} does not exist."
            return 1
        fi

        if ${REDIS_CLI} -h "${ip}" -p "${port}" ping \
            >/dev/null 2>&1;
        then
            echo "Redis ${port} is already running."
            continue
        fi

        echo "Starting Redis ${port}..."

        cd ${ROOT_DIR}/${port}/
        ${REDIS_SERVER} "${conf}" --port ${port}  &

        sleep 1

        if ${REDIS_CLI} -h "${ip}" -p "${port}" ping \
            >/dev/null 2>&1;
        then
            echo "Redis ${port} started successfully."
        else
            echo "ERROR: Redis ${port} failed to start."
        fi
    done
}


stop_local()
{
    local ip=$1
    shift
    local ports=("$@")

    for port in "${ports[@]}";
    do
        if ${REDIS_CLI} -h "${ip}" -p "${port}" ping \
            >/dev/null 2>&1;
        then
            echo "Stopping Redis ${port}..."

            ${REDIS_CLI} \
                -h "${ip}" \
                -p "${port}" \
                shutdown

            sleep 1
        else
            echo "Redis ${port} is not running."
        fi
    done
}


status_local()
{
    local ip=$1
    shift
    local ports=("$@")

    for port in "${ports[@]}";
    do
        printf "Redis ${ip}:${port}: "

        if ${REDIS_CLI} \
            -h "${ip}" \
            -p "${port}" \
            ping 2>/dev/null | grep -q PONG;
        then
            echo "RUNNING"
        else
            echo "STOPPED"
        fi
    done
}


start_node0()
{
    echo "===== Start Node0 ====="

    start_local \
        "${NODE0_IP}" \
        "${NODE0_PORTS[@]}"
}


start_node1()
{
    echo "===== Start Node1 ====="

    ssh ${SSH_USER}@${NODE1_IP} \
        "ROOT_DIR='${ROOT_DIR}' bash -s" <<'EOF'

NODE1_IP="192.168.100.101"
NODE1_PORTS=(7002 7004 7006)

REDIS_SERVER="/home/redis-6.0.20/src/redis-server"
REDIS_CLI="/home/redis-6.0.20/src/redis-cli"

for port in "${NODE1_PORTS[@]}";
do
    conf="${ROOT_DIR}/${port}/redis.conf"

    if [ ! -f "${conf}" ]; then
        echo "ERROR: ${conf} does not exist."
        continue
    fi

    if ${REDIS_CLI} -h "${NODE1_IP}" -p "${port}" ping \
        >/dev/null 2>&1;
    then
        echo "Redis ${port} is already running."
        continue
    fi

    echo "Starting Redis ${port}..."

    cd ${ROOT_DIR}/${port}/
    ${REDIS_SERVER} "${conf}" --port ${port} &

    sleep 1

    if ${REDIS_CLI} -h "${NODE1_IP}" -p "${port}" ping \
        >/dev/null 2>&1;
    then
        echo "Redis ${port} started successfully."
    else
        echo "ERROR: Redis ${port} failed to start."
    fi
done

EOF
}


stop_node1()
{
    echo "===== Stop Node1 ====="

    ssh ${SSH_USER}@${NODE1_IP} 'bash -s' <<'EOF'

NODE1_IP="192.168.100.101"
NODE1_PORTS=(7002 7004 7006)

REDIS_SERVER="/home/redis-6.0.20/src/redis-server"
REDIS_CLI="/home/redis-6.0.20/src/redis-cli"

for port in "${NODE1_PORTS[@]}";
do
    if ${REDIS_CLI} -h "${NODE1_IP}" -p "${port}" ping \
        >/dev/null 2>&1;
    then
        echo "Stopping Redis ${port}..."

        ${REDIS_CLI} \
            -h "${NODE1_IP}" \
            -p "${port}" \
            shutdown

        sleep 1
    else
        echo "Redis ${port} is not running."
    fi
done

EOF
}


status_node1()
{
    echo "===== Node1 Status ====="

    ssh ${SSH_USER}@${NODE1_IP} 'bash -s' <<'EOF'

NODE1_IP="192.168.100.101"
NODE1_PORTS=(7002 7004 7006)

REDIS_SERVER="/home/redis-6.0.20/src/redis-server"
REDIS_CLI="/home/redis-6.0.20/src/redis-cli"

for port in "${NODE1_PORTS[@]}";
do
    printf "Redis ${NODE1_IP}:${port}: "

    if ${REDIS_CLI} \
        -h "${NODE1_IP}" \
        -p "${port}" \
        ping 2>/dev/null | grep -q PONG;
    then
        echo "RUNNING"
    else
        echo "STOPPED"
    fi
done

EOF
}


cluster_status()
{
    echo ""
    echo "===== Redis Cluster Status ====="

    ${REDIS_CLI} \
        -h "${NODE0_IP}" \
        -p 7001 \
        cluster info

    echo ""
    echo "===== Redis Cluster Nodes ====="

    ${REDIS_CLI} \
        -h "${NODE0_IP}" \
        -p 7001 \
        cluster nodes
}


ACTION=$1
NODE=$2


if [ -z "${ACTION}" ] || [ -z "${NODE}" ]; then
    usage
    exit 1
fi


case "${ACTION}" in

    start)

        case "${NODE}" in

            0)
                start_node0
                ;;

            1)
                start_node1
                ;;

            all)
                start_node0
                start_node1
                ;;

            *)
                usage
                exit 1
                ;;

        esac

        ;;


    stop)

        case "${NODE}" in

            0)
                stop_local \
                    "${NODE0_IP}" \
                    "${NODE0_PORTS[@]}"
                ;;

            1)
                stop_node1
                ;;

            all)
                stop_local \
                    "${NODE0_IP}" \
                    "${NODE0_PORTS[@]}"

                stop_node1
                ;;

            *)
                usage
                exit 1
                ;;

        esac

        ;;


    status)

        case "${NODE}" in

            0)
                status_local \
                    "${NODE0_IP}" \
                    "${NODE0_PORTS[@]}"
                ;;

            1)
                status_node1
                ;;

            all)
                status_local \
                    "${NODE0_IP}" \
                    "${NODE0_PORTS[@]}"

                status_node1

                cluster_status
                ;;

            *)
                usage
                exit 1
                ;;

        esac

        ;;


    *)
        usage
        exit 1
        ;;

esac

将以上脚本赋予执行权限。

chmod +x /home/redis/scripts/redis-cluster.sh

在controller节点执行以下命令启动Redis实例并检查启动状态。

/home/redis/scripts/redis-cluster.sh start all &
/home/redis/scripts/redis-cluster.sh status all &

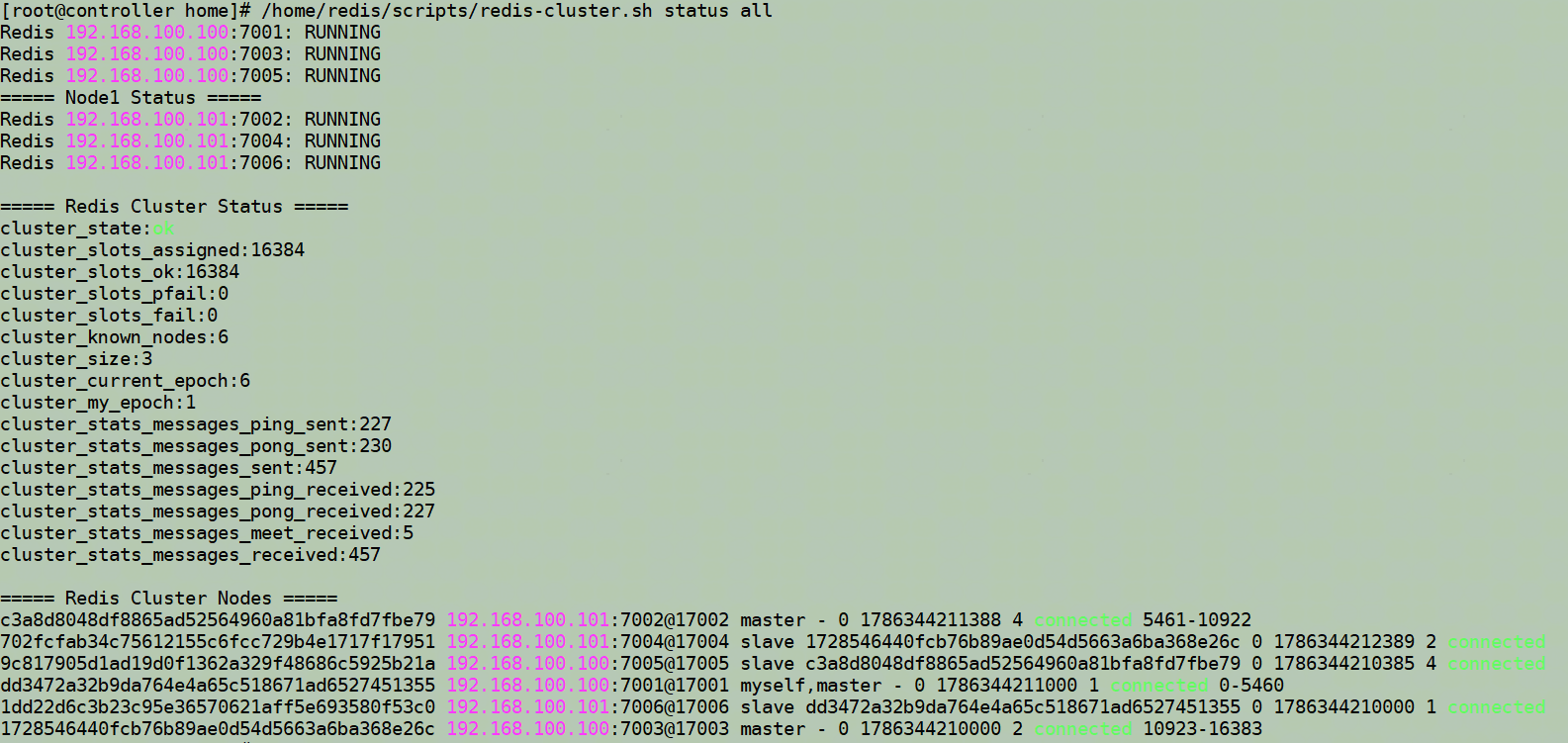

预期产生以下回显：

Redis 192.168.100.100:7001: RUNNING
Redis 192.168.100.100:7003: RUNNING
Redis 192.168.100.100:7005: RUNNING

Redis 192.168.100.101:7002: RUNNING
Redis 192.168.100.101:7004: RUNNING
Redis 192.168.100.101:7006: RUNNING

在controller节点执行以下命令创建Cluster。

redis-cli \
--cluster create \
192.168.100.100:7001 \
192.168.100.100:7003 \
192.168.100.100:7005 \
192.168.100.101:7002 \
192.168.100.101:7004 \
192.168.100.101:7006 \
--cluster-replicas 1

确认节点分配后输入：

yes

Redis会自动创建3个Master和3个Replica。
