执行openLooKeng引擎业务

openLooKeng使用CLI来执行SQL任务。

本次任务示例使用tpch的1T数据的非分区表作为测试表，测试SQL为tpch-sql6。

相关的表信息如表1所示。

具体步骤如下。

1. 运行openLooKeng CLI命令。

   1 2 3 4

   cd bin/ ./hetu-cli –server coordinatorIp:port –catalog omnidata set session omni_data_enabled=true; use hive.tpch_flat_orc_date_1000;

   通过explain可以看到执行计划中，已经将算子下推到Scan阶段。



   Output[revenue]
   │ Layout: [sum:double]
   │ Estimates: {rows: 4859991664 (40.74GB), cpu: 246.43G, memory: 86.00GB, network: 45.26GB}
   │ revenue := sum
   └─ Aggregate(FINAL)
   │ Layout: [sum:double]
   │ Estimates: {rows: 4859991664 (40.74GB), cpu: 246.43G, memory: 86.00GB, network: 45.26GB}
   │ sum := sum(sum_4)
   └─ LocalExchange[SINGLE] ()
   │ Layout: [sum_4:double]
   │ Estimates: {rows: 5399990738 (45.26GB), cpu: 201.17G, memory: 45.26GB, network: 45.26GB}
   └─ RemoteExchange[GATHER]
   │ Layout: [sum_4:double]
   │ Estimates: {rows: 5399990738 (45.26GB), cpu: 201.17G, memory: 45.26GB, network: 45.26GB}
   └─ Aggregate(PARTIAL)
   │ Layout: [sum_4:double]
   │ Estimates: {rows: 5399990738 (45.26GB), cpu: 201.17G, memory: 45.26GB, network: 0B}
   │ sum_4 := sum(expr)
   └─ ScanProject[table = hive:tpch_flat_orc_date_1000:lineitem offload={ filter=[AND(AND(BETWEEN(l_discount, 0.05, 0.07), LESS_THAN(l_quantity, 25.0)), AND(GREATER_THAN_OR_EQUAL(l_shipdate, 8401), LESS_THAN(l_shipdate, 8766)))]} ]
    Layout: [expr:double]
    Estimates: {rows: 5999989709 (50.29GB), cpu: 100.58G, memory: 0B, network: 0B}/{rows: 5999989709 (50.29GB), cpu: 150.87G, memory: 0B, network: 0B}
    expr := (l_extendedprice) * (l_discount)
    l_extendedprice := l_extendedprice:double:5:REGULAR
    l_discount := l_discount:double:6:REGULAR

2. 执行sql6。

   1 2 3 4 5 6 7 8 9

   select sum(l_extendedprice * l_discount) as revenue from tpch_flat_orc_1000.lineitem where l_shipdate >= '1993-01-01' and l_shipdate < '1994-01-01' and l_discount between 0.06 - 0.01 and 0.06 + 0.01 and l_quantity < 25;

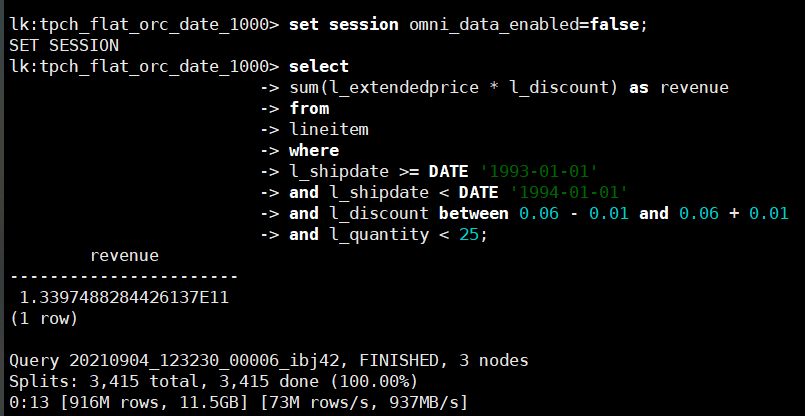

   • 下推特性关闭时，执行时间13s。

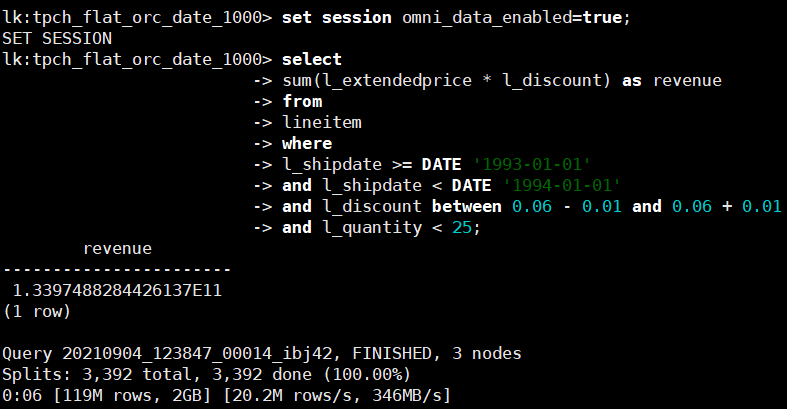

   • 下推特性开启时，执行时间6s。



   执行任务时会打印下推的信息，如下所示，包含了下推的选择率以及算子信息。

   2021-09-04T20:39:50.803+0800 INFO Query-20210904_123950_00015_ibj42-1839 io.prestosql.plugin.hive.rule.HiveFilterPushdown Offloading: table lineitem, size[5999989709], predicate[AND(AND(BETWEEN(l_discount, 0.05, 0.07), LESS_THAN(l_quantity, 25.0)), AND(GREATER_THAN_OR_EQUAL(l_shipdate, 8401), LESS_THAN(l_shipdate, 8766)))], filter factor[90.00%].
    2021-09-04T20:39:53.415+0800 INFO dispatcher-query-17 io.prestosql.event.QueryMonitor TIMELINE: Query 20210904_123950_00015_ibj42 :: Transaction:[9b817dfa-xxxx-xxxx-xxxx-xxxxxbb805ea] :: elapsed 2636ms :: planning 43ms :: waiting 3ms :: scheduling 27ms :: running 2436ms :: finishing 130ms :: begin 2021-09-04T20:39:50.768+08:00 :: end 2021-09-04T20:39:53.404+08:00
