OmniShuffle Shuffle加速特性使用

执行Spark引擎业务

1. 在“/home”目录下新建“ock_spark.conf”文件，关于ock_spark.conf文件中的参数说明请参考spark.conf。
   1. 新建文件。

      vim /home/ock_spark.conf

   2. 按“i”进入编辑模式，在文件中添加如下内容。

      spark.master yarn
      spark.task.cpus 1
      spark.shuffle.compress true
      spark.shuffle.spill.compress true
      spark.rdd.compress true
      spark.executor.extraClassPath     /opt/ock/jars/*
      spark.driver.extraClassPath       /opt/ock/jars/*
      spark.driver.extraJavaOptions -Djava.library.path=/opt/ock/ucache/23.0.0/linux-aarch64/lib/common:/opt/ock/ucache/23.0.0/linux-aarch64/lib/common/ucx:/opt/ock/ucache/23.0.0/linux-aarch64/lib/common/ucx/ucx:/opt/ock/ucache/23.0.0/linux-aarch64/lib/datakit:/opt/ock/ucache/23.0.0/linux-aarch64/lib/mf:/opt/ock/jars
      spark.executor.extraJavaOptions -Djava.library.path=/opt/ock/ucache/23.0.0/linux-aarch64/lib/common:/opt/ock/ucache/23.0.0/linux-aarch64/lib/common/ucx:/opt/ock/ucache/23.0.0/linux-aarch64/lib/common/ucx/ucx:/opt/ock/ucache/23.0.0/linux-aarch64/lib/datakit:/opt/ock/ucache/23.0.0/linux-aarch64/lib/mf:/opt/ock/jars
      spark.driver.extraLibraryPath   /opt/ock/ucache/23.0.0/linux-aarch64/lib/common:/opt/ock/ucache/23.0.0/linux-aarch64/lib/common/ucx:/opt/ock/ucache/23.0.0/linux-aarch64/lib/common/ucx/ucx:/opt/ock/ucache/23.0.0/linux-aarch64/lib/datakit:/opt/ock/ucache/23.0.0/linux-aarch64/lib/mf:/opt/ock/jars:.
      spark.executor.extraLibraryPath /opt/ock/ucache/23.0.0/linux-aarch64/lib/common:/opt/ock/ucache/23.0.0/linux-aarch64/lib/common/ucx:/opt/ock/ucache/23.0.0/linux-aarch64/lib/common/ucx/ucx:/opt/ock/ucache/23.0.0/linux-aarch64/lib/datakit:/opt/ock/ucache/23.0.0/linux-aarch64/lib/mf:/opt/ock/jars:.
      spark.shuffle.manager              org.apache.spark.shuffle.ock.OCKShuffleManager
      spark.shuffle.ock.manager true
      spark.blacklist.enabled true
      spark.files.fetchFailure.unRegisterOutputOnHost true
      spark.shuffle.service.enabled  false
      spark.blacklist.application.fetchFailure.enabled true
      spark.hadoop.mapreduce.fileoutputcommitter.algorithm.version 2
      spark.driver.maxResultSize 2g
      spark.serializer                        org.apache.spark.serializer.KryoSerializer
      spark.executorEnv.OCK_HOME /opt/ock
      spark.executorEnv.UCX_USE_MT_MUTEX y
      spark.executorEnv.UCX_TLS  tcp
      spark.sql.broadcastTimeout 3000
      spark.sql.ock.autoConfig.enabled true
      spark.sql.ock.autoConfig.history true
      spark.sql.ock.autoConfig.globalRuntimePartition false
      spark.sql.ock.autoConfig.sample false

   3. 按“Esc”键，输入:wq!，按“Enter”保存并退出编辑。
2. 启动Spark-SQL命令行窗口。

   原生Spark-SQL启动命令示例如下，可根据实际情况对配置项取值进行调整之类。

   /usr/local/spark/bin/spark-sql --deploy-mode client --driver-cores 8 --driver-memory 40g --num-executors 30 --executor-cores 6 --executor-memory 35g --master yarn --conf spark.task.cpus=1 --conf spark.default.parallelism=600 --conf spark.sql.broadcastTimeout=500 --conf spark.sql.shuffle.partitions=600 --conf spark.sql.adaptive.enabled=true --database tpcds_bin_partitioned_orc_3

   SparkExtension插件启动命令如下。

   spark-sql --deploy-mode client --driver-cores 8 \
                                  --driver-memory 40G \
                                  --num-executors 24 \
                                  --executor-cores 12 \
                                  --executor-memory 25g \
                                  --master yarn \
                                  --conf spark.sql.codegen.wholeStage=false \
                                  --jars /opt/ock/jars/* \
                                  --properties-file /home/ock_spark.conf \
                                  --database tpcds_bin_partitioned_orc_3

3. 查看OmniShuffle Shuffle加速是否生效。

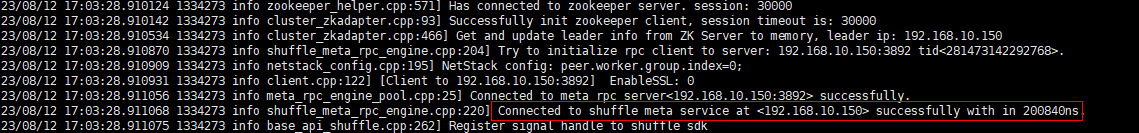

   启动命令执行后出现Connected to meta rpc server<192.168.10.150:3892> successfully则生效。
