Kunpeng Motherboards and Servers-Kunpeng Community

Product Overview

Powered by Kunpeng processors, Kunpeng server motherboards excel in data centers with their multi-core design, ultra-large memory bandwidth, and support for PCIe 4.0 and 100GE networks.

With built-in BMC chips and BIOS software, Kunpeng server motherboards are compatible with industry-standard DIMMs, drives, NICs, and OSs.

Kunpeng server motherboard interface specifications and device management specifications are open to help partners customize in-house server products.

Eight Standards Open for Sharing Huawei's Server Capabilities

Server Architecture Standards

Standards for the Kunpeng computing architecture, evolution, competitiveness, and service scenarios

Motherboard Hardware Standards

Standards for specifications, dimensions, installation, and ports

Component Standards

Standards for FlexIO cards, fan boards, riser cards, mounting ears, drive backplanes, and power supply

Chassis Standards

Standards for server design reliability, display-to-body ratio, power supply and distribution, and safety design, as well as standards for structure, dimensions, and installation ports

BMC Standards

Standards for BMC functions, security, ports, component management ports, power management ports, and manageability

BIOS Standards

Standards for BIOS functions, hardware component adaptation, software interfaces, RAS, security, and energy saving management

Evaluation Standards

Standards for energy efficiency evaluation, test tools, and component compatibility

O&M Standards

Standards for O&M

Product Specifications

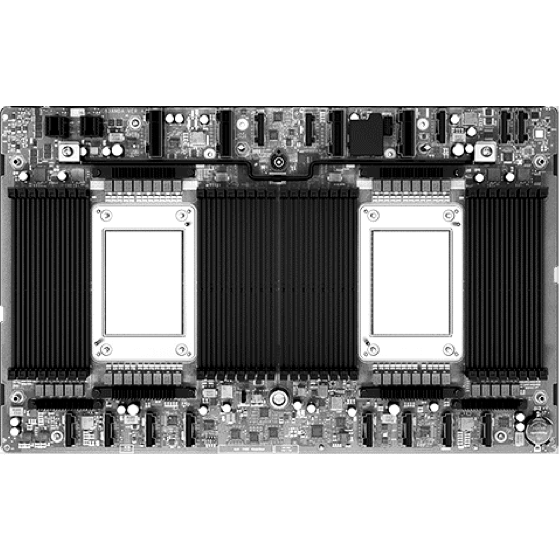

S920X05

Form

2-socket Kunpeng server motherboard

CPU

2 x Kunpeng 920, 48-core/64-core, 2.6 GHz

Memory

Up to 32 DDR4 DIMM slots

External interfaces

One FlexIO card, providing 4 x GE electrical interfaces, 2 x 10GE/25GE optical interfaces, or 1 x 100GE optical interface Four USB 3.0 interfaces and two VGA (DB15) interfaces One RJ45 serial port and one RJ45 system management network port

PCIe

Up to nine PCIe 4.0 slots: one PCIe slot dedicated for a screw-in RAID controller card or an OCP card and eight standard PCIe slots

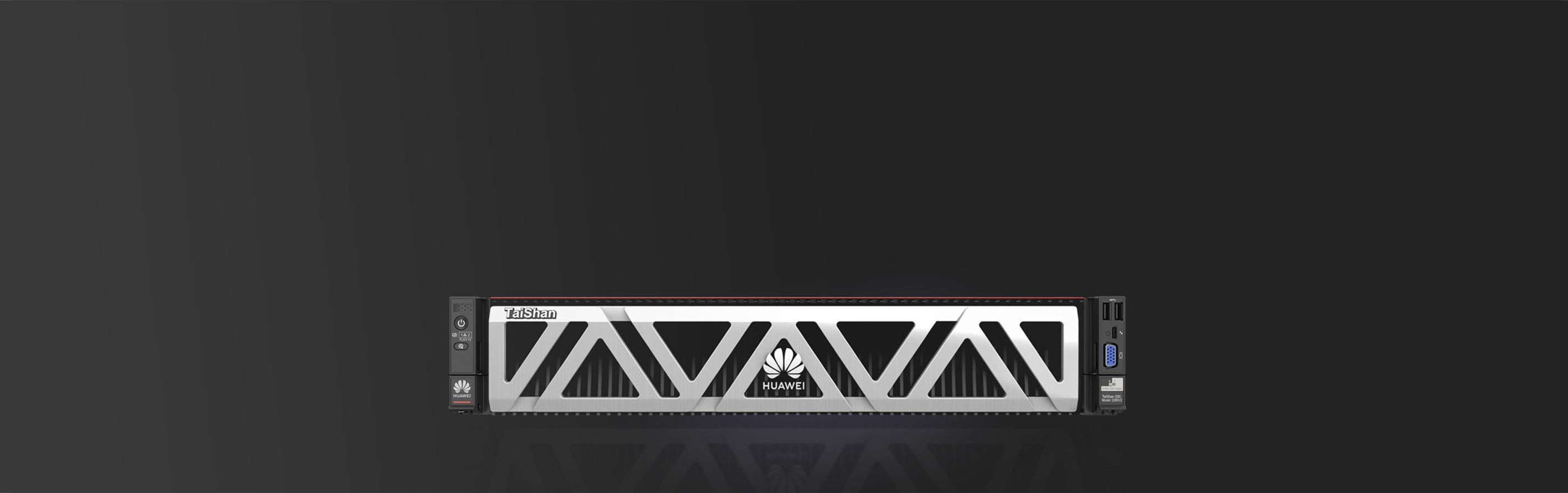

TaiShan Servers Offered as a Benchmark for Kunpeng Computing

Energy-efficient ComputingMulti-core Kunpeng processors Distributed architecture for efficient acceleration and high-concurrency I/O applications

Robust Security and ReliabilityIn-house developed chips covering computing, storage, network, management, and AI Rock-solid servers built on extensive computing engineering experience

Open EcosystemAn open computing platform compatible with mainstream hardware and software Building a new computing ecosystem with Kunpeng for shared success
