Obtaining the Remote Attestation Report

This section describes how to obtain the remote attestation report in a cVM.

1. Modify the configuration file of the cVM to include the configuration options required for remote attestation:

   <launchSecurity type='cca' hisi-cca-enable='yes'>
       <measurement-algo>sha256</measurement-algo>
       <personalization-value>lmrZvioYuJWTFN/ue5wAKSS70X4MPS+r3lBibrh1pixZyPAcduru93YOyXsFcnqH4+qM4kkjxwaPVYrm/Yj2fA==</personalization-value>
   </launchSecurity>



   • measurement-algo specifies the hash algorithm used for remote attestation measurement. Currently, sha256 and sha512 are supported.
   • personalization-value specifies the personalization value of a confidential VM. The value must be a Base64-encoded string derived from a 64-byte binary stream. This configuration is optional; if omitted, the Realm Personalization Value (RPV) defaults to all zeros.
2. After the cVM boots up, load the CCA drivers inside the VM.

   modprobe tsm
   modprobe arm-cca-guest

3. Mount configfs.

   mount -t configfs none /sys/kernel/config

4. Obtain the remote attestation report.
   1. Create a directory for the remote attestation instance.

      report=/sys/kernel/config/tsm/report/report0
      mkdir $report

   2. Enter a randomly generated 64-byte remote attestation challenge value.

      dd if=/dev/urandom bs=64 count=1 > $report/inblob

   3. Read the outblob file to obtain the remote attestation report.

      hexdump -C $report/outblob

   4. Read the auxblob file to obtain the device certificate.

      hexdump -C $report/auxblob

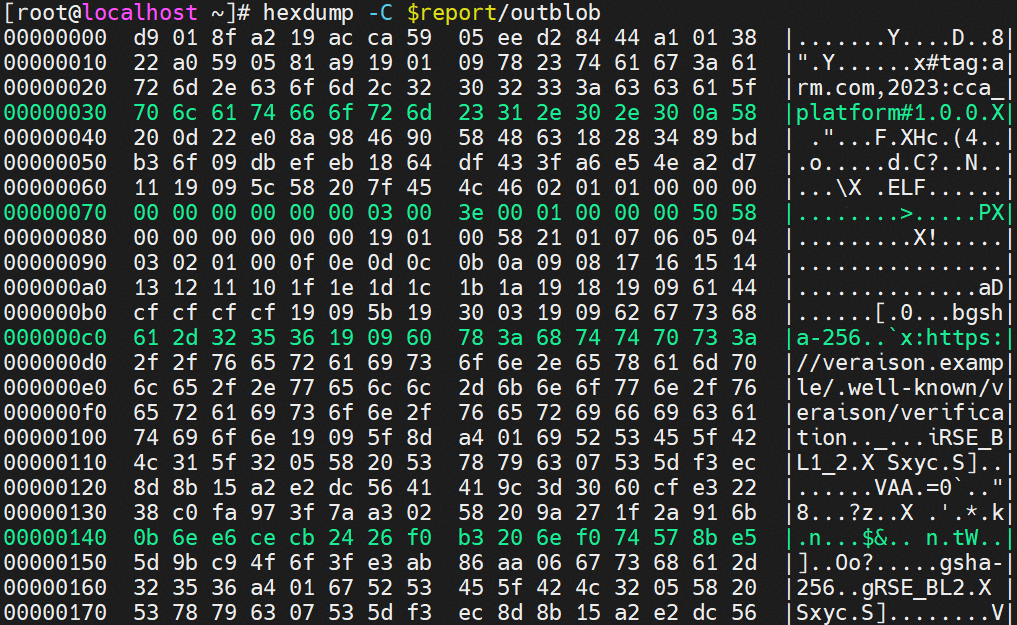

      Figure 1 Obtaining the remote attestation report

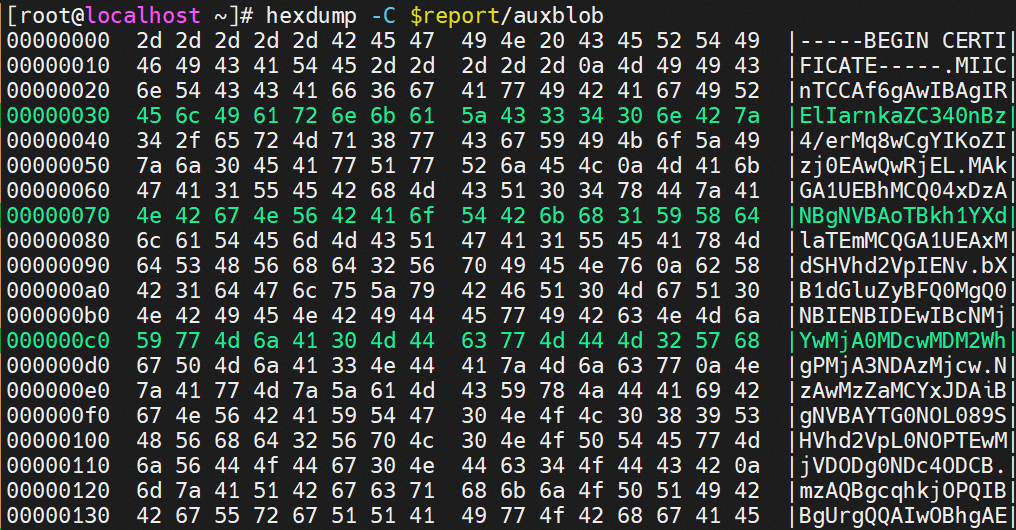

      Figure 2 Obtaining the device certificate
