all

Collects complete server information and provides diagnosis and tuning suggestions.

Data collection supports BMC mode (login required), iBMA mode, and BMC-skipping mode. When ipmitool is used for data collection, the report will not include information from modules that strongly depend on the BMC.
iBMA mode is available only for the root user. This mode cannot be used to obtain SEL logs or UnifiedBus BMC information.
The iBMA version must be 2.11.0 or later. For details about how to download and install iBMA, see iBMA 2.0 User Guide.


           ./kspect all [-h]

**Table 1** Parameters of the **all** command
Parameter	Description
None	Displays complete system information, including all hardware and software information. NOTE: The collection report is saved in the Tool_installation_path/output/kspect-YYYYMMDD-HHMMSS directory and the file name is kspect-YYYYMMDD-HHMMSS.json.
-h/--help	Obtains help information.

Collects complete information and skips BMC configuration.


            ./kspect -l 0 -s all

The tool provides the complete server information in multiple file formats (HTML, JSON, and CSV) and dmesg logs.
In the report, the information in red is ERROR, the information in orange is WARNING, and the information in blue is INFO.
A report displays only key information about each module. For detailed information, see the JSON or CSV file.

Diagnosis information and tuning suggestions can be generated only when complete data is collected. Table 2 lists the modules that support diagnosis.

**Table 2** Modules that support diagnosis/tuning
Module	Type	Diagnosis/Tuning
System	Host Product Baseboard	Diagnosis suggestions
OS	OS Kernel OS Boot Parameters SELinux	Tuning suggestions
BIOS	BIOS BIOS detail Info	Diagnosis and tuning suggestions
software	Software Version KVM Info KVM Table Docker Info Docker Table	Tuning suggestions
CPU	CPU CPU Table	Diagnosis and tuning suggestions
NUMA	NUMA Memory Table NUMA PCIe Table	Tuning suggestions
Memory	OS Memory Info DIMM Table	Diagnosis and tuning suggestions
Network	Network Table Network IRQ Table Hardware Interrupt Info Table NIC Perf Metrics Table Network System Info Table Route Table\ARP Table	Diagnosis and tuning suggestions
Storage	Disk Table Filesystem Table Smart Health Table IO Stat Table Physical Storage Table RAID Info Table	Diagnosis and tuning suggestions
PCIe	PCIe Table	Diagnosis suggestions
BMC	BMC Temperature Table Power Table Fans Table	Diagnosis suggestions
UB	UBSE Info UBSVirt Info	Diagnosis suggestions for DP Pod Status, DP Privileged, and Start Status.

The following examples show diagnosis and tuning suggestions for cases where some configurations are abnormal or could be optimized.

For VMs whose CPUs are not bound to the same NUMA node, an example configuration is provided below. If a vDPA device is deployed on a VM, the tool checks whether the device and the CPU belong to the same NUMA node.

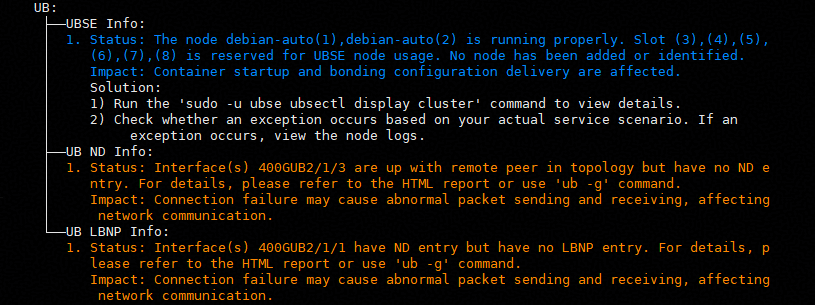

The tool diagnoses the container status and start status of UnifiedBus information, and provides corresponding diagnosis suggestions.
The tool diagnoses RAID controller configurations and provides tuning suggestions.
The tool diagnoses CPU die interleaving.

Figure 1 HTML file

An HTML report can be viewed using a browser. It contains all data collected by commands and provides legends of illustrating the current memory insertion status and recommended insertion method.

All the collected data is displayed in the lower part of the report. The data is displayed in tables on different tab pages based on the data types.

**Table 3** HTML file information
Area	Tab	Information Overview
①	-	Server configuration legends and memory insertion status. When you click a legend, the corresponding data is automatically displayed in the table below.
②	-	Diagnosis information and tuning parameter suggestions.
③	Basic Information	Basic information about server hardware and software, such as host, software, and container information.
	NUMA	Basic NUMA information and NUMA bus information.
	BIOS	Basic BIOS information and collected BIOS setting details.
	CPU	Basic CPU information and parameters of all CPU cores.
	DIMMs	Basic memory information and DIMM details.
	Network	Basic network information, NIC information, and interruption information.
	Storage Information	Information about drives, file systems, and physical partitions.
	BMC	Server temperature, power supply information, and fan information.
	PCIe Topology	PCIe device information, which is displayed in a topology.
	Kernel	Server OS kernel information.
	UnifiedBus	UnifiedBus information.
④	-	Switches between Chinese and English.
